5601159 - Snapper Pro Grass Collection System Kit for W15 Grass Catcher Kit - 5601159 Parts Diagram

Grass Collection System Kit for W15

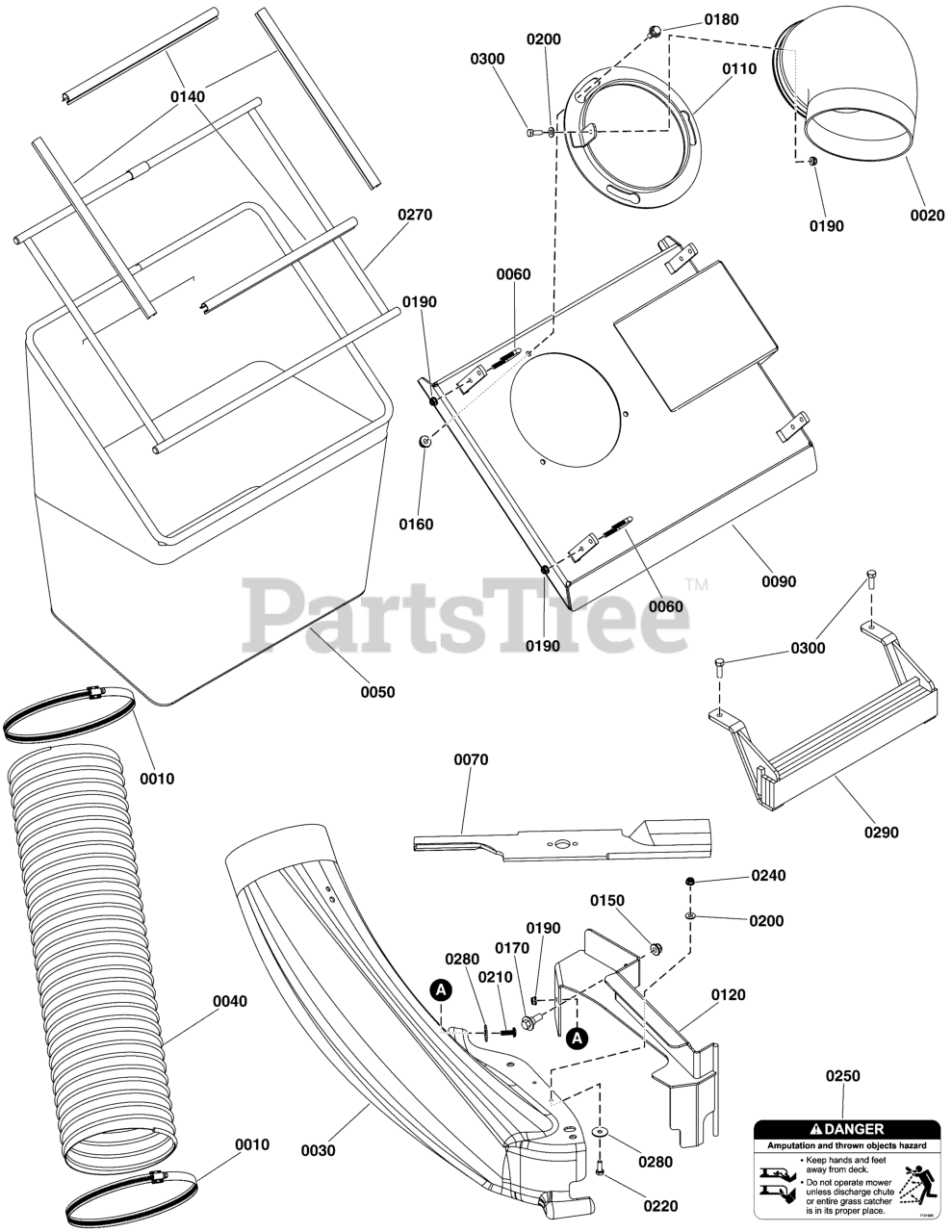

Grass Catcher Kit - 5601159 Parts Diagram

  • Title

0010

Snapper Pro 5108144

CLAMP, WORMGEAR
(Superseded to 5108144FS)

$9.99

$

Usually ships in 2-12 days

0

0020

Snapper Pro 5108231

ELBOW, 90, 7" INLET
(Superseded to 5108231FS)

$157.99

$

Usually ships in 2-12 days

0

0030

Snapper Pro 5419716

BOOT, FW15
(Superseded to 5419716FS)

$326.99

$

Usually ships in 2-12 days

0

0040

Snapper Pro 5108040

HOSE, FLEX, 7" DIA X 27
(Superseded to 5108040FS)

$139.99

$

Usually ships in 2-12 days

0

0050

Snapper Pro 5108025

CATCHER BAG, FW15
(Superseded to 5108025FS)

$148.99

$

Usually ships in 2-12 days

0

0060

Snapper Pro 5108013

U-BOLT, 1/4-20 X 1
(Superseded to 5108013FS)

$8.99

$

Usually ships in 2-12 days

0

0070

Snapper Pro 5108135

BLADE, 16.25, HIGH LIFT
(Superseded to 5108135FS)

$28.99

$

In Stock, only 1 left!

0

0090

Snapper Pro 5419414AA

WELD, REAR BAGGER, FW15 - BLK
(Superseded to 5419414AAFS)

$355.99

$

Usually ships in 2-12 days

0

0110

Snapper Pro 5419663AA

WELD, ELBOW MOUNT, FW15 - BLK
(Superseded to 5419663AAFS)

$124.99

$

Usually ships in 2-12 days

0

0120

Snapper Pro 5419664AA

WELD, BOOT MOUNT, FW15 - BLK
(Superseded to 5419664AAFS)

$174.99

$

Usually ships in 2-12 days

0

0140

Snapper Pro 1675707

TUBE CLIP, Grass Bag
(Superseded to 1675707SM)

$6.49

$

In Stock, only 4 left!

0

0150

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, only 4 left!

0

0160

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

0170

Snapper Pro 720097

BOLT, 3/8-16 Shoulder, GR 2
(Superseded to 009X51MA)

$4.99

$

In Stock, Qty 10

0

0180

Snapper Pro 1752802

BOLT, Shoulder, 5/16-18 x 1
(Superseded to 1752802YP)

$5.99

$

Usually ships in 2-12 days

0

0190

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

0200

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

0210

SCREW-TRUSS HD TORX DR 1/4-20X0.750 ZC/C

$

$

Not available

0220

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4" ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

0240

Snapper Pro 5025271

NUT, Hex, Nylon Lock, #10-24
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

0250

Snapper Pro 7101665

DECAL, DANGER DO NOT OPERATE W/O DEFLECT
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

0270

Snapper Pro 5419738AA

WELD, MOUNT, BAG, FW15 - BLK
(Superseded to 5419738AAFS)

$136.99

$

Usually ships in 2-12 days

0

0280

Snapper Pro 5025288

WASHER, 1/4" Fender
(Superseded to 5025288YP)

$3.99

$

In Stock, Qty 5

0

0290

Snapper Pro 5419766AA

WELD, WEIGHT, FW15 BAGGER
(Superseded to 5419766AAFS)

Note: (Models with rigid casters only.)

$154.99

$

Usually ships in 2-12 days

0

0300

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0
