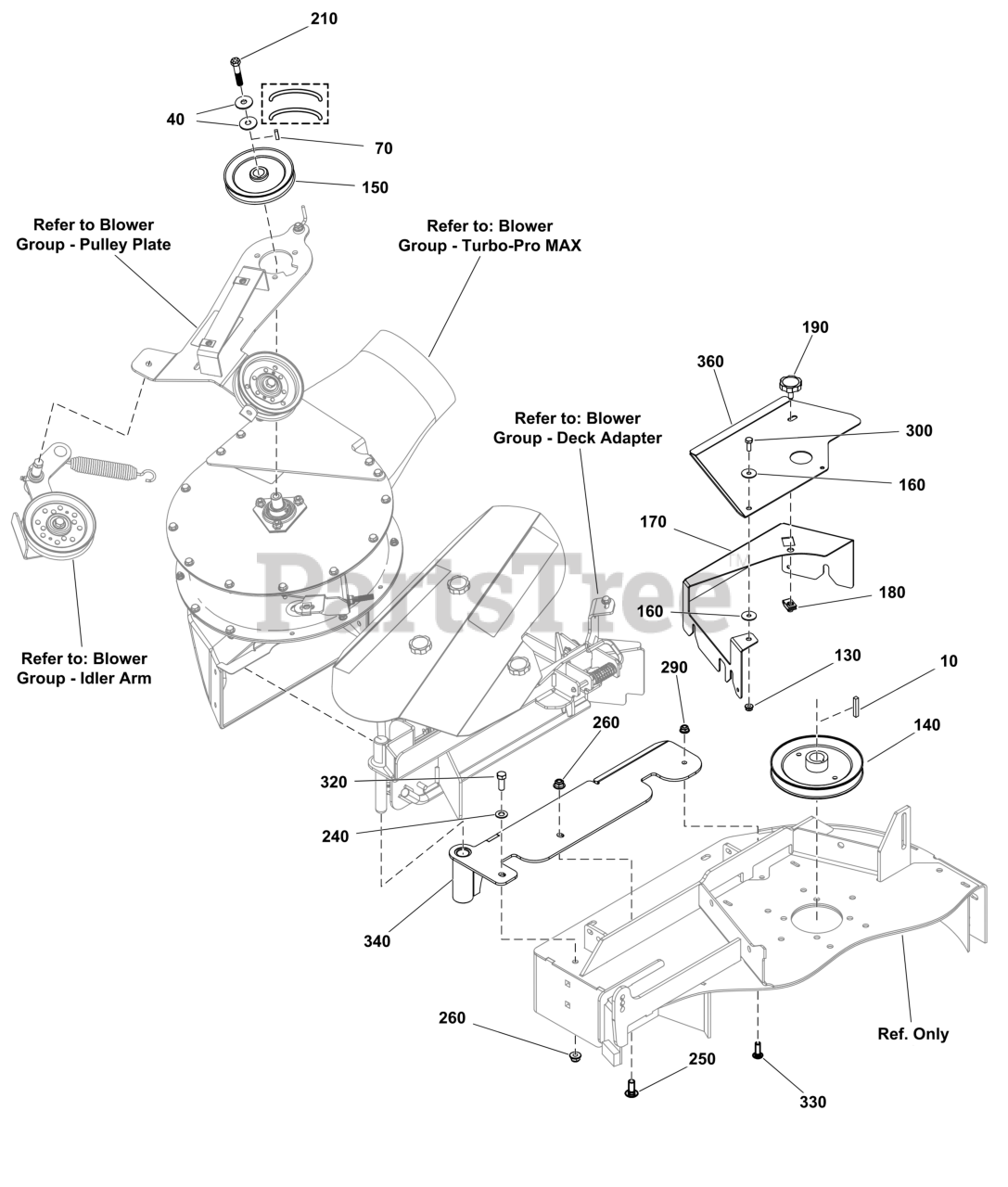

5601420 - Ferris 60" iCD Turbo-Pro Max EZ Dump 12 cu. ft. Hopper for ISX2200 Blower Group - Guards, Pulleys, and Deck Mount Parts Diagram

60" iCD Turbo-Pro Max EZ Dump 12 cu. ft. Hopper for ISX2200

Blower Group - Guards, Pulleys, and Deck Mount Parts Diagram

  • Title

10

Ferris 5022726YP

KEY 1/4 SQ X 1 1/2

$5.49

$

In Stock, Qty 20+

0

40

Ferris 5106588FS

WASHER, BEVELED

$5.99

$

In Stock, only 2 left!

0

70

Ferris 5050403X4YP

KEY, SQUARE

$3.49

$

In Stock, only 2 left!

0

130

Ferris 5025391FS

NUT

$4.49

$

In Stock, Qty 20+

0

140

Ferris 5105334FS

PULLEY, Spindle

$75.99

$

Usually ships in 2-12 days

0

150

Ferris 5103836FS

PULLEY

$54.99

$

Usually ships in 2-12 days

0

160

Ferris 5025288YP

WASHER, 1/4 FENDER

$3.99

$

In Stock, Qty 11

0

170

Ferris 84008064

GUARD, Pulley

$54.99

$

Usually ships in 2-12 days

0

180

Ferris 5022308SM

BODY CLIP, 5/16-18 X

$5.99

$

In Stock, Qty 13

0

190

Ferris 5101731YP

KNOB, 5/616-18 X 1

$10.99

$

In Stock, Qty 18

0

210

Ferris 84008037

BOLT

Note: (Torque to pulley mounting bolt to: 50 ft-lbs (68 Nm))

$

$

Currently unavailable

240

Ferris 5025156FS

WASHER

$3.49

$

Usually ships in 2-12 days

0

250

Ferris 703814

BOLT, RD HD, 3/8-16X1

$4.49

$

In Stock, Qty 7

0

260

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 20+

0

290

Ferris 5025392FS

NUT
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

300

Ferris 5025010X6SM

BOLT, 1/4-20 X 3/4" G

$3.99

$

In Stock, Qty 7

0

320

Ferris 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, Qty 20+

0

330

Ferris 5025145X8SM

BOLT, 5/16-18 X 1", C

$3.99

$

In Stock, only 3 left!

0

340

Ferris 84008036

MOUNT

$202.99

$

Usually ships in 2-12 days

0

360

Ferris 84008065

SHIELD, Belt

$39.99

$

Usually ships in 2-12 days

0
