5602 - Paramount Trimmer, Battery TRIMMER ASSEMBLY Parts Diagram

Trimmer, Battery

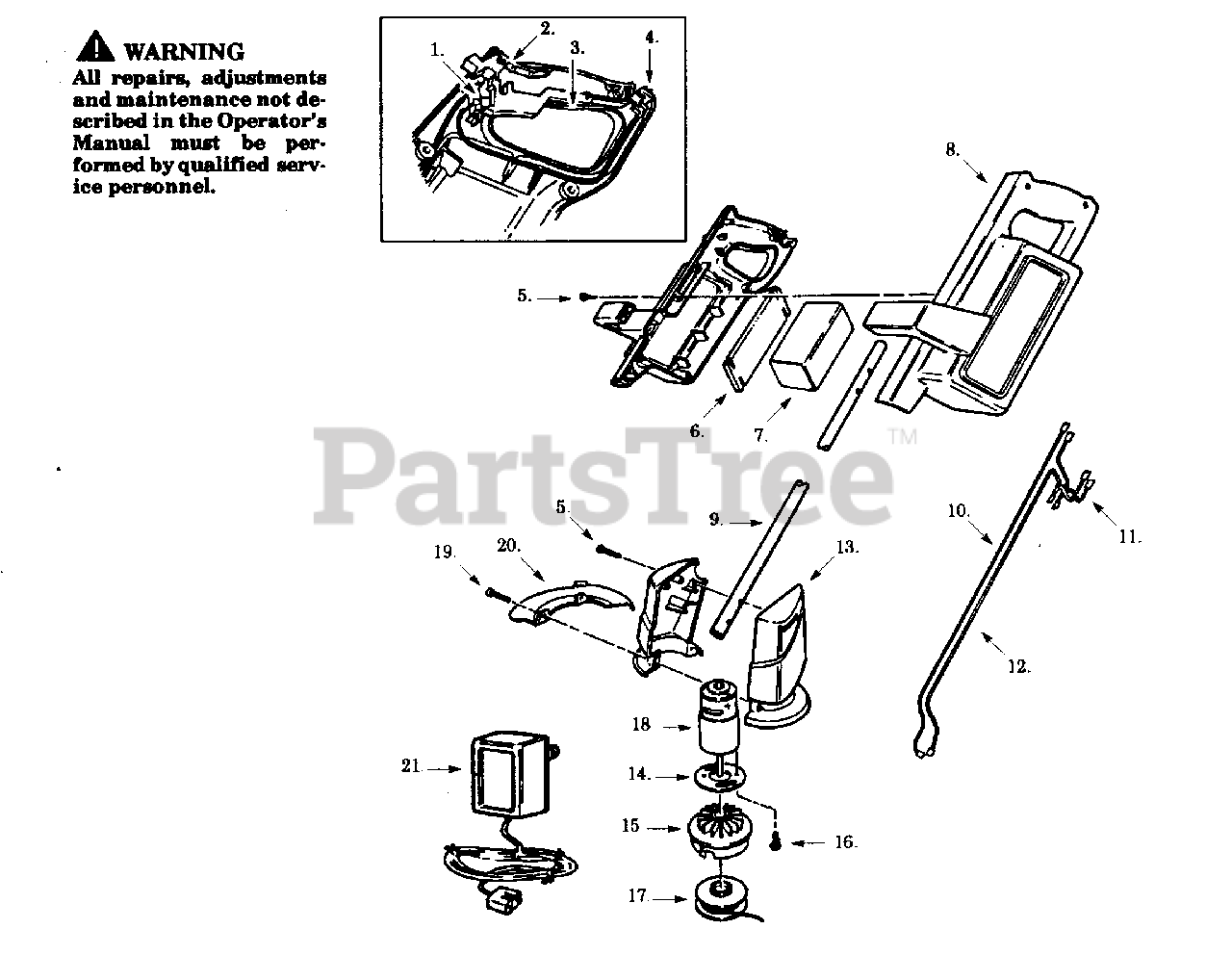

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534169300

Switch

$

$

Not available

2

Poulan 534162800

Release Button

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 534158200

Trigger

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534158500

Receptacle Ass'y.

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 534256700

Screw

$1.49

$

Usually ships in 3-10 days

0

6

Poulan 534157500

Foam Pad

$

$

Not available

7

Poulan 534158400

Battery

$

$

Not available

8

Poulan 534158106

Upper Hsg. Set

$

$

Not available

9

Poulan 534163800

Handle Tube

$

$

Not available

10

Poulan 534164000

Lead Wire (Red)

$

$

Not available

11

Poulan 534168900

Lead Wire (Black)

$

$

Not available

12

Poulan 534163900

Lead Wire (White)

$

$

Not available

13

Poulan 534194046

Motor Hsg. Set

$

$

Not available

14

Poulan 534162900

Motor Adapter

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 534264925

Rotating Head

$

$

Not available

16

Poulan 534183400

Screw

$

$

Not available

17

Poulan 534264805

Spool & Line

$18.99

$

Usually ships in 3-10 days

0

18

Poulan 534168000

Motor

$

$

Not available

19

Poulan 534222400

Screw

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 534261906

Foot Guard

$

$

Not available

21

Poulan 534168101

Battery Charger

$

$

Not available

22

Poulan 534881950

Operator Manual

Note: Not Shown.

$

$

Not available
