56020 - Toro 25" Premium Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1973) Engine And Differential Assembly (model 56020) Parts Diagram

25" Premium Rear-Engine Riding Mower

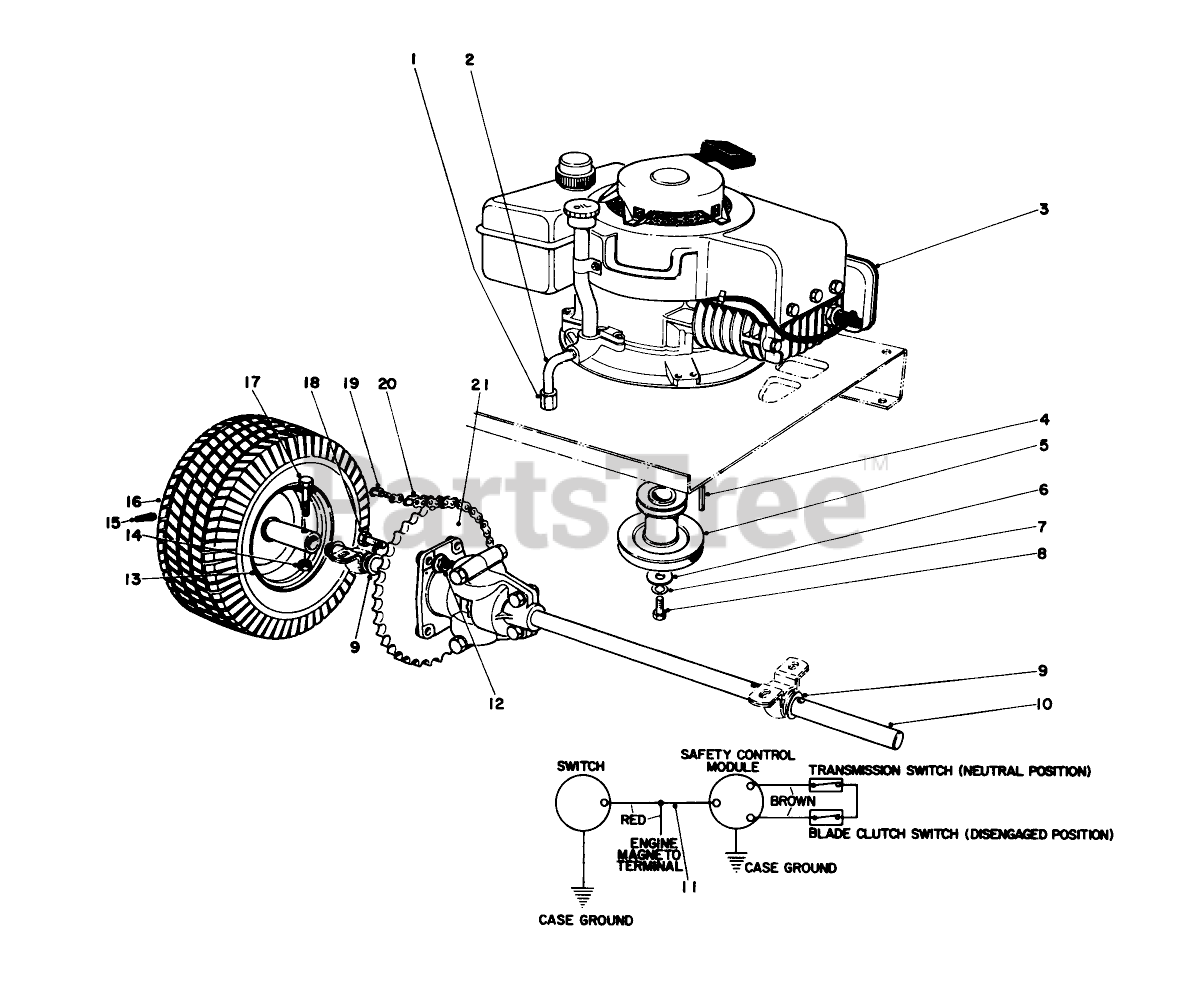

Engine And Differential Assembly (model 56020) Parts Diagram

  • Title

1

Toro 288-6

Hex Cap

$

$

Currently unavailable

2

Toro 19-2640

Elbow-Oil Drain

$

$

Currently unavailable

3

Toro 221-423

Engine

$

$

Currently unavailable

4

Toro 3-0971

KEY

$

$

Not available

5

Toro 17-9880

See Supercession: 47-5020
(Superseded to 47-5020)

$

$

Not available

6

Toro 3256-36

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

7

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

8

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

9

Toro 11-4930

DISCONTINUED

$

$

Not available

10

Toro 11-1800

DISCONTINUED

$

$

Not available

11

Toro 19-2580

Wiring Harness

$

$

Currently unavailable

12

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 5

0

13

Toro 241-110

DISCONTINUED

$

$

Not available

14

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, only 2 left!

0

15

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.99

$

In Stock, only 4 left!

0

16

Toro 231-81

See Supercession: 231-115
(Superseded to 231-115)

$112.99

$

Usually ships in 3-6 days

0

Toro 231-67

See Supercession: 231-115
(Superseded to 231-115)

Note: Not illustrated

$112.99

$

Usually ships in 3-6 days

0

17

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 2710-6

LINK-CONNECTING

$21.99

$

Usually ships in 3-6 days

0

20

Toro 17-1700

DISCONTINUED

$

$

Not available

21

Toro 12-3560

Sprocket

$

$

Currently unavailable
