56027 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) Engine And Differential Assembly Model No. 56022 Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

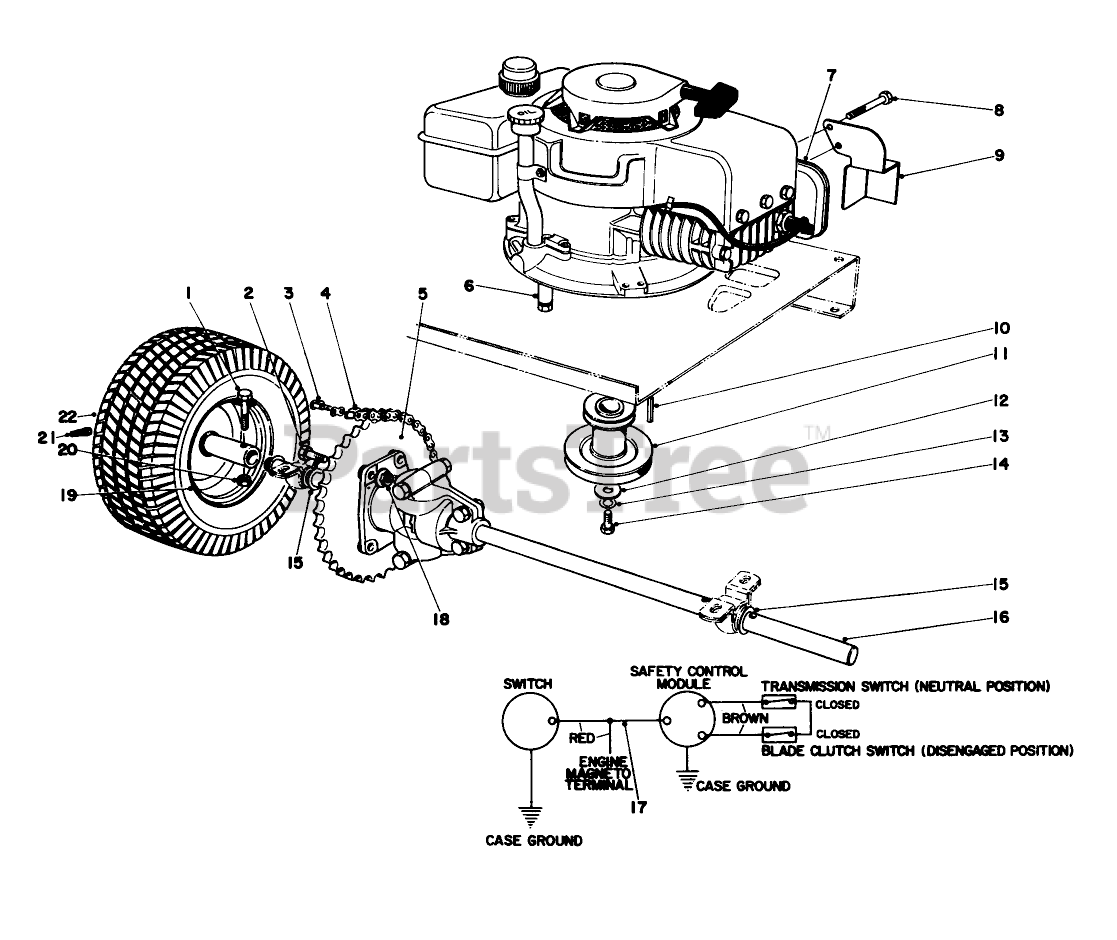

Engine And Differential Assembly Model No. 56022 Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 2710-6

LINK-CONNECTING

$21.99

$

Usually ships in 3-6 days

0

4

Toro 214990

Chain Roller

$

$

Currently unavailable

5

Toro 12-1940

DISCONTINUED

$

$

Not available

6

Toro 21-5780

DISCONTINUED

$

$

Not available

7

Toro 221423

Engine

$

$

Currently unavailable

8

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

9

Toro 25-2270

DISCONTINUED

$

$

Not available

10

Toro 3-0971

KEY

$

$

Not available

11

Toro 17-9880

See Supercession: 47-5020
(Superseded to 47-5020)

$

$

Not available

12

Toro 3256-36

See Supercession: 3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

13

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

14

Toro 32114

Screw

$

$

Currently unavailable

15

Toro 114930

DECAL-HOOD R.H.

$

$

Not available

16

Toro 11-1800

DISCONTINUED

$

$

Not available

17

Toro 214580

Wiring Harness
(Superseded to 146421)

$

$

Not available

18

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 5

0

19

Toro 241-110

DISCONTINUED

$

$

Not available

20

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, only 2 left!

0

21

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.99

$

In Stock, only 4 left!

0

22

Toro 231-81

See Supercession: 231-115
(Superseded to 231-115)

$112.99

$

Usually ships in 3-6 days

0

Toro 231-67

See Supercession: 231-115
(Superseded to 231-115)

Note: Not illustrated

$112.99

$

Usually ships in 3-6 days

0
