56030 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1973) BODY AND SEAT ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

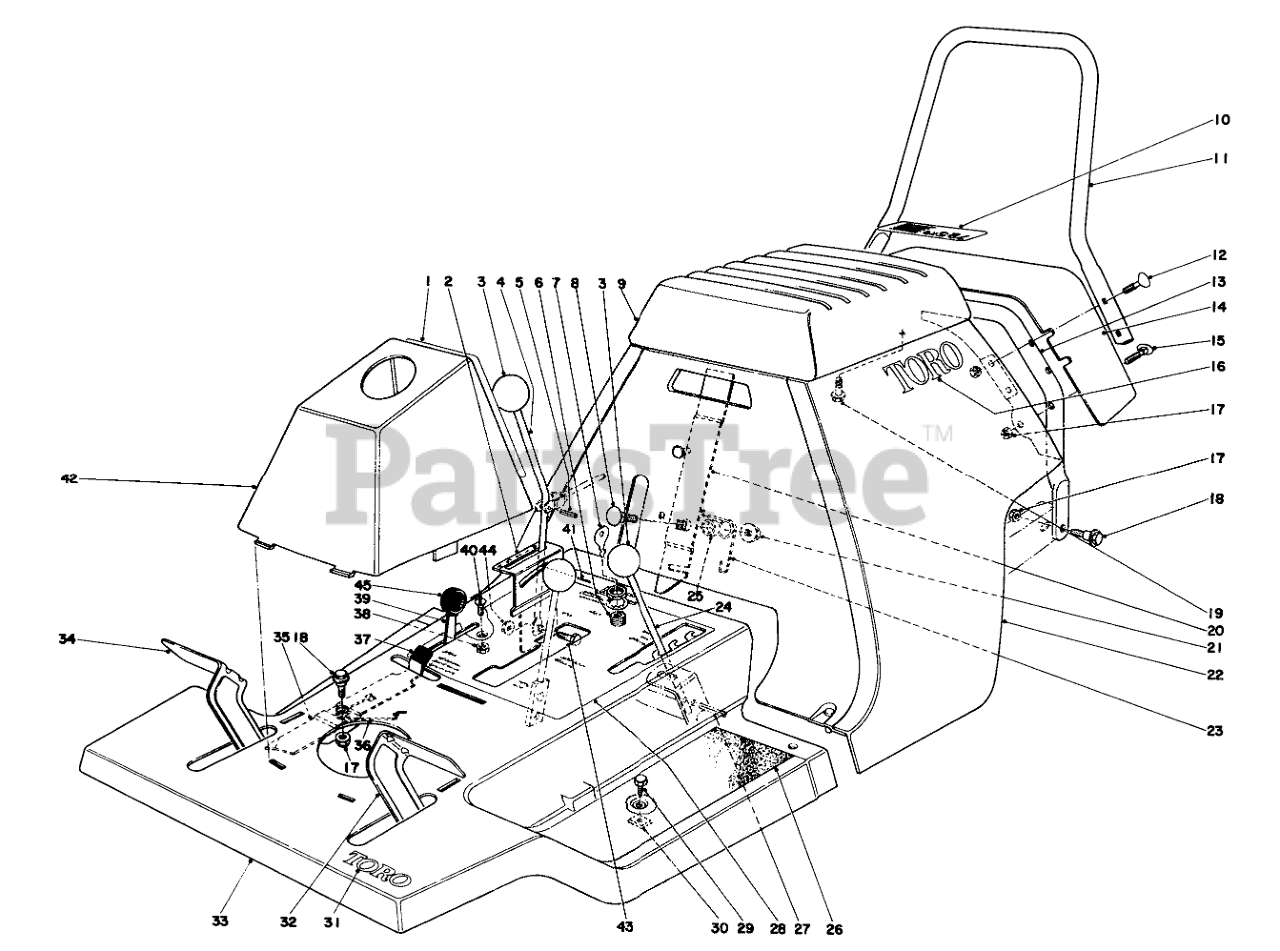

BODY AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 19-2020

Decal Tower

$

$

Not available

2

Toro 19-5590

Decal-Shift Pattern

$

$

Currently unavailable

3

Toro 233-22

KNOB-CONTROL

$22.99

$

Usually ships in 3-6 days

0

4

Toro 17-9620

Shift Rod

$

$

Not available

5

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

6

Toro 12-2820

STARTER SWITCH

$

$

Not available

7

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

8

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, only 1 left!

0

9

Toro 12-5760

Seat

$

$

Not available

10

Toro 19-5320

Decal-Rear Extension

$

$

Currently unavailable

11

Toro 18-8200

Handle Upper

$

$

Not available

12

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 8

0

13

Toro 17-9990

Handle Lower

$

$

Not available

14

Toro 18-8270

Extension-Rear Body

$

$

Currently unavailable

15

Toro 6-6330

HANDLE SCREW

$

$

Not available

16

Toro 12-9100

Decal
(Superseded to 20-4690)

$7.99

$

Usually ships in 3-6 days

0

17

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

18

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 7

0

19

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

20

Toro 19-2400

Handle Latch

$

$

Not available

21

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

22

Toro 19-2070

Rear Body

$

$

Not available

23

Toro 19-2390

Latch Return Spring

$

$

Not available

24

Toro 17-9630

Height of Cut Lever

$

$

Not available

25

Toro 19-2410

Spacer

$

$

Not available

26

Toro 19-1940

Foot Tread L.H.

$

$

Currently unavailable

Toro 19-1950

Foot Tread R.H.

Note: Not illustrated

$

$

Not available

27

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

28

Toro 19-5560

Decal-Panel Control

$

$

Currently unavailable

29

Toro 32104-110

SCREW-HH

$

$

Not available

30

Toro 3290-347

NUT-TINNERMAN

$6.49

$

Usually ships in 3-6 days

0

31

Toro 12-9140

DECAL

$

$

Currently unavailable

32

Toro 19-1860

Clutch Pedal

$

$

Not available

33

Toro 19-2460

Body-Front

$

$

Currently unavailable

34

Toro 19-1850

Brake Pedal

$

$

Not available

35

Toro 19-1610

Parking Brake
(Superseded to 19-1610-03)

$

$

Not available

36

Toro 19-1970

SPRING-PARKING BRAKE

$

$

Not available

37

Toro 19-2200

TIP-PARKING BRAKE

$

$

Not available

38

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

Usually ships in 3-6 days

0

39

Toro 19-2150

Throttle Control

$

$

Not available

40

Toro 32108-96

10-24X 1/2 PHILLIPS SCR

$

$

Currently unavailable

41

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

42

Toro 12-6290

Tower
(Superseded to 55-7103)

$

$

Not available

43

Toro 3-2472

Shoulder Bolt

$

$

Currently unavailable

44

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

45

Toro 233-35

KNOB

$9.49

$

Usually ships in 3-6 days

0

Toro 19-5350

Loose Parts Kit

Note: Not illustrated

$

$

Currently unavailable

Toro 7-6580

Battery Charger
(Superseded to 44-7250)

Note: Not illustrated

$160.99

$

Usually ships in 3-6 days

0
