56033 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) 12 VOLT ELECTRIC STARTER NO.33606 Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

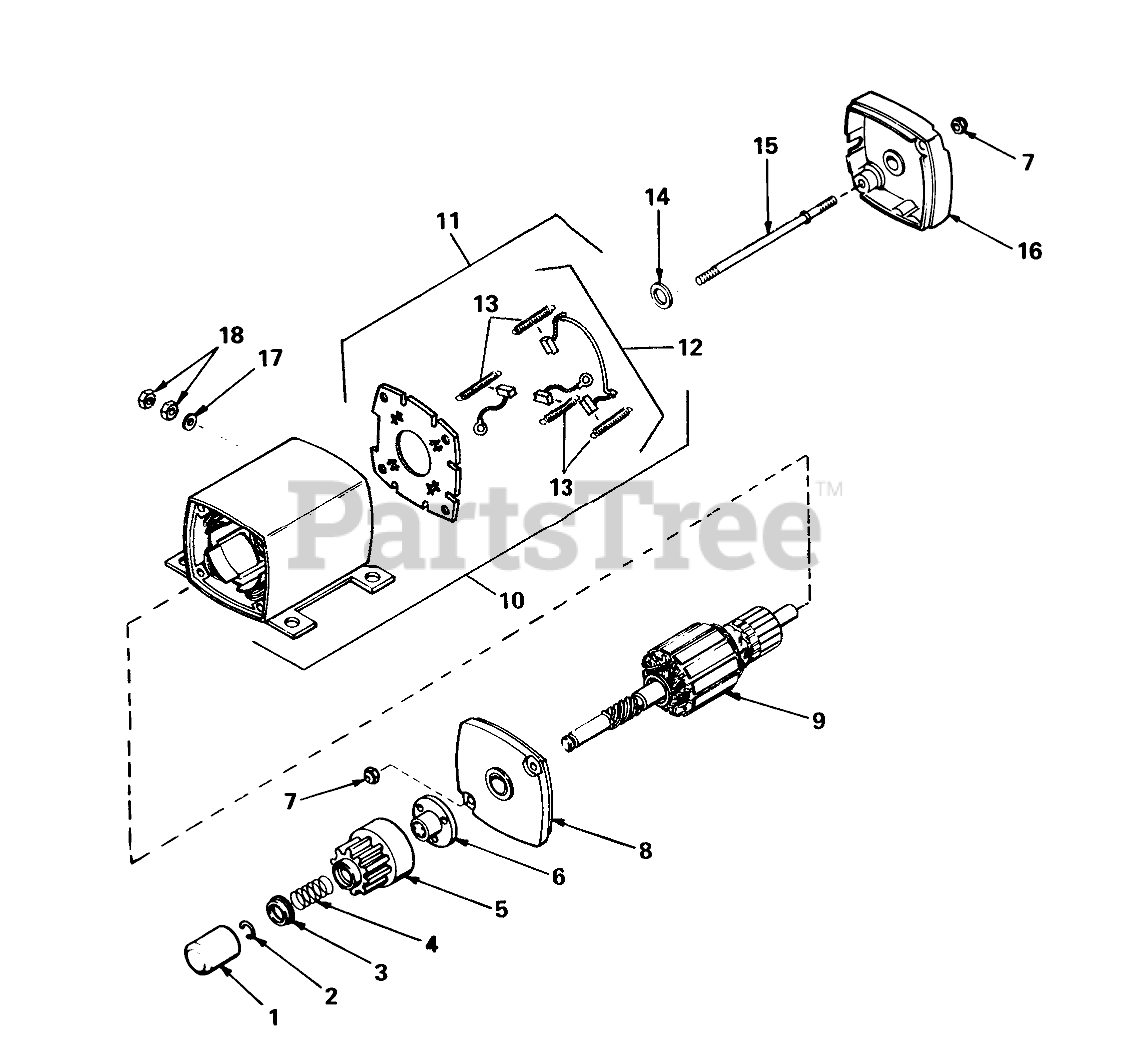

12 VOLT ELECTRIC STARTER NO.33606 Parts Diagram

  • Title

1

Tecumseh 33451

Cover-Dust

$3.49

$

In Stock, Qty 5

0

2

Tecumseh 33429

Ring, Retainer
(Superseded to 33842)

$3.99

$

In Stock, Qty 6

0

3

Tecumseh 33430

Retainer-Spring
(Superseded to 33843)

$7.99

$

In Stock, only 1 left!

0

4

Tecumseh 33431

Spring-Anti Drift

$3.99

$

Usually ships in 3-12 days

0

5

Tecumseh 33432

Gear

$40.99

$

Usually ships in 3-12 days

0

6

Tecumseh 33433

Nut-Engaging
(Superseded to 33433A)

$19.99

$

Usually ships in 3-12 days

0

7

Tecumseh 33450

Nut-Lock
(Superseded to 651016)

$1.99

$

Usually ships in 3-12 days

0

8

Tecumseh 33434

Cap Assy., Drive End

$37.99

$

Usually ships in 3-12 days

0

9

Tecumseh 33703

Armature

$

$

Not available

10

Tecumseh 33704

Housing Assembly (Incl. Ref. #11)
(Superseded to 35765A)

$212.99

$

Usually ships in 3-12 days

0

11

Tecumseh 33712

Card Assembly, Brush (Incl. Ref. #12)

$71.99

$

Usually ships in 3-12 days

0

12

Tecumseh 33705

Brush & Spring Kit (Incl. 4 pcs. of #13)
(Superseded to 33849)

$61.99

$

In Stock, only 1 left!

0

13

Tecumseh 33440

1545D SUP TO W/3256

$3.99

$

Usually ships in 3-12 days

0

14

Tecumseh 590500

Washer-Thrust

$1.99

$

In Stock, only 2 left!

0

15

Tecumseh 33449

Bolt

$5.99

$

Usually ships in 3-12 days

0

16

Tecumseh 33706

2035A67 WIZARD W/34

$48.99

$

In Stock, only 1 left!

0

17

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

18

Tecumseh 28710

61710/VAR.HILLER AT
(Superseded to 650864)

$1.99

$

In Stock, only 2 left!

0
