56033 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1975) ENGINE AND AXLE ASSEMBLY Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

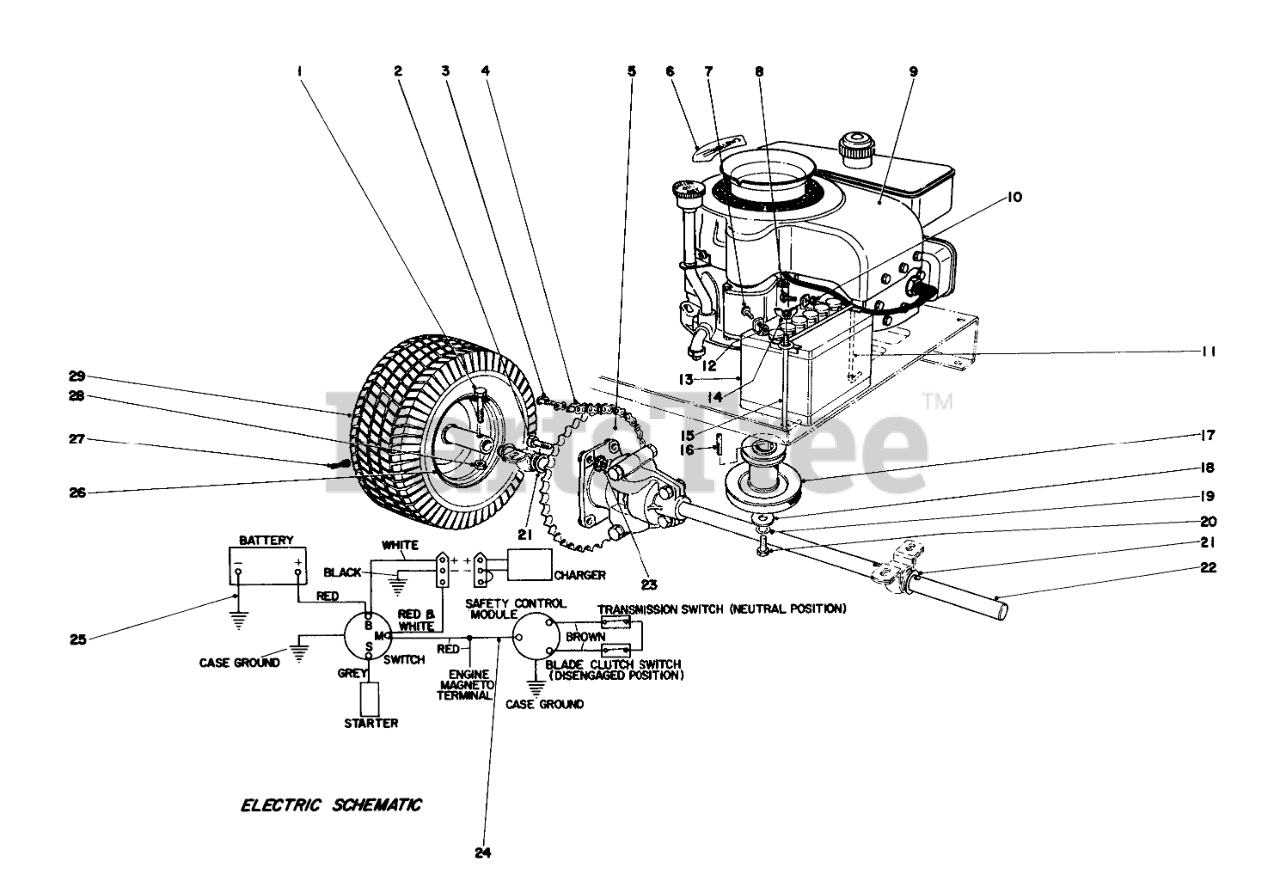

ENGINE AND AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

4

Toro 21-4990

Roller Chain

$

$

Not available

5

Toro 12-1940

Sprocket

$

$

Not available

6

Toro 20-8270

Decal

$

$

Currently unavailable

7

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 221450

Engine

$

$

Currently unavailable

10

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

11

Toro 12-5700

Battery Clamp

$

$

Not available

12

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

13

Toro 239-15

Battery
(Superseded to 26-7290)

$

$

Not available

14

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

15

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0

16

Toro 3-0971

KEY

$

$

Not available

17

Toro 17-9880

Pulley
(Superseded to 47-5020)

$216.99

$

Usually ships in 3-6 days

0

18

Toro 3256-36

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

19

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

20

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

21

Toro 11-4930

WASHER

$

$

Not available

22

Toro 11-1800

Differential

$

$

Not available

23

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

24

Toro 214590

Wiring Harness

$

$

Not available

25

Toro 7-7630

ENG-GROUND WIRE ASM

$20.99

$

Usually ships in 3-6 days

0

26

Toro 241-110

Rim

$

$

Not available

27

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

28

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

29

Toro 231-67

Tire
(Superseded to 231-115)

$97.99

$

Usually ships in 3-6 days

0

Toro 2210-127

Starter Rope

Note: Not illustrated

$

$

Currently unavailable

Toro 7-6580

Battery Charger
(Superseded to 44-7250)

Note: Not illustrated

$160.99

$

Usually ships in 3-6 days

0

Toro 24-6790

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
