56036 - Toro 25" Premium Keylectric Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1976) Tecumseh Engine Model No. V70-125183c Parts Diagram

25" Premium Keylectric Rear-Engine Riding Mower

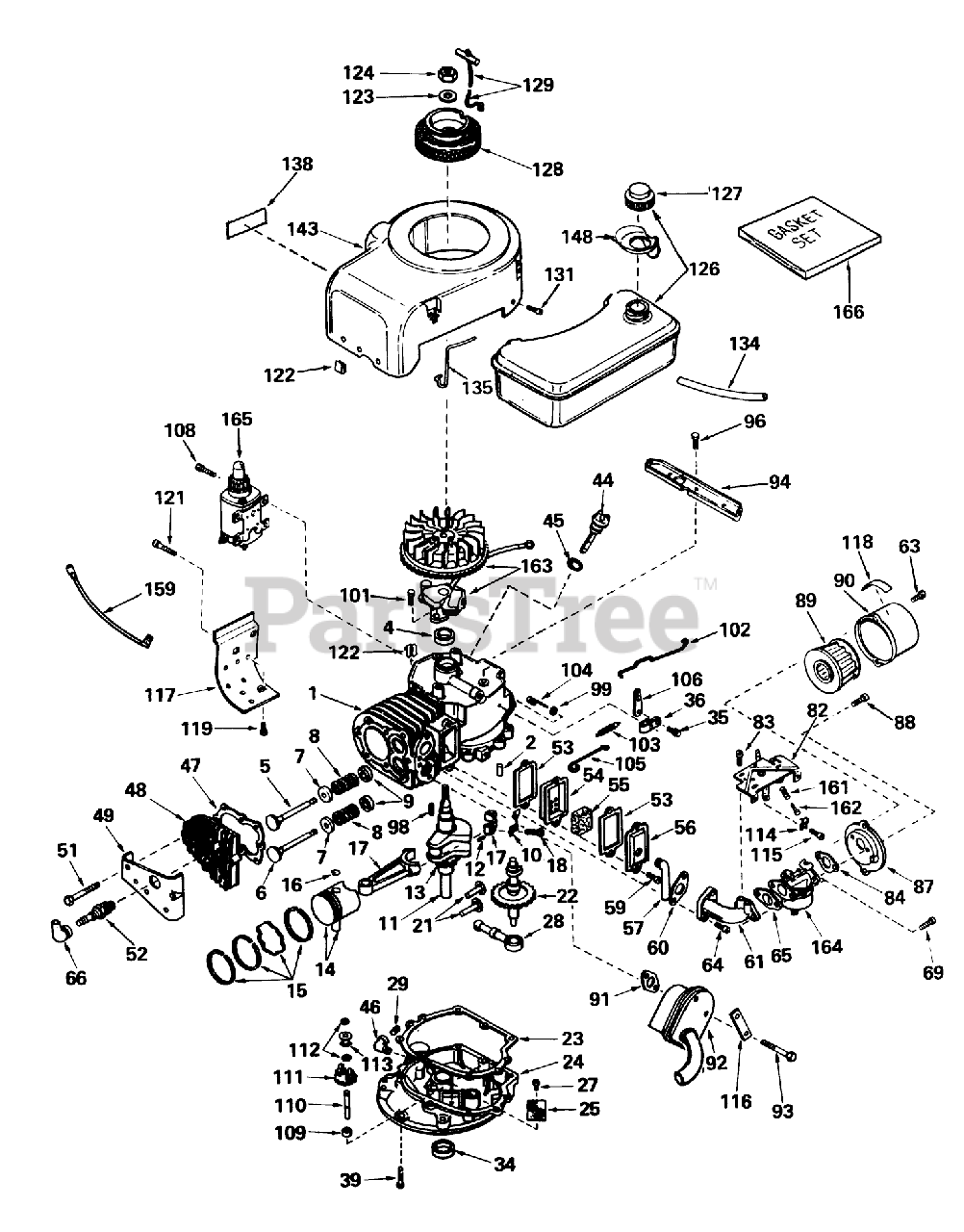

Tecumseh Engine Model No. V70-125183c Parts Diagram

  • Title

1

Toro 34172

Cylinder Assy. (Incl. Nos. 2, 4 44)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

4

Toro 32630

Oil Seal

$

$

Currently unavailable

5

Toro 32783

Valve, Intake (Standard)(Incl. No. 9)

$

$

Currently unavailable

5

Toro 32784

Valve, Intake (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

6

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

7

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

8

Toro 27881

Spring-Valve

$

$

Currently unavailable

9

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

10

Toro 34173

Plate, Lock

$

$

Currently unavailable

11

Toro 32638

Crankshaft Assy. (Incl. Nos. 12 13)(Model 935 only)

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 27884

Gear-Crankshaft

$

$

Currently unavailable

14

Toro 32592

Piston Pin Assy. (Incl. 2 of No. 16)(Standard)

$

$

Currently unavailable

14

Toro 32593

Piston Pin Assy. (Incl. 2 of No. 16)(.010 oversize)

$

$

Currently unavailable

14

Toro 32594

Piston Pin Assy. (Incl. 2 of No. 16)(.020 oversize)

$

$

Currently unavailable

15

Toro 32595

ORing

$

$

Currently unavailable

15

Toro 32596

Ring Set (.010" OS)

$

$

Currently unavailable

15

Toro 32597

Ring Set (.020" OS)

$

$

Currently unavailable

16

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

17

Toro 32591C

Rod Assy., Connecting (Incl. Nos. 10 18)

$

$

Currently unavailable

18

Toro 650662

Screw, Hex Hd.

$

$

Currently unavailable

21

Toro 34034

Lifter-Valve

$

$

Currently unavailable

22

Toro 32114

Screw

$

$

Currently unavailable

23

Toro 30684

Gasket-Cover, Cylinder

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

24

Toro 31471B

Flange Assy., Mounting (Incl. Nos. 25, 27, 29, 34, 45 110)

$

$

Currently unavailable

25

Toro 31355

Screen-Oil Filter

$

$

Currently unavailable

27

Toro 29117

Screw

$

$

Currently unavailable

28

Toro 31356

Pump, Oil

$

$

Currently unavailable

29

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

34

Toro 27897

Seal-Oil

$

$

Currently unavailable

35

Toro 650548

Screw

$

$

Currently unavailable

36

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

39

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

44

Toro 34165

Dipstick, Oil (Incl. No. 45)

$

$

Currently unavailable

45

Toro 29673

Gasket

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

46

Toro 29573

Elbow, 90

$

$

Currently unavailable

47

Toro 32631

Gasket-Cylinder Head

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

48

Toro 30938A

CYLINDER HEAD

$

$

Currently unavailable

49

Toro 30939A

Cover-Head, Cylinder

$

$

Currently unavailable

51

Toro 650697

Screw Hex Hd. Cap

$

$

Currently unavailable

52

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

53

Toro 27896

Gasket-Breather

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

54

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

55

Toro 28424

Element-Breather

$

$

Currently unavailable

56

Toro 28425

Cover-Valve

$

$

Currently unavailable

57

Toro 27627

Tube-Breather

$

$

Currently unavailable

59

Toro 650128

Screw

$

$

Currently unavailable

60

Toro 27915

Gasket-Intake

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

61

Toro 32632

Pipe-Intake
(Superseded to 741323)

$

$

Not available

63

Toro 650152

Screw

$

$

Currently unavailable

64

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

$

$

Currently unavailable

65

Toro 26756

Gasket

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

66

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

69

Toro 650372

Screw-Hex Hd.

$

$

Currently unavailable

82

Toro 32181

Control Assy., Speed (Incl. Nos. 161 162)

$

$

Currently unavailable

83

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

84

Toro 27272

Gasket

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

87

Toro 31691

Bracket

$

$

Currently unavailable

88

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

89

Toro 30727

Element

$

$

Currently unavailable

90

Toro 31692

Body

$

$

Currently unavailable

91

Toro 27930

Gasket Exhaust

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

92

Toro 391023

Muffler

$

$

Currently unavailable

93

Toro 650696

Screw Hex Hd.

$

$

Currently unavailable

94

Toro 34105

Bracket-Blower Housing

$

$

Currently unavailable

96

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

98

Toro 32589

Key-Flywheel

$

$

Currently unavailable

99

Toro 28277

Washer-Flat

$

$

Currently unavailable

101

Toro 650489

Screw

$

$

Currently unavailable

102

Toro 31823

Link Governor
(Superseded to 742364)

$

$

Not available

103

Toro 31361

Spring Governor

$

$

Currently unavailable

104

Toro 30669

Rod, Governor (Incl. Nos. 146)

$

$

Currently unavailable

105

Toro 32582

Link Governor Spring

$

$

Currently unavailable

106

Toro 31357

Lever-Governor

$

$

Currently unavailable

108

Toro 30688

Screw

$

$

Currently unavailable

109

Toro 31707

Spacer

$

$

Currently unavailable

110

Toro 30668

Shaft, Governor

$

$

Currently unavailable

111

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

112

Toro 29193

Ring-Retaining

$

$

Currently unavailable

113

Toro 30588A

Spool-Governor

$

$

Currently unavailable

114

Toro 27793

Conduit

$

$

Currently unavailable

115

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

116

Toro 31588

62513 SNWTHWR W/284

$3.23

$

Usually ships in 3-6 days

0

117

Toro 30622

Emnsion, Blower Housing

$

$

Currently unavailable

118

Toro 31752

Decal

$

$

Not available

119

Toro 650128

Screw

$

$

Currently unavailable

121

Toro 30688

Screw

$

$

Currently unavailable

122

Toro 27275

51004 GIL ROTARY TI

$3.23

$

Usually ships in 3-6 days

0

123

Toro 650490

Washer

$

$

Currently unavailable

124

Toro 8116

DISCONTINUED

$

$

Not available

126

Toro 32926

Tank Assy., Fuel (Incl. No. 127)

$

$

Currently unavailable

127

Toro 32387A

Cap, Fuel

$

$

Currently unavailable

128

Toro 28301

Hub Screen, Rope Starter

$

$

Currently unavailable

129

Toro 590343

Rope Assy., Starter

$

$

Currently unavailable

131

Toro 29747A

Screw, Hex Hd.

$

$

Currently unavailable

134

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

135

Toro 33549

Clamp, Tank Holdown

$

$

Currently unavailable

138

Toro 31865

480B GIL SNWTHWR O/

$3.23

$

Usually ships in 3-6 days

0

143

Toro 32629A

Housing Blower

$

$

Currently unavailable

148

Toro 33548

Deflector-Fuel

$

$

Currently unavailable

159

Toro 610683

SPOOL RETAINER (10-PK)

$

$

Not available

161

Toro 31342

Spring-Compression

$

$

Currently unavailable

162

Toro 650549

Screw

$

$

Currently unavailable

163

Toro 610694A

Magneto

$

$

Currently unavailable

164

Toro 631449

Carburetor

$

$

Currently unavailable

165

Toro 33606

Tine Shaft
(Superseded to 701025)

$

$

Not available

166

Toro 33239

Gasket Set

$

$

Currently unavailable
