56080 - Toro 25" Whirlwind Premium Riding Mower (SN: 000000001 - 000999999) (1980) ENGINE AND DIFFERENTIAL ASSEMBLY Parts Diagram

25" Whirlwind Premium Riding Mower

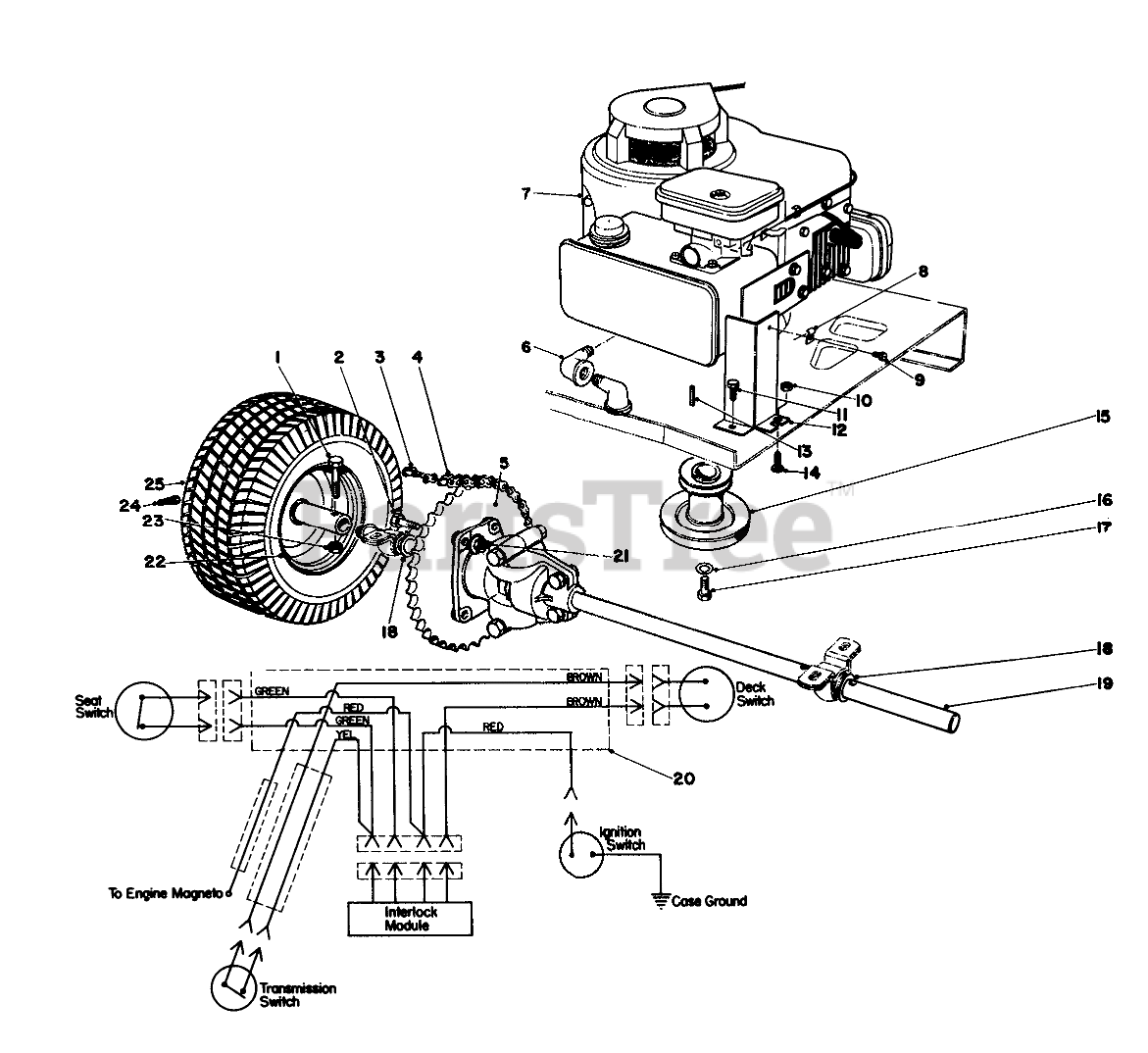

ENGINE AND DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

4

Toro 26-2860

ROLLER CHAIN

$

$

Not available

5

Toro 12-1940

Sprocket

$

$

Not available

6

Toro 90

Street Elbow

Note: Standard hardware item. May be purchased locally.

$

$

Currently unavailable

7

Toro 221-644

Engine

$

$

Currently unavailable

8

Toro 26-7820

Clip

$

$

Currently unavailable

9

Toro 26-7800

Screw

$

$

Currently unavailable

10

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

11

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

12

Toro 28-5680

Support-Wire

$

$

Not available

13

Toro 3-0971

KEY

$

$

Not available

14

Toro 32122-33

5/16-18X5/8 TRS HD MS

$

$

Not available

15

Toro 26-4780

ENGINE SHEAVE

$

$

Not available

16

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

17

Toro 3211-36

SCREW-HH

$

$

Not available

18

Toro 11-4930

WASHER

$

$

Not available

19

Toro 39-6770

Differential

$

$

Not available

20

Toro 39-6550

Wiring Harness

$

$

Not available

21

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

22

Toro 241-110

Rim

$

$

Not available

23

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

24

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

25

Toro 231-81

Tire
(Superseded to 231-115)

$97.99

$

Usually ships in 3-6 days

0

Toro 231-67

Tire
(Superseded to 231-115)

Note: Not illustrated

$97.99

$

Usually ships in 3-6 days

0

Toro 232-36

TUBE

Note: Not illustrated

$

$

Not available

Toro 41-9210

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
