560Z (5901557) - Snapper 52"/132cm Zero-Turn Mower, 25hp 52" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

52"/132cm Zero-Turn Mower, 25hp

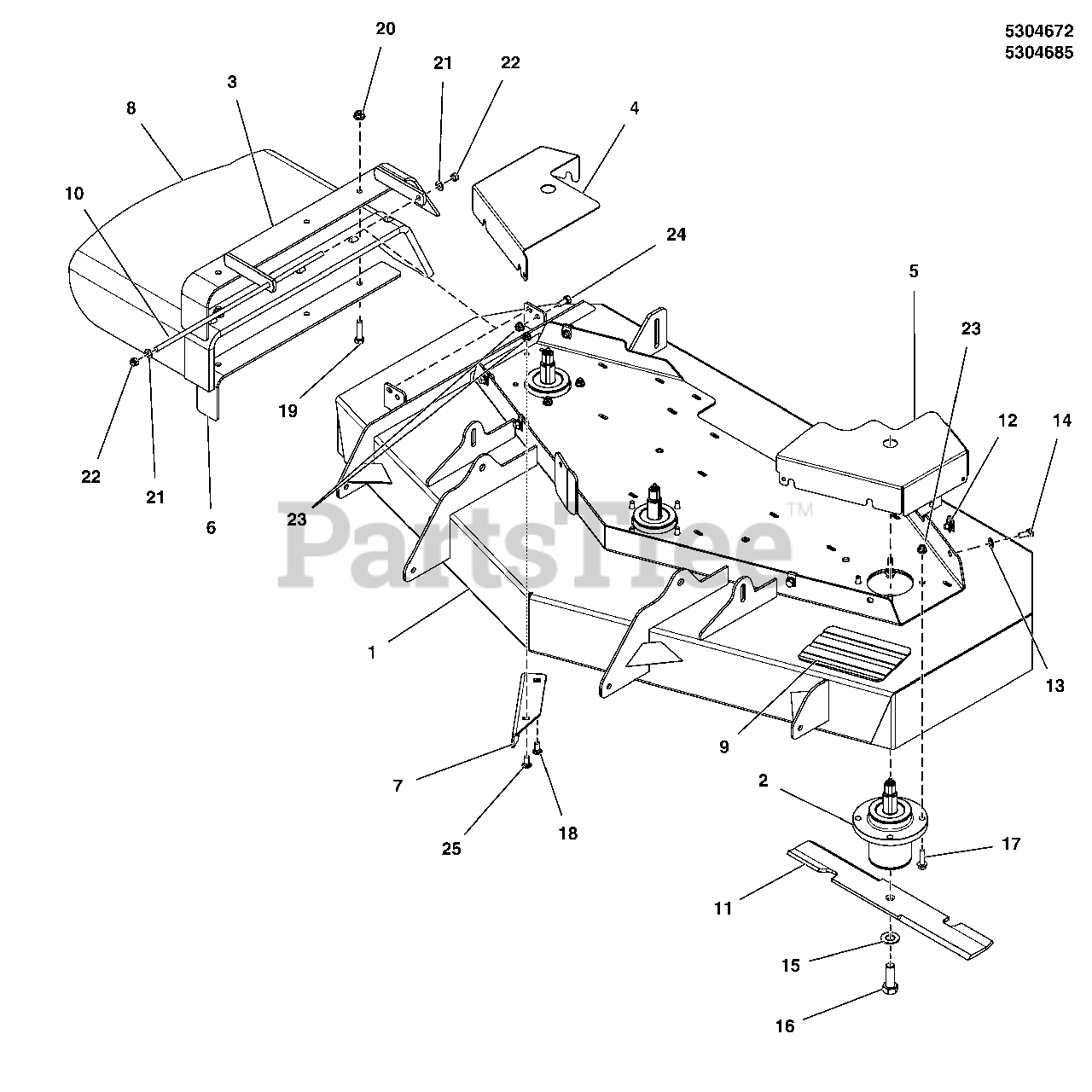

52" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Snapper 5600987YP

DECK SHELL W/DECALS, 52, 560 (5415615D)

$2878.99

$

Usually ships in 2-12 days

0

2

Snapper 5061095SM

SPINDLE ASSEMBLY, Complete (See Spindle Service Parts group)

$189.99

$

In Stock, only 4 left!

0

3

Snapper 5413400AYP

WELD, MOUNT, DISCHARGE CHUTE - BLK

$68.99

$

Usually ships in 2-12 days

0

4

Snapper 5415634DYP

GUARD, 52", RH, 560Z - RED

$46.99

$

Usually ships in 2-12 days

0

5

Snapper 5410492DYP

GUARD, 52 DECK, LH - RED

$45.99

$

Usually ships in 2-12 days

0

6

Snapper 5413398AYP

SUPPORT, DISCHARGE CHUTE - BLK

$34.99

$

Usually ships in 2-12 days

0

7

Snapper 5405557YP

PLATE, Deflector

$22.99

$

Usually ships in 2-12 days

0

8

Snapper 5413500YP

CHUTE, RUBBER DISCHARGE (5104442)

$231.99

$

Usually ships in 2-12 days

0

9

Snapper 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.99

$

In Stock, only 1 left!

0

10

Snapper 5061300SM

MOUNT, Chute

$14.99

$

In Stock, only 2 left!

0

11

Snapper 1756152AYP

BLADE, 18", .63 Hole, .98 Lift

$27.99

$

In Stock, Qty 20+

0

12

Snapper 5022308SM

CLIP, BODY , 5/16-18 FOR 7 GA.

$5.99

$

In Stock, only 4 left!

0

13

Snapper 703302

WASHER, Flat, 5/16

Note: (5025155)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

15

Snapper 5025477SM

WASHER, Blade Bolt, 9/16"

$4.49

$

In Stock, Qty 20+

0

16

Snapper 770136

BOLT, 5/8-11 X 1 3/4, GR 8
(Superseded to 5025320X14FS)

Note: (Torque blade mounting bolts to 120 ft-lbs (163 Nm)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 5023156SM

CAPSCREW, Hex Flange Head, 5/16-18 x 1-1/4

Note: (Torque spindle mounting bolts to 17 ft-lbs (23 Nm)

$4.49

$

In Stock, Qty 7

0

18

Snapper 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ

$3.99

$

In Stock, Qty 20+

0

19

Snapper 5025146X12YP

BOLT, Carriage, 3/8-16 X 1 1/2, GR5

$4.49

$

In Stock, only 3 left!

0

20

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

21

Snapper 703302

WASHER, Flat, 5/16

Note: (5025155)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 5025045SM

NUT, Hex Lock, Nylon, 5/16-24

$3.49

$

In Stock, Qty 15

0

23

Snapper 703115

NUT, Flange Nylock, 5/16-18

Note: (5025392)

$3.49

$

In Stock, Qty 11

0

24

Snapper 5025011X6SM

CAPSCREW, Hex Head, 5/16-18 x 3/4

$3.99

$

In Stock, only 2 left!

0

25

Snapper 5025145X8SM

BOLT, 5/16-18 X 1, CARRIAGE YZ

$3.99

$

In Stock, Qty 9

0
