560Z (5901558) - Snapper 61"/155cm Zero-Turn Mower, 24hp Deck Lift Group S/N: 2017954956 & Above Parts Diagram

61"/155cm Zero-Turn Mower, 24hp

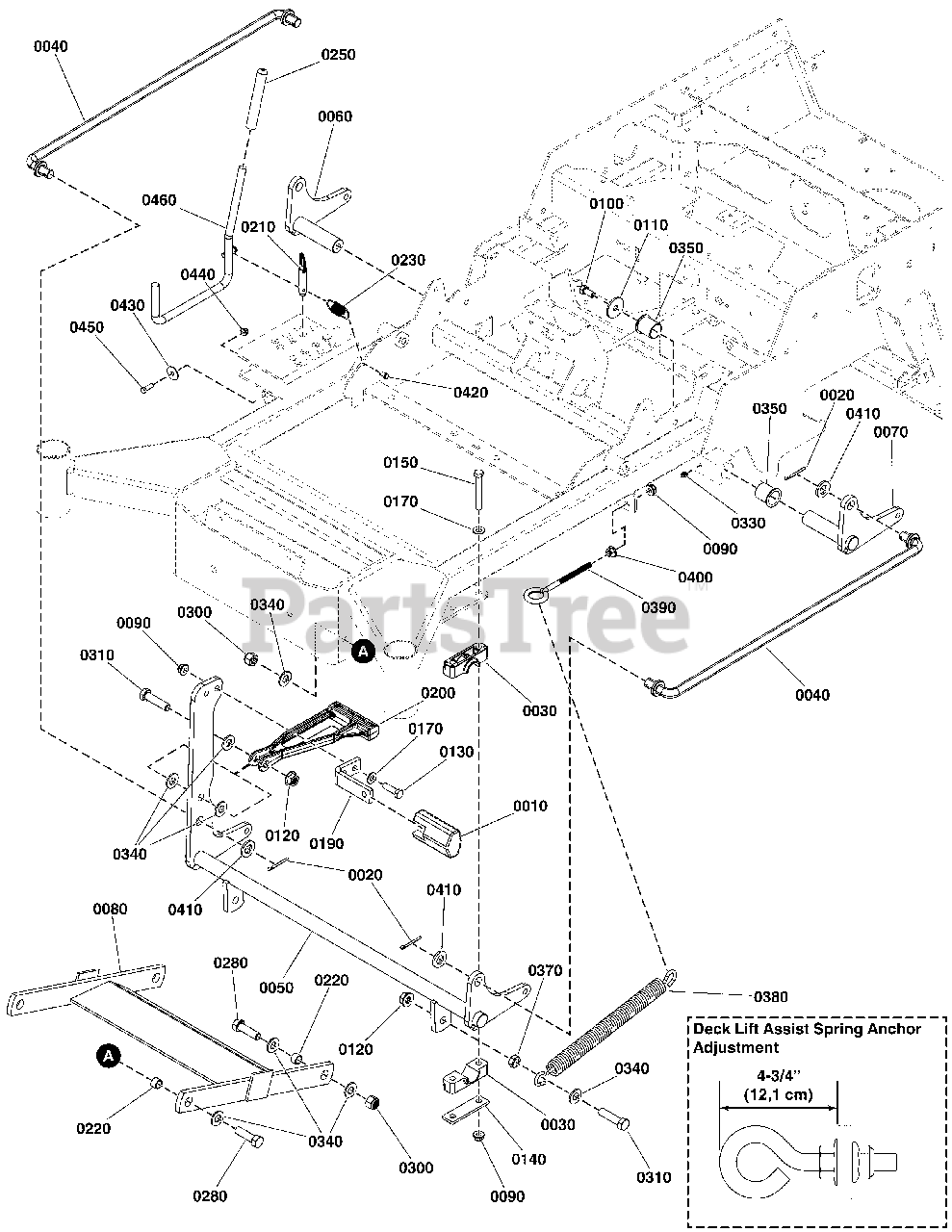

Deck Lift Group S/N: 2017954956 & Above Parts Diagram

  • Title

0010

Snapper 5104262YP

PEDAL, Rubber

$10.99

$

Usually ships in 2-12 days

0

0020

Snapper 5025203X10SM

PIN, COTTER, 1/8" X 1-1/4"

$3.99

$

Usually ships in 2-12 days

0

0030

Snapper 5100634SM

BLOCK

$7.49

$

Usually ships in 2-12 days

0

0040

Snapper 5105147YP

ROD, DECK LIFT, 560Z

$75.99

$

Usually ships in 2-12 days

0

0050

Snapper 5415828AYP

WELD, DECK LIFT SHAFT, 560Z - BLK

$176.99

$

Usually ships in 2-12 days

0

0060

Snapper 5411453AYP

WELD, DECK LIFT PIVOT, RH - BLK

$42.99

$

Usually ships in 2-12 days

0

0070

Snapper 5411454AYP

WELD, DECK LIFT PIVOT, LH - BLK

$42.99

$

Usually ships in 2-12 days

0

0080

Snapper 5415777AYP

WELD, PULLER BAR, 125 FRAME - BLK

$127.99

$

Usually ships in 2-12 days

0

0090

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 11

0

0100

Snapper 5025443SM

BOLT, 3/8-16 x 3/4, GD5, YZ WITH PATCH

$3.49

$

Usually ships in 2-12 days

0

0110

Snapper 5100548SM

WASHER, .390 X 1.50 X .109, YZ

$4.49

$

In Stock, only 1 left!

0

0120

Snapper 5025396SM

NUT, Hex Flange, 1/2-13

$3.49

$

Usually ships in 2-12 days

0

0130

Snapper 5025013X10SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

0140

Snapper 5403925AYP

PLATE, Pivot

$8.49

$

Usually ships in 2-12 days

0

0150

Snapper 5025013X22SM

CAPSCREW, Hex Head, 3/8-16 X 2-3/4

$4.49

$

In Stock, Qty 5

0

0170

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 5061569AYP

PEDAL, FOOT - BLK

$40.99

$

Usually ships in 2-12 days

0

0200

Snapper 5104133YP

ARM LINK

$35.99

$

Usually ships in 2-12 days

0

0210

Snapper 5023498SM

PIN, HITCH, 1/2 X 2.00 OAL, YP

$8.99

$

Usually ships in 2-12 days

0

0220

Snapper 5020870SM

INSERT, BEARING

$5.49

$

In Stock, only 3 left!

0

0230

Snapper 5010213YP

SPRING-EXT, .740 ODX2.025LGX.072WR, BLK

$14.99

$

Usually ships in 2-12 days

0

0250

Snapper 5021880SM

GRIP, FOAM, .475 X 4.35 X .095

$5.99

$

In Stock, only 1 left!

0

0280

Snapper 5025018X14YP

BOLT, 1/2-20 X 1-3/4 GD8 CZ
(Superseded to 5025018X14SM)

$1.99

$

Usually ships in 2-12 days

0

0300

Snapper 5025098SM

NUT, Hex, Nylon Lock, 1/2-20

$5.99

$

Usually ships in 2-12 days

0

0310

Snapper 5025017X16YP

CAPSCREW, Hex Head, 1/2-13 x 2

$4.49

$

Usually ships in 2-12 days

0

0330

Snapper 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$3.99

$

Usually ships in 2-12 days

0

0340

Snapper 5025158SM

WASHER, 1/2

$3.99

$

In Stock, only 2 left!

0

0350

Snapper 5023343SM

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC

$6.49

$

In Stock, only 3 left!

0

0370

Snapper 5025301SM

NUT, Hex, Jam, 1/2-13

$3.49

$

Usually ships in 2-12 days

0

0380

Snapper 5023355SM

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK

$49.99

$

In Stock, only 1 left!

0

0390

Snapper 5021812SM

EYE BOLT, 3/8-16 X 6, 3.0 THRD, 1 EYE

$5.99

$

Usually ships in 2-12 days

0

0400

Snapper 5025128SM

NUT, Hex, Serrated Flange, 3/8-16 (S/N 616 & up)

$3.49

$

In Stock, only 1 left!

0

0410

Snapper 5025477SM

WASHER, Blade Bolt, 9/16"

$3.99

$

In Stock, Qty 9

0

0420

Snapper 5025212X4SM

PIN, CLEVIS, 1/4 X 1/2, PLATED

$3.99

$

Usually ships in 2-12 days

0

0430

Snapper 5025288YP

WASHER, 1/4

$3.99

$

In Stock, Qty 5

0

0440

Snapper 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, only 3 left!

0

0450

Snapper 703338

CAPSCREW, Hex Head, 1/4-20 x 5/8, GR5

$3.99

$

Usually ships in 2-12 days

0

0460

Snapper 5410317AYP

WELD, Rod, Deck Lift - BLK

$33.99

$

Usually ships in 2-12 days

0
