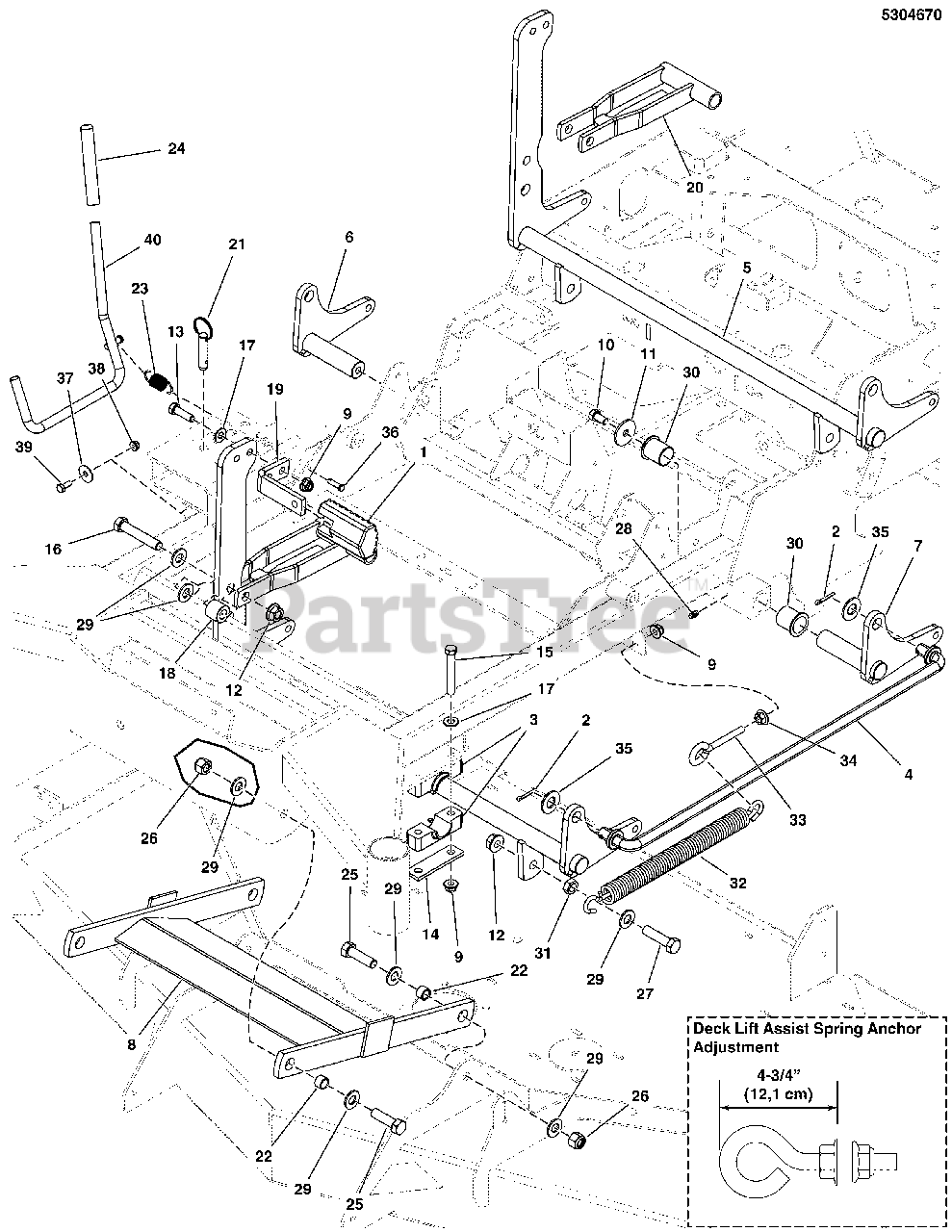

560Z (5901564) - Snapper 61"/155cm Zero-Turn Mower, 25hp Deck Lift Group S/N: 2017954955 & Below Parts Diagram

61"/155cm Zero-Turn Mower, 25hp

Deck Lift Group S/N: 2017954955 & Below Parts Diagram

  • Title

1

Snapper 5104262YP

PEDAL, Rubber

$11.99

$

In Stock, only 1 left!

0

2

Snapper 5025203X10SM

PIN, COTTER, 1/8 X 1-1/4

$3.99

$

In Stock, only 2 left!

0

3

Snapper 5100634SM

PIVOT BLOCK, PLASTIC

$7.99

$

In Stock, only 3 left!

0

4

Snapper 5105147YP

ROD, DECK LIFT, 560Z

$80.99

$

Usually ships in 2-12 days

0

5

Snapper 5415828AYP

WELD, DECK LIFT SHAFT, 560Z - BLK

$187.99

$

Usually ships in 2-12 days

0

6

Snapper 5411453AYP

WELD, DECK LIFT PIVOT, RH - BLK

$43.99

$

Usually ships in 2-12 days

0

7

Snapper 5411454AYP

WELD, DECK LIFT PIVOT, LH - BLK

$43.99

$

Usually ships in 2-12 days

0

8

Snapper 5415777AYP

WELD, PULLER BAR, 125 FRAME - BLK

$135.99

$

Usually ships in 2-12 days

0

9

Snapper 5025394SM

NUT, Hex Flange, Nylock, 3/8-16

$4.49

$

In Stock, Qty 20+

0

10

Snapper 5025443SM

BOLT, 3/8-16 X 3/4, PLT W/PATCH

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 5100548SM

WASHER, .390 X 1.50 X .109, CZ

$4.49

$

In Stock, only 2 left!

0

12

Snapper 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, Qty 20+

0

13

Snapper 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5 CZ

$4.49

$

In Stock, only 4 left!

0

14

Snapper 5403925AYP

PLATE, Pivot

$8.49

$

Usually ships in 2-12 days

0

15

Snapper 5025013X22SM

BOLT, 3/8-16 X 2-3/4 GD5 CZ

$4.49

$

In Stock, Qty 20+

0

16

Snapper 5025017X22SM

BOLT, 1/2-13 X 2-3/4 GD5 CZ

$5.99

$

In Stock, Qty 5

0

17

Snapper 703590

WASHER, .406

Note: (5025156)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 5044673SM

SPACER, .52 X 1.00 X .88, PM, CZ

$9.49

$

In Stock, only 2 left!

0

19

Snapper 5061569AYP

PEDAL, FOOT - BLK

$42.99

$

Usually ships in 2-12 days

0

20

Snapper 5410315AYP

WELD, DECK HEIGHT LINK, IS700 - BLACK

$62.99

$

In Stock, only 1 left!

0

21

Snapper 5023498SM

PIN, HITCH, 1/2 X 2.00 OAL, CZ

$8.99

$

In Stock, only 2 left!

0

22

Snapper 5020870SM

INSERT, BEARING

$5.99

$

In Stock, Qty 6

0

23

Snapper 5010213YP

SPRING-EXT, .740 ODX2.025LGX.072WR, BLK

$15.99

$

Usually ships in 2-12 days

0

24

Snapper 5021880SM

GRIP, FOAM, .475 X 4.35 X .095

$5.99

$

In Stock, only 3 left!

0

25

Snapper 5025018X14YP

BOLT, 1/2-20 X 1-3/4 GD8 CZ
(Superseded to 5025018X14SM)

$

$

Not available

26

Snapper 5025098SM

NUT, 1/2-20 HEX NYLON LOCK

$6.49

$

In Stock, Qty 10

0

27

Snapper 5025017X16YP

BOLT, 1/2-13 X 2 GD5 CZ

$4.49

$

In Stock, only 1 left!

0

28

Snapper 5020095SM

GREASE FITTING, 1/4-28 STRAIGHT

$4.49

$

In Stock, only 1 left!

0

29

Snapper 5025158SM

WASHER, 1/2 SAE

$4.49

$

In Stock, Qty 20+

0

30

Snapper 5023343SM

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC

$6.99

$

In Stock, only 4 left!

0

31

Snapper 5025301SM

NUT, 1/2-13 HEX JAM

$3.49

$

In Stock, only 1 left!

0

32

Snapper 5023355SM

SPRING-EXT, 1.00 ODX13.25LGX.177WR, BLK

$52.99

$

Usually ships in 2-12 days

0

33

Snapper 5021812SM

EYE BOLT, 3/8-16 X 6, 3THRD, 1EYE, CZ

$6.49

$

In Stock, only 3 left!

0

34

Snapper 5025128SM

NUT, 3/8-16 HEX SERRATED FLANGE

$3.49

$

In Stock, Qty 20+

0

35

Snapper 5025477SM

WASHER, Blade Bolt, 9/16"

$4.49

$

In Stock, Qty 20+

0

36

Snapper 5025212X4SM

PIN, CLEVIS, 1/4 X 1/2, PLATED

$3.99

$

Usually ships in 2-12 days

0

37

Snapper 5025288YP

WASHER, 1/4 FENDER

$3.99

$

In Stock, Qty 12

0

38

Snapper 703463

NUT, Flange Nylock , 1/4-20
(Superseded to 5025391FS)

Note: (5025391)

$4.49

$

In Stock, Qty 7

0

39

Snapper 703338

BOLT,1/4-20X5/8

$3.99

$

Usually ships in 2-12 days

0

40

Snapper 5410317AYP

WELD, Rod, Deck Lift - BLK

$35.99

$

Usually ships in 2-12 days

0
