56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 002000001 - 002999999) (1982) Engine And Axle Assembly Parts Diagram

Rear-Engine Riding Mower

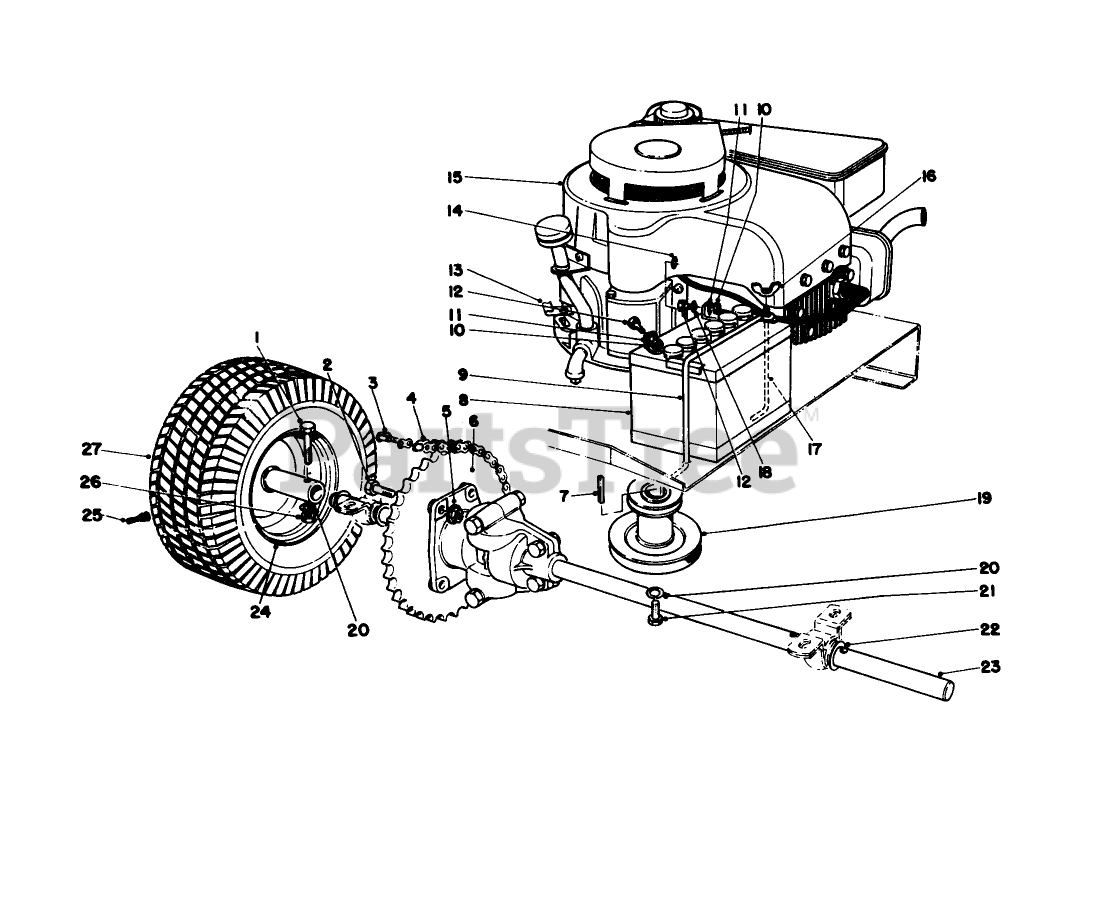

Engine And Axle Assembly Parts Diagram

  • Title

1

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 19

0

3

Toro 2710-6

LINK-CONNECTING

$21.99

$

Usually ships in 3-6 days

0

4

Toro 44-7150

See Supercession: 67-0910
(Superseded to 67-0910)

$

$

Not available

5

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, only 3 left!

0

6

Toro 11-2390

DISCONTINUED

$

$

Not available

7

Toro 3-0971

KEY

$

$

Not available

8

Toro 26-7290

DISCONTINUED

$

$

Not available

9

Toro 12-5700

DISCONTINUED

$

$

Not available

10

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 6

0

11

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 7-0077

DISCONTINUED

$

$

Not available

14

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

In Stock, only 3 left!

0

15

Toro 221-645

Engine

$

$

Currently unavailable

16

Toro 32103-14

NUT-WING SPECL

$16.99

$

In Stock, only 1 left!

0

17

Toro 12-5950

ROD-SUPPORT, BATTERY

$

$

Not available

18

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

19

Toro 26-6850

See Supercession: 47-5020
(Superseded to 47-5020)

$

$

Not available

20

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

21

Toro 3211-36

DISCONTINUED

$

$

Not available

22

Toro 11-4930

DISCONTINUED

$

$

Not available

23

Toro 39-6770

DISCONTINUED

$

$

Not available

24

Toro 241-110

DISCONTINUED

$

$

Not available

25

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$7.99

$

In Stock, only 4 left!

0

26

Toro 32152-2

NUT-LOCK, CONE

$2.49

$

In Stock, only 2 left!

0

27

Toro 231-96

See Supercession: 231-115
(Superseded to 231-115)

$112.99

$

Usually ships in 3-6 days

0
