56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 002000001 - 002999999) (1982) TECUMSEH ENGINE MODEL NO.V70-125183D Parts Diagram

Rear-Engine Riding Mower

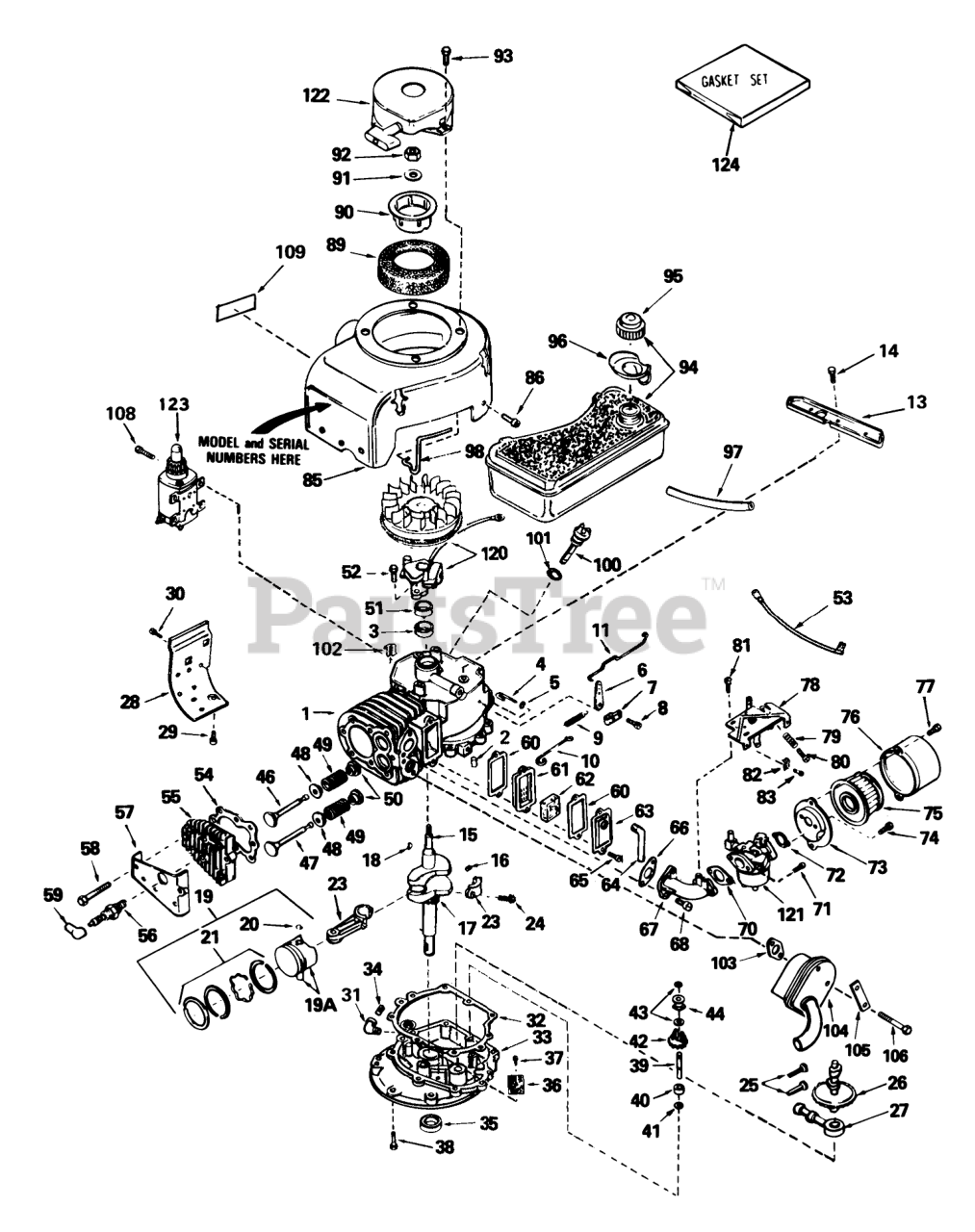

TECUMSEH ENGINE MODEL NO.V70-125183D Parts Diagram

  • Title

1

Tecumseh 34172

Cylinder Assy. (Incl. Ref. #2, 3, 100 & 101)
(Superseded to 34172A)

$223.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Pin-Dowel

$2.49

$

In Stock, only 1 left!

0

3

Tecumseh 32630

Oil Seal

$8.49

$

In Stock, Qty 7

0

4

Tecumseh 30669

Rod, Governor (Incl. Ref. #5)

$7.49

$

In Stock, only 1 left!

0

5

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 3 left!

0

6

Tecumseh 31357

Lever-Governor

$1.99

$

Usually ships in 3-12 days

0

7

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, Qty 5

0

8

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 18

0

9

Tecumseh 31361

Spring Governor

$1.99

$

In Stock, Qty 11

0

10

Tecumseh 32582

Link Governor Spring

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 31823

Link Governor

$1.99

$

In Stock, only 4 left!

0

13

Tecumseh 34105

Bracket-Blower Housing

$19.99

$

Usually ships in 3-12 days

0

14

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, Qty 6

0

15

Tecumseh 34890

Crankshaft Assembly (Incl. Ref. #16 & 17)

$

$

Not available

16

Tecumseh 29783

Pin, Groove

$1.99

$

Usually ships in 3-12 days

0

17

Tecumseh 27884

Gear-Crankshaft

$11.99

$

Usually ships in 3-12 days

0

18

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, Qty 9

0

19

Tecumseh 34517

Piston, Pin & Ring Assy. (Std.) (Incl. Ref. #19A, 20 & 21 )

$

$

Not available

19

Tecumseh 34518

Piston, Pin & Ring Assy. (.010 oversize) (Incl. Ref. #19A, 20 & 21 )

$

$

Not available

19

Tecumseh 34519

Piston, Pin & Ring Assy. (.020 oversize) (Incl. Ref. #19A, 20 & 21 )

$

$

Not available

19A

Tecumseh 32592B

Piston & Pin Assy. (Std.) (Incl. Ref. #20)

$52.99

$

In Stock, only 1 left!

0

19A

Tecumseh 32593B

Piston & Pin Assy. (.010 over size) (Incl. Ref. #20)

$57.99

$

In Stock, only 1 left!

0

19A

Tecumseh 32594B

Piston & Pin Assy. (.020 oversize) (Incl. Ref. #20)

$61.99

$

Usually ships in 3-12 days

0

20

Tecumseh 27888

Ring-Retaining, Piston Pin

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 32595

"O"Ring

$

$

Not available

21

Tecumseh 32596

Ring Set (.010" OS)

$

$

Not available

21

Tecumseh 32597

Ring Set (.020" OS)

$

$

Not available

23

Tecumseh 32591

C Rod Assy., Connecting (Incl. Ref. #24)
(Superseded to 32591C)

$

$

Not available

24

Tecumseh 650662B

Bolt, Connecting Rod
(Superseded to 650662C)

$3.99

$

Usually ships in 3-12 days

0

25

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

$10.99

$

In Stock, only 1 left!

0

26

Tecumseh 32114

Screw

$92.99

$

Usually ships in 3-12 days

0

27

Tecumseh 31356

Pump, Oil

$12.99

$

Usually ships in 3-12 days

0

28

Tecumseh 30622

Emnsion, Blower Housing
(Superseded to 30622A)

$

$

Not available

29

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

30

Tecumseh 30688

Screw
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

31

Tecumseh 29573

Elbow, 90

$

$

Currently unavailable

32

Tecumseh 30684

Gasket-Cover, Cylinder

Note: Indicates items included in gasket set part no. 33239.

$4.49

$

In Stock, Qty 17

0

33

Tecumseh 31471C

Flange Assy., Mounting (Incl. Ref. #34 thru 37 & 39)
(Superseded to 31471D)

$158.99

$

In Stock, only 1 left!

0

34

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

$1.99

$

In Stock, only 3 left!

0

35

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 20+

0

36

Tecumseh 31355

Screen-Oil Filter

$5.49

$

Usually ships in 3-12 days

0

37

Tecumseh 29117

Screw

$1.99

$

In Stock, only 1 left!

0

38

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

In Stock, only 4 left!

0

39

Tecumseh 30668

Shaft, Governor

$1.99

$

Usually ships in 3-12 days

0

40

Tecumseh 31707A

Spacer Assy. Governor (Incl. Ref. #41)

$1.99

$

In Stock, only 3 left!

0

41

Tecumseh 30590A

Washer-Flat

$1.99

$

In Stock, Qty 9

0

42

Tecumseh 30591

Gear Assy., Governor (Incl. Ref. #41)

$13.99

$

In Stock, Qty 13

0

43

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, Qty 10

0

44

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, Qty 13

0

46

Tecumseh 32783

Valve, Intake (Std.) (Incl. Ref. #50)

$16.99

$

In Stock, only 1 left!

0

46

Tecumseh 32784

Valve, Intake (1/32" oversize) (Incl. Ref. #50)

$69.99

$

Usually ships in 3-12 days

0

47

Tecumseh 27878A

Valve, Exhaust (Std.) (Incl. Ref. #50)

$23.99

$

In Stock, only 1 left!

0

47

Tecumseh 27880A

Valve, Exhaust (1/32" oversize) (Incl. Ref. #50)

$

$

Not available

48

Tecumseh 27882

Cap-Spring, Valve

$1.99

$

In Stock, Qty 5

0

49

Tecumseh 27881

Spring-Valve

$3.99

$

In Stock, only 3 left!

0

50

Tecumseh 32581

Keeper-Spring, Valve

$6.49

$

In Stock, Qty 13

0

51

Tecumseh 33876

Gasket Stator

$5.49

$

Usually ships in 3-12 days

0

52

Tecumseh 650489

Screw

$

$

Not available

53

Tecumseh 610683

SPOOL RETAINER (10-PK)

$5.10

$

In Stock, only 1 left!

0

54

Tecumseh 32631

Gasket-Cylinder Head
(Superseded to 32631A)

Note: Indicates items included in gasket set part no. 33239.

$11.99

$

In Stock, Qty 16

0

55

Tecumseh 30938A

Head, Cylinder (Incl. 3 of Ref. #58)
(Superseded to 36446)

$

$

Not available

56

Tecumseh 33636

Plug, Spark (J17LM or equiv.)

$5.49

$

In Stock, Qty 20+

0

56

Tecumseh 34251

Plug, Spark (Champion RCJ-8)
(Superseded to 33636)

$5.49

$

In Stock, Qty 20+

0

57

Tecumseh 30939A

Cover-Head, Cylinder
(Superseded to 30939B)

$

$

Not available

58

Tecumseh 650697A

Screw (5/16-18 X 2-1/2)

$1.99

$

In Stock, Qty 20+

0

59

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, Qty 19

0

60

Tecumseh 27896

Gasket-Breather
(Superseded to 27896A)

Note: Indicates items included in gasket set part no. 33239.

$1.49

$

In Stock, Qty 20+

0

61

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 2 left!

0

62

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, Qty 20+

0

63

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 4 left!

0

64

Tecumseh 27627

Tube-Breather
(Superseded to 35350)

$6.49

$

In Stock, Qty 12

0

65

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

66

Tecumseh 27915

Gasket-Intake
(Superseded to 27915A)

Note: Indicates items included in gasket set part no. 33239.

$5.99

$

In Stock, Qty 20+

0

67

Tecumseh 32632

Pipe-Intake

$26.99

$

In Stock, only 1 left!

0

68

Tecumseh 650378

Screw (T-30, 5/16-18x1-3/32)

$1.99

$

In Stock, Qty 5

0

70

Tecumseh 26756

Gasket

Note: Indicates items included in gasket set part no. 33239.

$2.99

$

In Stock, Qty 20+

0

71

Tecumseh 650372

Screw-Hex Hd.
(Superseded to 650517)

$1.99

$

In Stock, only 4 left!

0

72

Tecumseh 27272

Gasket
(Superseded to 27272A)

Note: Indicates items included in gasket set part no. 33239.

$4.49

$

In Stock, Qty 20+

0

73

Tecumseh 31691

Bracket

$22.99

$

In Stock, only 3 left!

0

74

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, Qty 6

0

75

Tecumseh 30727

Element

$7.49

$

In Stock, Qty 20+

0

76

Tecumseh 31715

Body-Air Cleaner

$21.99

$

In Stock, Qty 7

0

77

Tecumseh 650152

Screw

$2.49

$

In Stock, only 3 left!

0

78

Tecumseh 32181

A Control Assy., Speed (Incl. Ref. #79 & 80)
(Superseded to 32181A)

$

$

Not available

79

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 2 left!

0

80

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 4 left!

0

81

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 16

0

82

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 4 left!

0

83

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, Qty 5

0

85

Tecumseh 32629A

Housing Blower
(Superseded to 32629B)

$103.99

$

Usually ships in 3-12 days

0

86

Tecumseh 29747A

Screw, Hex Hd.
(Superseded to 29747B)

$1.99

$

In Stock, only 2 left!

0

89

Tecumseh 590417

Screen, Air

$7.49

$

Usually ships in 3-12 days

0

90

Tecumseh 32125

Cup-Starter
(Superseded to 37966)

$10.99

$

Usually ships in 3-12 days

0

91

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 13

0

92

Tecumseh 8116

Nut

$1.99

$

In Stock, only 4 left!

0

93

Tecumseh 29716

Screw

$1.49

$

In Stock, Qty 6

0

94

Tecumseh 32926

Tank Assy. Fuel (Incl. Ref. #95)
(Superseded to 32584)

$

$

Not available

95

Tecumseh 33032

Cap-Fuel

$7.49

$

In Stock, Qty 7

0

96

Tecumseh 33548

Deflector-Fuel

$5.49

$

Usually ships in 3-12 days

0

97

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 16

0

98

Tecumseh 33549

Clamp, Tank Holdown

$3.99

$

Usually ships in 3-12 days

0

100

Tecumseh 34165

Dipstick, Oil (Incl. Ref. #101)

$9.49

$

In Stock, only 3 left!

0

101

Tecumseh 29673

Gasket

Note: Indicates items included in gasket set part no. 33239.

$1.99

$

In Stock, Qty 7

0

102

Tecumseh 27275

51004 GIL ROTARY TI

$1.99

$

In Stock, Qty 7

0

103

Tecumseh 27930

Gasket Exhaust
(Superseded to 35865)

Note: Indicates items included in gasket set part no. 33239.

$2.49

$

In Stock, Qty 20+

0

104

Tecumseh 391023

Muffler

$101.99

$

Usually ships in 3-12 days

0

105

Tecumseh 31588

Plate-Locking

$4.99

$

In Stock, Qty 20+

0

106

Tecumseh 650696

Screw Hex Hd.

$3.99

$

In Stock, only 2 left!

0

108

Tecumseh 30688

Screw
(Superseded to 30063)

$1.99

$

In Stock, Qty 20+

0

109

Tecumseh 34374

Decal, Instruction
(Superseded to 36261)

$

$

Not available

120

Tecumseh 611043

Magneto(The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually,as shown in parts list.)

$

$

Currently unavailable

121

Tecumseh 631449

Carburetor (Incl. Ref. #70)

$

$

Not available

122

Tecumseh 590420

Starter, Rewind
(Superseded to 590420A)

$68.99

$

In Stock, only 3 left!

0

123

Tecumseh 33606

Tine Shaft
(Superseded to 35765A)

$212.99

$

Usually ships in 3-12 days

0

124

Tecumseh 33239

Gasket Set
(Superseded to 33239A)

$35.99

$

Usually ships in 3-12 days

0
