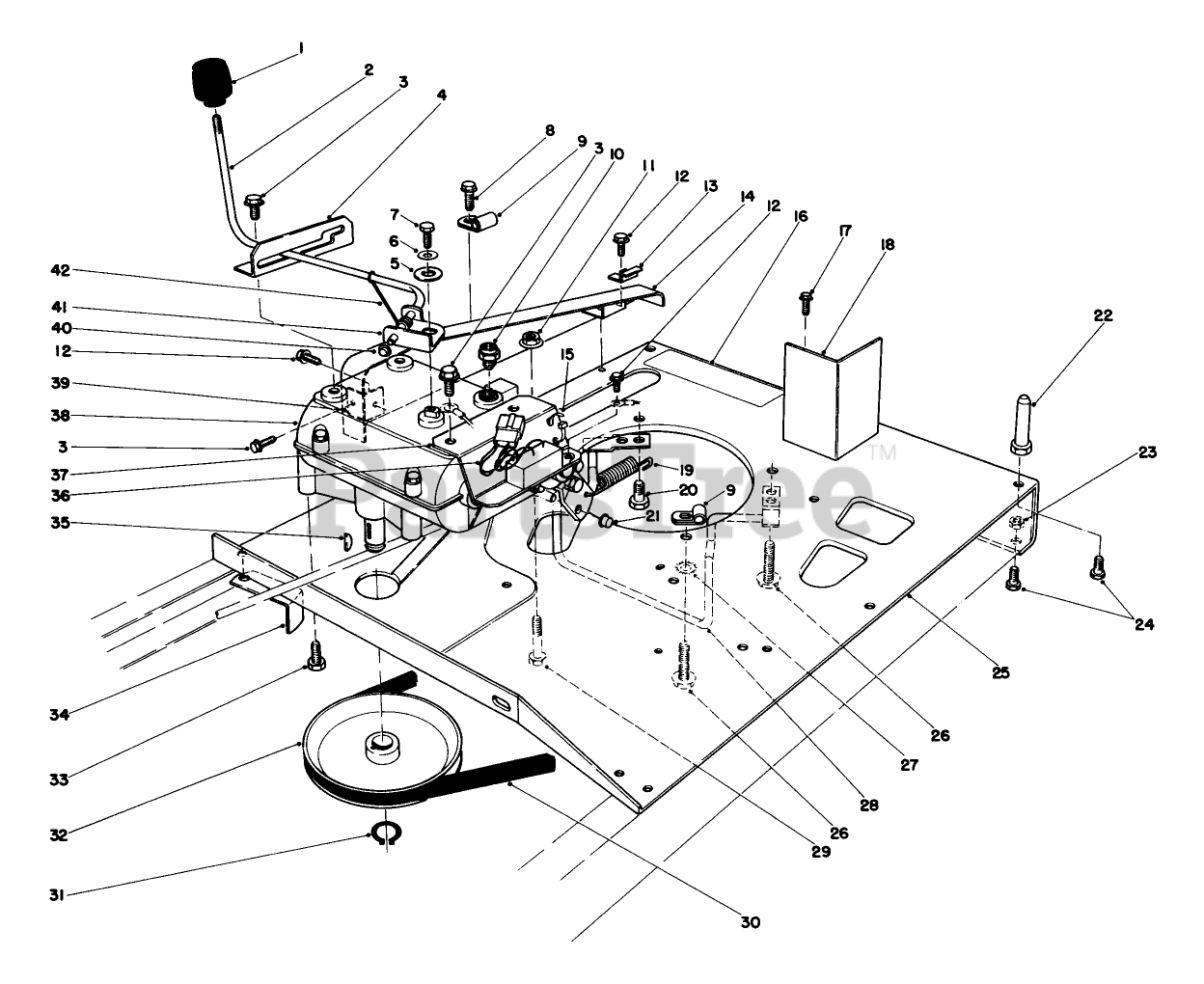

56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) Engine Plate And Shift Assembly Parts Diagram

Rear-Engine Riding Mower

Engine Plate And Shift Assembly Parts Diagram

  • Title

1

Toro 233-37

KNOB

$36.99

$

Usually ships in 3-6 days

0

2

Toro 44-7180

SHIFT LEVER

$346.99

$

Usually ships in 3-6 days

0

3

Toro 32144-14

SCREW-HWHTF

$4.99

$

Usually ships in 3-6 days

0

4

Toro 44-7190

DISCONTINUED

$

$

Not available

5

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

6

Toro 3290-346

PUSH-ON 93-3236

$9.99

$

In Stock, only 1 left!

0

7

Toro 329-3

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

9

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

10

Toro 28-4250

NEUTRAL SWITCH

$49.99

$

Usually ships in 3-6 days

0

11

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 5

0

12

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 9

0

13

Toro 44-7350

DISCONTINUED

$

$

Not available

14

Toro 44-7230

DISCONTINUED

$

$

Not available

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

16

Toro 19-5850

DISCONTINUED

$

$

Not available

17

Toro 32104-11

Screw

$

$

Currently unavailable

18

Toro 19-9880

DISCONTINUED

$

$

Not available

19

Toro 26-6700

SPRING-RETURN, BRAKE

$

$

Not available

20

Toro 32140-45

5/16-18X3/4 HX HD SEM

$

$

Not available

21

Toro 3290-363

PUSH ON SPEED NUT 1/4

$

$

Not available

22

Toro 25-1530

PIN-MOUNTING, LOWER

$36.99

$

Usually ships in 3-6 days

0

23

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, only 3 left!

0

24

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

25

Toro 39-6750

DISCONTINUED

$

$

Not available

26

Toro 11-0590

See Supercession: 32144-102
(Superseded to 32144-102)

$3.99

$

In Stock, Qty 5

0

27

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

28

Toro 26-5740

DISCONTINUE

$

$

Not available

29

Toro 322-17

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

30

Toro 19-2650

V-BELT

$21.99

$

Usually ships in 3-6 days

0

31

Toro 32120-64

RING-SNAP, EXTERNAL

$3.99

$

In Stock, Qty 6

0

32

Toro 74085

Pulley

$

$

Currently unavailable

33

Toro 32140-61

DISCONTINUED

$

$

Not available

34

Toro 17-2230

DISCONTINUED

$

$

Not available

35

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 15

0

36

Toro 39-6530

See Supercession: 98-5008
(Superseded to 98-5008)

$141.99

$

Usually ships in 3-6 days

0

37

Toro 47-5010

DISCONTINUED

$

$

Not available

38

Toro 44-7200

DISCONTINUED

$

$

Not available

39

Toro 44-7210

DISCONTINUED

$

$

Not available

40

Toro 3290-320

NUT-PUSH

$1.99

$

In Stock, Qty 20+

0

41

Toro 44-7170

DISCONTINUED

$

$

Not available

42

Toro 44-7160

DISCONTINUED

$

$

Not available
