56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) ENGINE PLATE AND SHIFT ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

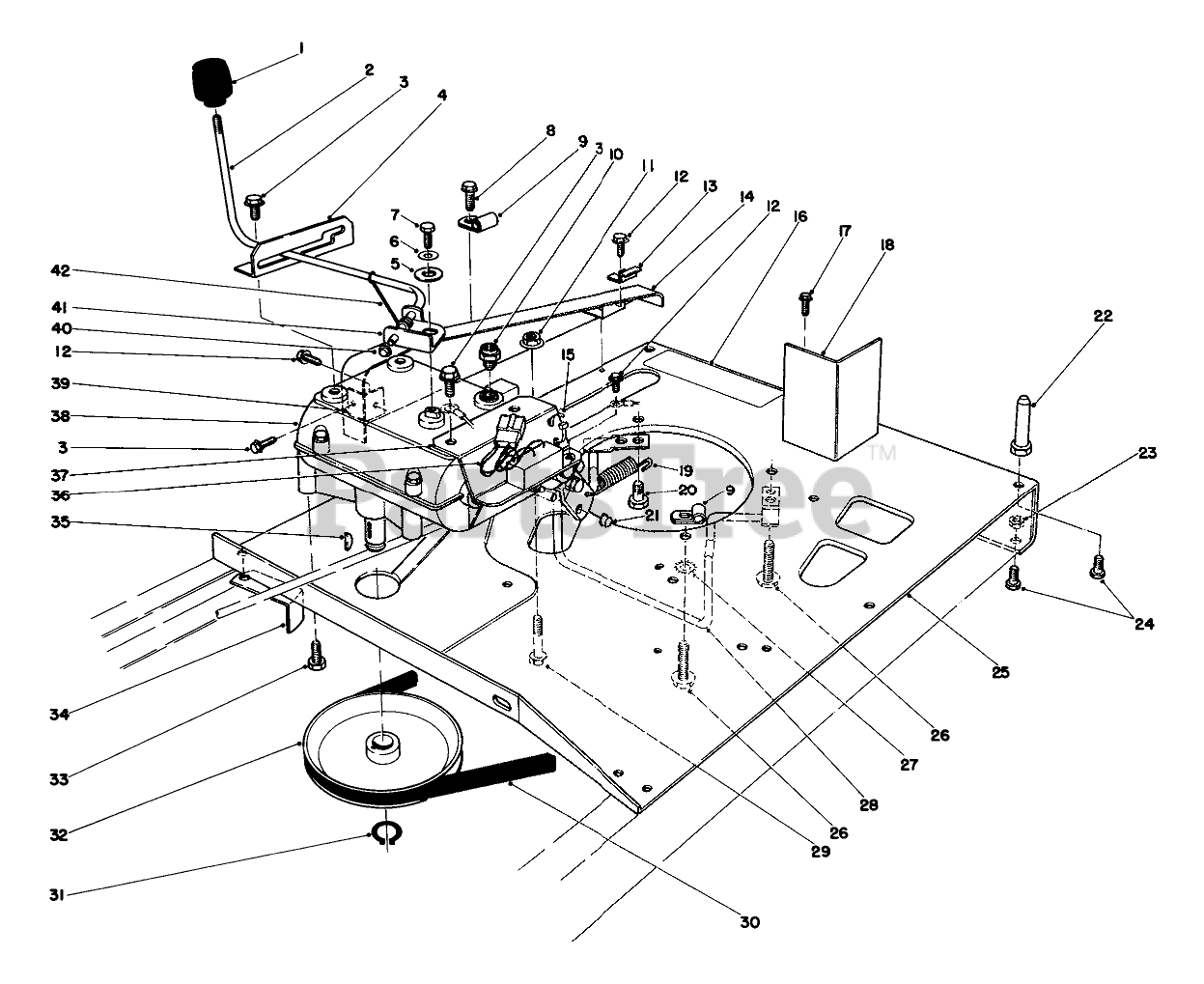

ENGINE PLATE AND SHIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 233-37

KNOB

$31.99

$

Usually ships in 3-6 days

0

2

Toro 44-7180

SHIFT LEVER

$296.99

$

Usually ships in 3-6 days

0

3

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

4

Toro 44-7190

SHIFT LEVER GATE

$

$

Not available

5

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 3290-346

PUSH-ON 93-3236

$7.99

$

Usually ships in 3-6 days

0

7

Toro 329-3

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 32144-15

SCREW-HHFTF

$9.49

$

Usually ships in 3-6 days

0

9

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

10

Toro 28-4250

NEUTRAL SWITCH

$40.99

$

Usually ships in 3-6 days

0

11

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 20+

0

12

Toro 12-3270

SCREW

$3.49

$

In Stock, only 2 left!

0

13

Toro 44-7350

Clamp-Cable

$

$

Not available

14

Toro 44-7230

Chain Guard

$

$

Not available

15

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

16

Toro 19-5850

Decal

$

$

Not available

17

Toro 32104-11

Screw

$

$

Currently unavailable

18

Toro 19-9880

Baffle-Carb

$

$

Not available

19

Toro 26-6700

SPRING-RETURN, BRAKE

$20.99

$

Usually ships in 3-6 days

0

20

Toro 32140-45

Screw-HH

$5.99

$

Usually ships in 3-6 days

0

21

Toro 3290-363

PUSH ON SPEED NUT 1/4

$

$

Not available

22

Toro 25-1530

PIN-MOUNTING, LOWER

$33.99

$

Usually ships in 3-6 days

0

23

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

24

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 39-6750

Plate-Engine

$

$

Not available

26

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

In Stock, Qty 5

0

27

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

28

Toro 26-5740

Belt Guide

$

$

Not available

29

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

30

Toro 19-2650

V-BELT

$19.99

$

In Stock, only 1 left!

0

31

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, Qty 17

0

32

Toro 74085

Pulley

$

$

Currently unavailable

33

Toro 32140-61

5/16-18 X 5/8 SEMS SC

$

$

Not available

34

Toro 17-2230

TRANS BELT RET B

$

$

Not available

35

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 20+

0

36

Toro 39-6530

Control Module
(Superseded to 98-5008)

$141.99

$

Usually ships in 3-6 days

0

37

Toro 47-5010

Mount Module

$

$

Not available

38

Toro 44-7200

TRANSMISSION

$

$

Not available

39

Toro 44-7210

CHAIN GUARD BRKT B

$

$

Not available

40

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

41

Toro 44-7170

SHIFT LEVER CLAMP

$

$

Not available

42

Toro 44-7160

Spring-Shift Rod

$

$

Not available
