56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) Rewind Starter No. 590420 Parts Diagram

Rear-Engine Riding Mower

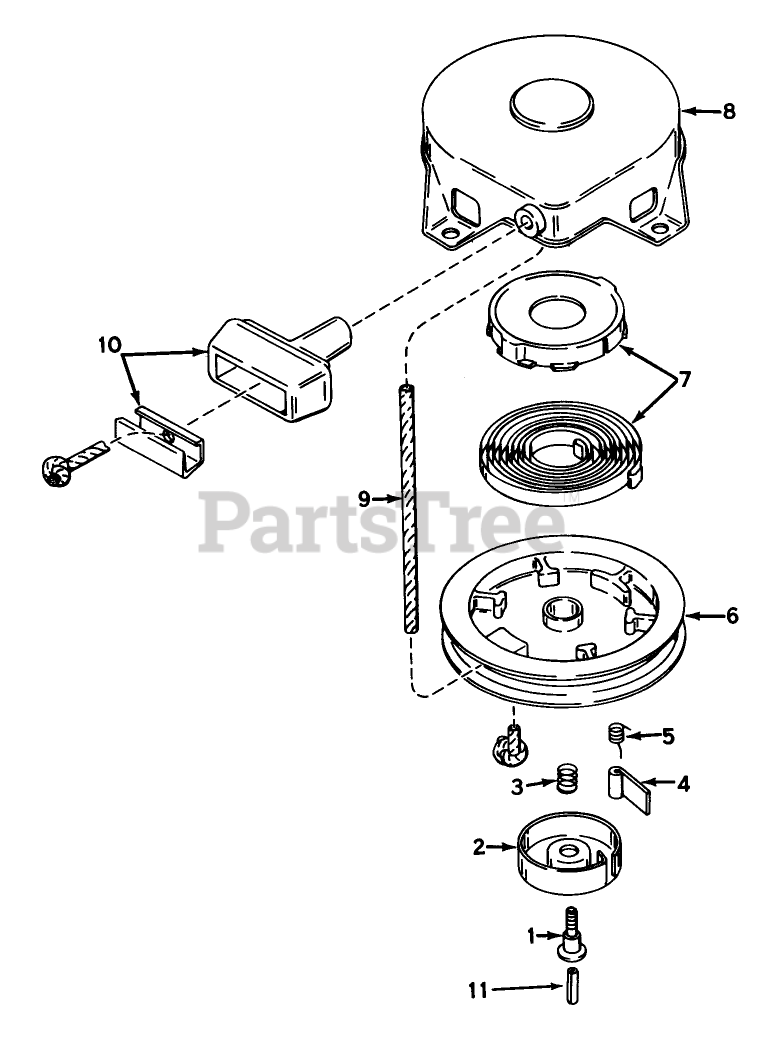

Rewind Starter No. 590420 Parts Diagram

  • Title

1

Toro 590409A

Screw

Note: Note: Obtain these parts from your local Tecumseh Dealer.

$

$

Currently unavailable

2

Toro 590410

Retainer

Note: Note: Obtain these parts from your local Tecumseh Dealer.

$

$

Currently unavailable

3

Toro 590411

Spring-Brake

Note: Note: Obtain these parts from your local Tecumseh Dealer.

$

$

Currently unavailable

4

Toro 590148

Dog-Starter

Note: Note: Obtain these parts from your local Tecumseh Dealer.

$

$

Currently unavailable

5

Toro 590412

Spring-Dog

Note: Note: Obtain these parts from your local Tecumseh Dealer.

$

$

Currently unavailable

6

Toro 590413A

Pulley

Note: Note: Obtain these parts from your local Tecumseh Dealer.

$

$

Currently unavailable

7

Toro 590414

Spring Keeper Assy

Note: Note: Obtain these parts from your local Tecumseh Dealer.

$

$

Currently unavailable

8

Toro 590536

Housing Assy., Starter (Incl. Ref. #1)

Note: Note: Obtain these parts from your local Tecumseh Dealer.

$

$

Currently unavailable

9

Toro 590451a

Rope-Starter

Note: Note: Obtain these parts from your local Tecumseh Dealer.

$

$

Currently unavailable

10

Toro 590387

Assy., Starter

Note: Note: Obtain these parts from your local Tecumseh Dealer.

$

$

Currently unavailable

11

Toro 590459

Centering

Note: Note: Obtain these parts from your local Tecumseh Dealer.

$

$

Currently unavailable
