56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) Tecumseh Engine Model No. V70-125183d Parts Diagram

Rear-Engine Riding Mower

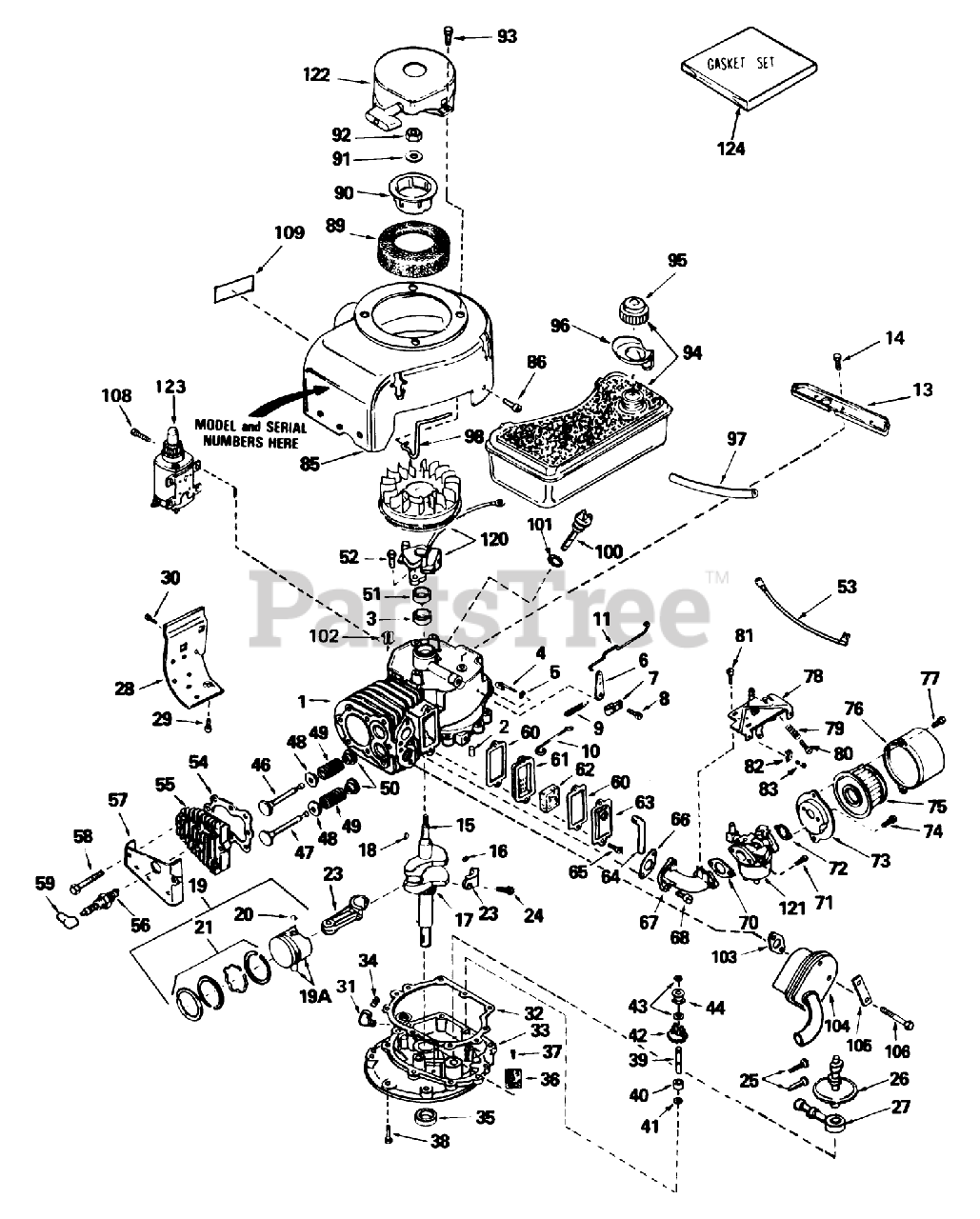

Tecumseh Engine Model No. V70-125183d Parts Diagram

  • Title

1

Toro 34172

Cylinder Assy. (Incl. Nos. 2, 4 44)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

3

Toro 32630

Oil Seal

$

$

Currently unavailable

4

Toro 30669

Rod, Governor (Incl. Nos. 146)

$

$

Currently unavailable

5

Toro 28277

Washer-Flat

$

$

Currently unavailable

6

Toro 31357

Lever-Governor

$

$

Currently unavailable

7

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

8

Toro 650548

Screw

$

$

Currently unavailable

9

Toro 31361

Spring Governor

$

$

Currently unavailable

10

Toro 32582

Link Governor Spring

$

$

Currently unavailable

11

Toro 31823

Link Governor
(Superseded to 742364)

$

$

Not available

13

Toro 34105

Bracket-Blower Housing

$

$

Currently unavailable

14

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

15

Toro 34890

Crankshaft Assembly (Incl. Ref. #16 17)

$

$

Currently unavailable

16

Toro 29783

Pin, Groove

$

$

Currently unavailable

17

Toro 27884

Gear-Crankshaft

$

$

Currently unavailable

18

Toro 32589

Key-Flywheel

$

$

Currently unavailable

19

Toro 34517

Piston, Pin Ring Assy. (Std.) (Incl. Ref. #19A, 20 21)

$

$

Currently unavailable

19

Toro 34518

Piston, Pin Ring Assy. (.010 oversize) (Incl. Ref. #19A, 20 21 )

$

$

Currently unavailable

19

Toro 34519

Piston, Pin Ring Assy. (.020 oversize) (Incl. Ref. #19A, 20 21)

$

$

Currently unavailable

19A

Toro 32592B

Piston Pin Assy. (Std.) (Incl. Ref. #20)

$

$

Currently unavailable

19A

Toro 32593B

Piston Pin Assy. (.010 oversize) (Incl. Ref. #20)

$

$

Currently unavailable

19A

Toro 32594B

Piston Pin Assy-. (.020 oversize) (Incl. Ref. #20)

$

$

Currently unavailable

20

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

21

Toro 32595

ORing

$

$

Currently unavailable

21

Toro 32596

Ring Set (.010" OS)

$

$

Currently unavailable

21

Toro 32597

Ring Set (.020" OS)

$

$

Currently unavailable

23

Toro 32591C

Rod Assy., Connecting (Incl. Nos. 10 18)

$

$

Currently unavailable

24

Toro 650662B

Bolt, Connecting Rod

$

$

Currently unavailable

25

Toro 34034

Lifter-Valve

$

$

Currently unavailable

26

Toro 32114

Screw

$

$

Currently unavailable

27

Toro 31356

Pump, Oil

$

$

Currently unavailable

28

Toro 30622

Emnsion, Blower Housing

$

$

Currently unavailable

29

Toro 650128

Screw

$

$

Currently unavailable

30

Toro 30688

Screw

$

$

Currently unavailable

31

Toro 29573

Elbow, 90

$

$

Currently unavailable

32

Toro 30684

Gasket-Cover, Cylinder

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

33

Toro 31471C

Flange Assy., Mounting (Incl. Ref. #34 thru 37 39)

$

$

Currently unavailable

34

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

35

Toro 27897

Seal-Oil

$

$

Currently unavailable

36

Toro 31355

Screen-Oil Filter

$

$

Currently unavailable

37

Toro 29117

Screw

$

$

Currently unavailable

38

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

39

Toro 30668

Shaft, Governor

$

$

Currently unavailable

40

Toro 31707A

Spacer Assy. Governor (Incl. Ref. #41)

$

$

Currently unavailable

41

Toro 30590A

Washer-Flat

$

$

Currently unavailable

42

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

43

Toro 29193

Ring-Retaining

$

$

Currently unavailable

44

Toro 30588A

Spool-Governor

$

$

Currently unavailable

46

Toro 32783

Valve, Intake (Standard)(Incl. No. 9)

$

$

Currently unavailable

46

Toro 32784

Valve, Intake (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

47

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

47

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

48

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

49

Toro 27881

Spring-Valve

$

$

Currently unavailable

50

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

51

Toro 33876

Gasket Stator

$

$

Currently unavailable

52

Toro 650489

Screw

$

$

Currently unavailable

53

Toro 610683

SPOOL RETAINER (10-PK)

$

$

Not available

54

Toro 32631

Gasket-Cylinder Head

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

55

Toro 30938A

CYLINDER HEAD

$

$

Currently unavailable

56

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

56

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

57

Toro 30939A

Cover-Head, Cylinder

$

$

Currently unavailable

58

Toro 650697A

Screw (5/16-18 X 2-1/2)

$

$

Currently unavailable

59

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

60

Toro 27896

Gasket-Breather

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

61

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

62

Toro 28424

Element-Breather

$

$

Currently unavailable

63

Toro 28425

Cover-Valve

$

$

Currently unavailable

64

Toro 27627

Tube-Breather

$

$

Currently unavailable

65

Toro 650128

Screw

$

$

Currently unavailable

66

Toro 27915

Gasket-Intake

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

67

Toro 32632

Pipe-Intake
(Superseded to 741323)

$

$

Not available

68

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

$

$

Currently unavailable

70

Toro 26756

Gasket

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

71

Toro 650372

Screw-Hex Hd.

$

$

Currently unavailable

72

Toro 27272

Gasket

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

73

Toro 31691

Bracket

$

$

Currently unavailable

74

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

75

Toro 30727

Element

$

$

Currently unavailable

76

Toro 31715

Body-Air Cleaner
(Superseded to 742361)

$

$

Not available

77

Toro 650152

Screw

$

$

Currently unavailable

78

Toro 32181A

Control Assy.Speed (Incl. Ref. #79 80)

$

$

Currently unavailable

79

Toro 31342

Spring-Compression

$

$

Currently unavailable

80

Toro 650549

Screw

$

$

Currently unavailable

81

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

82

Toro 27793

Conduit

$

$

Currently unavailable

83

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

85

Toro 32629A

Housing Blower

$

$

Currently unavailable

86

Toro 29747A

Screw, Hex Hd.

$

$

Currently unavailable

89

Toro 590417

Screen, Air

$

$

Currently unavailable

90

Toro 32125

Cup-Starter

$

$

Currently unavailable

91

Toro 650815

Washer-Belleville

$

$

Currently unavailable

92

Toro 8116

DISCONTINUED

$

$

Not available

93

Toro 29716

Screw

$

$

Currently unavailable

94

Toro 32926

Tank Assy., Fuel (Incl. No. 127)

$

$

Currently unavailable

95

Toro 33032

Cap-Fuel
(Superseded to 702818)

$

$

Not available

96

Toro 33548

Deflector-Fuel

$

$

Currently unavailable

97

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

98

Toro 33549

Clamp, Tank Holdown

$

$

Currently unavailable

100

Toro 34165

Dipstick, Oil (Incl. No. 45)

$

$

Currently unavailable

101

Toro 29673

Gasket

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

102

Toro 27275

51004 GIL ROTARY TI

$3.23

$

Usually ships in 3-6 days

0

103

Toro 27930

Gasket Exhaust

Note: Indicates items included in gasket set part no. 33239.

$

$

Currently unavailable

104

Toro 391023

Muffler

$

$

Currently unavailable

105

Toro 31588

62513 SNWTHWR W/284

$3.23

$

Usually ships in 3-6 days

0

106

Toro 650696

Screw Hex Hd.

$

$

Currently unavailable

108

Toro 30688

Screw

$

$

Currently unavailable

109

Toro 34374

Decal, Instruction

$

$

Currently unavailable

120

Toro 611043

Magneto(The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually,as shown in parts list.)

$

$

Currently unavailable

121

Toro 631449

Carburetor

$

$

Currently unavailable

122

Toro 590420

Starter, Rewind

$

$

Currently unavailable

123

Toro 33606

Tine Shaft
(Superseded to 701025)

$

$

Not available

124

Toro 33239

Gasket Set

$

$

Currently unavailable
