56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) ENGINE AND AXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

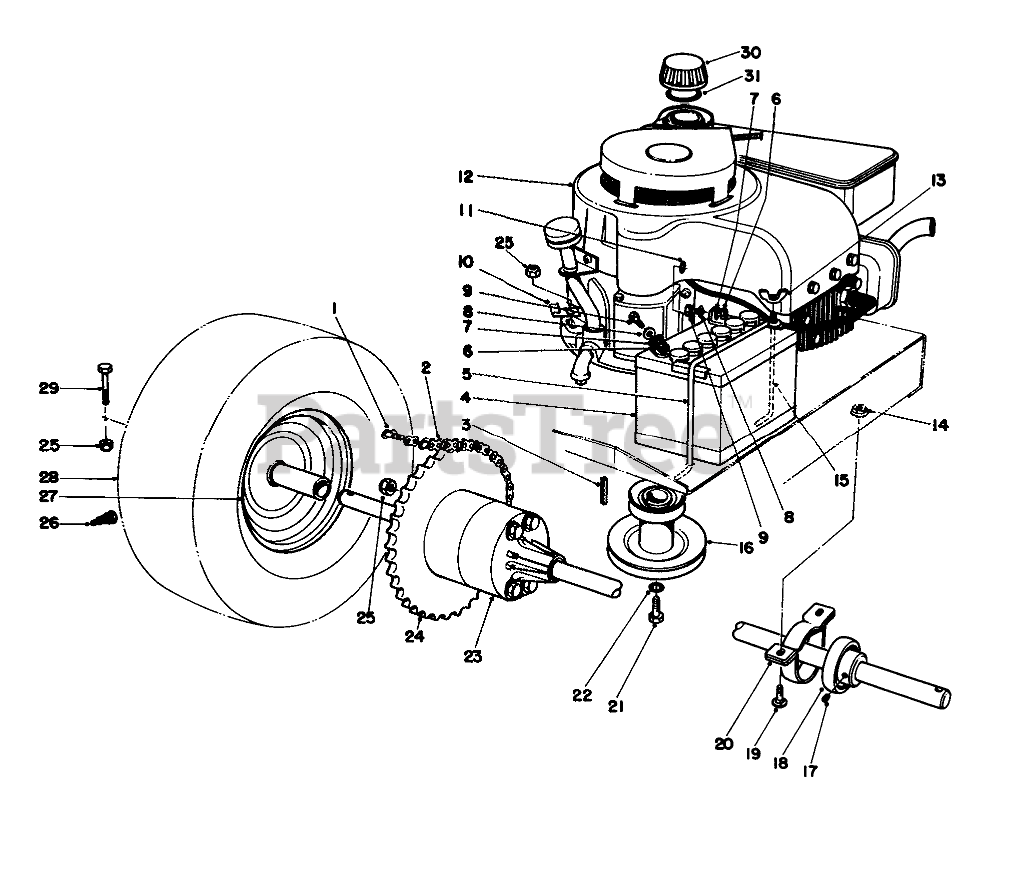

ENGINE AND AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

2

Toro 44-7150

Chain-Roller (Incl. Ref. #1)
(Superseded to 67-0910)

$

$

Not available

3

Toro 3-0971

KEY

$

$

Not available

4

Toro 26-7290

BATTERY

$

$

Not available

5

Toro 12-5700

Battery Clamp

$

$

Not available

6

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

7

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 2412-67

CLAMP

$

$

Not available

11

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

12

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

13

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

14

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0

16

Toro 47-5020

ENGINE PULLEY BO

$216.99

$

Usually ships in 3-6 days

0

17

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

18

Toro 47-1490

Bearing (Incl. Ref. #17)

$70.99

$

Usually ships in 3-6 days

0

19

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

20

Toro 47-1480

RTNR-PILLOW BLK

$55.99

$

Usually ships in 3-6 days

0

21

Toro 3211-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

22

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

23

Differential

$

$

Not available

24

Toro 44-7290

Sprocket

$

$

Not available

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

27

Toro 44-9760

WHEEL-REAR

$392.99

$

Usually ships in 3-6 days

0

28

Toro 231-96

Tire
(Superseded to 231-115)

$97.99

$

Usually ships in 3-6 days

0

29

Toro 46-2510

Bolt
(Superseded to 46-2511)

$3.49

$

Usually ships in 3-6 days

0

30

Toro 42-0682

Gas Cap Assembly (Incl. Ref. #31)

$

$

Not available

31

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

Toro 232-40

Inner Tube
(Superseded to 232-38)

Note: Service Replacement Part

$154.99

$

Usually ships in 3-6 days

0
