56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) Tecumseh Engine Model No. V70-125183e Parts Diagram

Rear-Engine Riding Mower

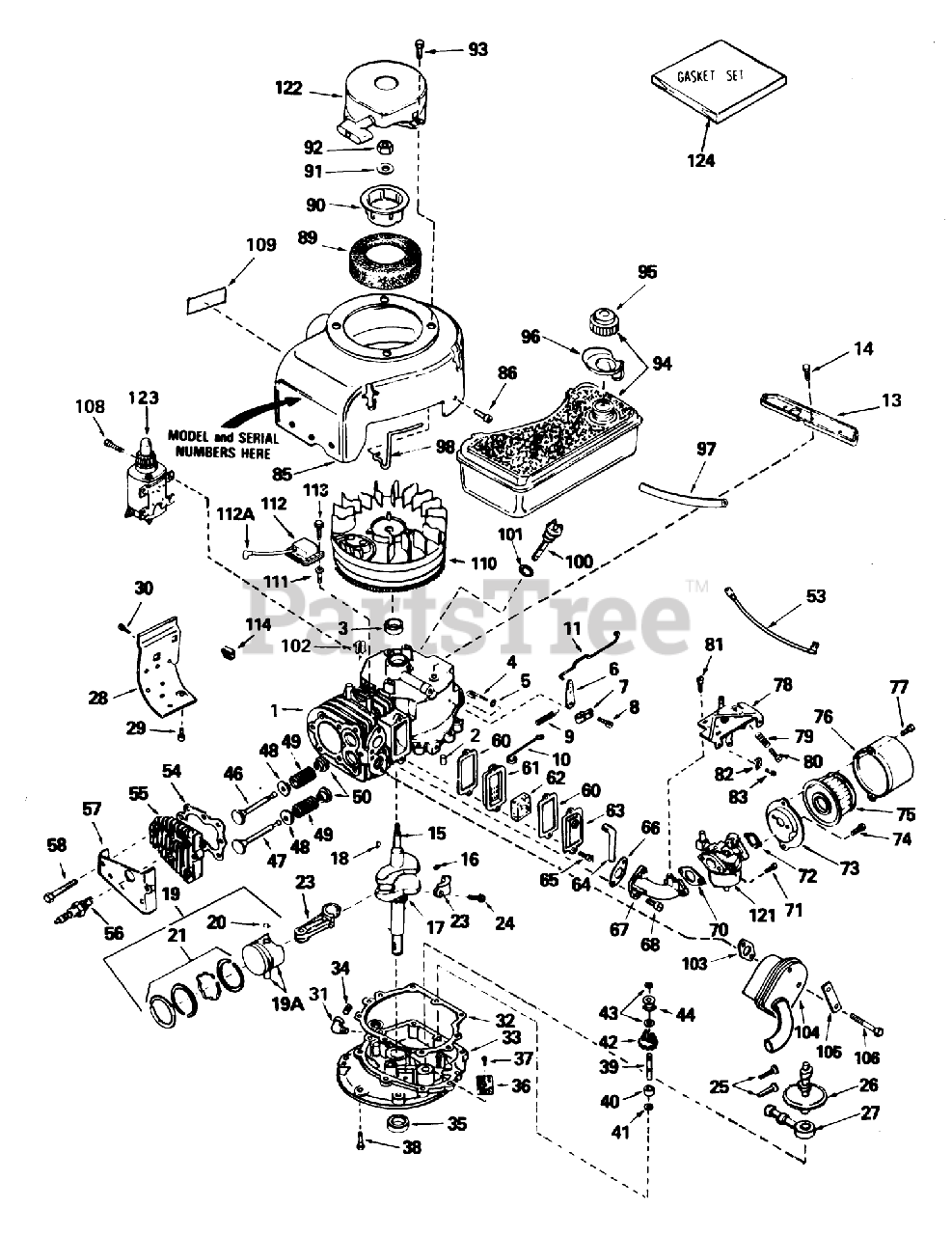

Tecumseh Engine Model No. V70-125183e Parts Diagram

  • Title

1

Toro 34172A

Cylinder Assy., (Incl. Ref. #2, 3, 100 101)

$

$

Currently unavailable

2

Toro 27652

Pin-Dowel

$

$

Currently unavailable

3

Toro 32630

Oil Seal

$

$

Currently unavailable

4

Toro 30669

Rod, Governor (Incl. Nos. 146)

$

$

Currently unavailable

5

Toro 28277

Washer-Flat

$

$

Currently unavailable

6

Toro 31357

Lever-Governor

$

$

Currently unavailable

7

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

8

Toro 650548

Screw

$

$

Currently unavailable

9

Toro 31361

Spring Governor

$

$

Currently unavailable

10

Toro 32582

Link Governor Spring

$

$

Currently unavailable

11

Toro 31823

Link Governor
(Superseded to 742364)

$

$

Not available

13

Toro 34105

Bracket-Blower Housing

$

$

Currently unavailable

14

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

15

Toro 35220

Crankshaft Assy. (Incl. Ref. #16 17)

$

$

Currently unavailable

16

Toro 29783

Pin, Groove

$

$

Currently unavailable

17

Toro 27884

Gear-Crankshaft

$

$

Currently unavailable

18

Toro 32589

Key-Flywheel

$

$

Currently unavailable

19

Toro 34517

Piston, Pin Ring Assy. (Std.) (Incl. Ref. #19A, 20 21)

$

$

Currently unavailable

19

Toro 34518

Piston, Pin Ring Assy. (.010 oversize) (Incl. Ref. #19A, 20 21 )

$

$

Currently unavailable

19

Toro 34519

Piston, Pin Ring Assy. (.020 oversize) (Incl. Ref. #19A, 20 21)

$

$

Currently unavailable

19A

Toro 32592B

Piston Pin Assy. (Std.) (Incl. Ref. #20)

$

$

Currently unavailable

19A

Toro 32593B

Piston Pin Assy. (.010 oversize) (Incl. Ref. #20)

$

$

Currently unavailable

19A

Toro 32594B

Piston Pin Assy-. (.020 oversize) (Incl. Ref. #20)

$

$

Currently unavailable

20

Toro 27888

See Supercession: 702895
(Superseded to 702895)

$

$

Not available

21

Toro 32595

ORing

$

$

Currently unavailable

21

Toro 32596

Ring Set (.010" OS)

$

$

Currently unavailable

21

Toro 32597

Ring Set (.020" OS)

$

$

Currently unavailable

23

Toro 32591C

Rod Assy., Connecting (Incl. Nos. 10 18)

$

$

Currently unavailable

24

Toro 650662B

Bolt, Connecting Rod

$

$

Currently unavailable

25

Toro 34034

Lifter-Valve

$

$

Currently unavailable

26

Toro 32114

Screw

$

$

Currently unavailable

27

Toro 31356

Pump, Oil

$

$

Currently unavailable

28

Toro 30622A

Extension-Blower Hsng.

$

$

Currently unavailable

29

Toro 650128

Screw

$

$

Currently unavailable

30

Toro 30688

Screw

$

$

Currently unavailable

31

Elbow, 90? Street, 1/4-18 thread (Can be purchased locally)

$

$

Not available

32

Toro 30684

Gasket-Cover, Cylinder

Note: Indicates parts included in Gasket Set, Ref. Num 124.

$

$

Currently unavailable

33

Toro 31471C

Flange Assy., Mounting (Incl. Ref. #34 thru 37 39)

$

$

Currently unavailable

34

Toro 27642

Plug-Drain, Oil (SQH 1/4-18)

$

$

Currently unavailable

35

Toro 27897

Seal-Oil

$

$

Currently unavailable

36

Toro 31355

Screen-Oil Filter

$

$

Currently unavailable

37

Toro 29117

Screw

$

$

Currently unavailable

38

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

39

Toro 30668

Shaft, Governor

$

$

Currently unavailable

40

Toro 31707A

Spacer Assy. Governor (Incl. Ref. #41)

$

$

Currently unavailable

41

Toro 30590A

Washer-Flat

$

$

Currently unavailable

42

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

43

Toro 29193

Ring-Retaining

$

$

Currently unavailable

44

Toro 30588A

Spool-Governor

$

$

Currently unavailable

46

Toro 32783

Valve, Intake (Standard)(Incl. No. 9)

$

$

Currently unavailable

46

Toro 32784

Valve, Intake (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

47

Toro 27878A

Valve, Exhaust (Standard)(Incl. No. 9)

$

$

Currently unavailable

47

Toro 27880A

Valve, Exhaust (1/32" oversize)(Incl. No. 9)

$

$

Currently unavailable

48

Toro 27882

Cap-Spring, Valve

$

$

Currently unavailable

49

Toro 27881

Spring-Valve

$

$

Currently unavailable

50

Toro 32581

Keeper-Spring, Valve

$

$

Currently unavailable

53

Toro 35232

Wire-Ground
(Superseded to 742435)

$

$

Not available

54

Toro 32631

Gasket-Cylinder Head

Note: Indicates parts included in Gasket Set, Ref. Num 124.

$

$

Currently unavailable

55

Toro 30938A

CYLINDER HEAD

$

$

Currently unavailable

56

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

56

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

57

Toro 30939A

Cover-Head, Cylinder

$

$

Currently unavailable

58

Toro 650697A

Screw (5/16-18 X 2-1/2)

$

$

Currently unavailable

60

Toro 27896

Gasket-Breather

Note: Indicates parts included in Gasket Set, Ref. Num 124.

$

$

Currently unavailable

61

Toro 28423

Body-Breather
(Superseded to 704585)

$37.99

$

Usually ships in 3-6 days

0

62

Toro 28424

Element-Breather

$

$

Currently unavailable

63

Toro 28425

Cover-Valve

$

$

Currently unavailable

64

Toro 27627

Tube-Breather

$

$

Currently unavailable

65

Toro 650128

Screw

$

$

Currently unavailable

66

Toro 27915

Gasket-Intake

Note: Indicates parts included in Gasket Set, Ref. Num 124.

$

$

Currently unavailable

67

Toro 32632

Pipe-Intake
(Superseded to 741323)

$

$

Not available

68

Toro 650378

Screw (T-30, 5/16-18x1-3/32)

$

$

Currently unavailable

70

Toro 26756

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 124.

$

$

Currently unavailable

71

Toro 650372

Screw-Hex Hd.

$

$

Currently unavailable

72

Toro 27272

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 124.

$

$

Currently unavailable

73

Toro 31691

Bracket

$

$

Currently unavailable

74

Toro 28820

Screw (10-32 x 1/2)

$

$

Currently unavailable

75

Toro 30727

Element

$

$

Currently unavailable

76

Toro 31715

Body-Air Cleaner
(Superseded to 742361)

$

$

Not available

77

Toro 650152

Screw

$

$

Currently unavailable

78

Toro 32181A

Control Assy.Speed (Incl. Ref. #79 80)

$

$

Currently unavailable

79

Toro 31342

Spring-Compression

$

$

Currently unavailable

80

Toro 650549

Screw

$

$

Currently unavailable

81

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

82

Toro 27793

Conduit

$

$

Currently unavailable

83

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

85

Toro 32629B

Housing-Blower

$

$

Currently unavailable

86

Toro 29747B

Screw

$

$

Currently unavailable

89

Toro 35009

Screen-Starter

$

$

Currently unavailable

90

Toro 32125

Cup-Starter

$

$

Currently unavailable

91

Toro 650815

Washer-Belleville

$

$

Currently unavailable

92

Toro 8116

DISCONTINUED

$

$

Not available

93

Toro 29716

Screw

$

$

Currently unavailable

94

Toro 32926

Tank Assy., Fuel (Incl. No. 127)

$

$

Currently unavailable

95

Toro 33032

Cap-Fuel
(Superseded to 702818)

$

$

Not available

96

Toro 33548

Deflector-Fuel

$

$

Currently unavailable

97

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

98

Toro 33549

Clamp, Tank Holdown

$

$

Currently unavailable

100

Toro 34165

Dipstick, Oil (Incl. No. 45)

$

$

Currently unavailable

101

Toro 29673

Gasket

Note: Indicates parts included in Gasket Set, Ref. Num 124.

$

$

Currently unavailable

102

Toro 29443

Clip-Wire

$

$

Currently unavailable

103

Toro 27930

Gasket Exhaust

Note: Indicates parts included in Gasket Set, Ref. Num 124.

$

$

Currently unavailable

104

Toro 391023

Muffler

$

$

Currently unavailable

105

Toro 31588

62513 SNWTHWR W/284

$3.23

$

Usually ships in 3-6 days

0

106

Toro 650696

Screw Hex Hd.

$

$

Currently unavailable

108

Toro 30688

Screw

$

$

Currently unavailable

109

Toro 34346

Decal-Instruction

$

$

Currently unavailable

110

Toro 611085

Flywheel

$

$

Currently unavailable

111

Toro 650872

Stud

$

$

Currently unavailable

112

Toro 34443A

Solid State

$

$

Currently unavailable

112A

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

113

Toro 650814

Screw

$

$

Currently unavailable

114

Toro 34246

Clip, Spring

$

$

Currently unavailable

121

Toro 631449

Carburetor

$

$

Currently unavailable

122

Toro 590420A

tarter-Rewind

$

$

Currently unavailable

123

Toro 33606

Tine Shaft
(Superseded to 701025)

$

$

Not available

124

Toro 33239

Gasket Set

$

$

Currently unavailable
