56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) Twin Bagger Grass Catcher Model No. 59052 (optional) Parts Diagram

Rear-Engine Riding Mower

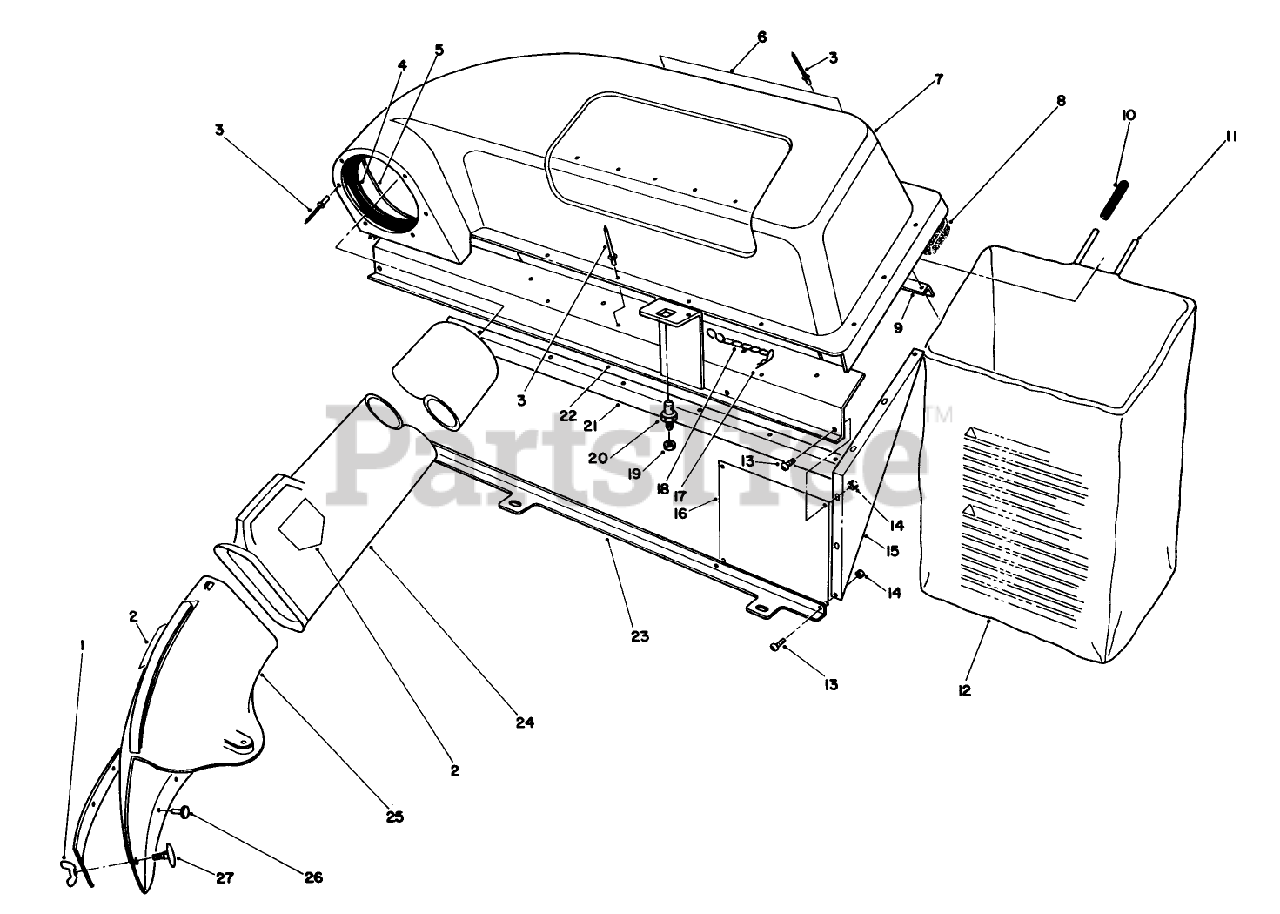

Twin Bagger Grass Catcher Model No. 59052 (optional) Parts Diagram

  • Title

1

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

2

Toro 54-9220

See Supercession: 93-1122
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 10

0

3

Toro 3269-15

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

4

Toro 57-7870

DISCONTINUED

$

$

Not available

5

Toro 57-7860

DISCONTINUED

$

$

Not available

6

Toro 57-7840

TWIN BAGGER DECAL

$

$

Not available

7

Toro 57-7940

DISCONTINUED

$

$

Not available

8

Toro 57-7820

FOAM SEAL

$

$

Not available

9

Toro 57-7880

BAG FRAME BRKT

$

$

Not available

10

Toro 47-2550

GRIP-HANDLE, BAG

$4.49

$

Usually ships in 3-6 days

0

11

Toro 57-7960

BAG FRAME

$

$

Not available

12

Toro 57-7990

BAG

$

$

Not available

13

Toro 3251-2

SCREW-PPH

$0.99

$

In Stock, Qty 5

0

14

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 57-7980

See Supercession: 57-7980-03
(Superseded to 57-7980-03)

$

$

Not available

16

Toro 57-7850

DISCONTINUED

$

$

Not available

17

Toro 3290-290

DISCONTINUED

$

$

Not available

18

Toro 2830-9

DISCONTINUED

$

$

Not available

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 25-1510

DISCONTINUED

$

$

Not available

21

Toro 57-7890

BAG SUPPORT CHANNEL

$

$

Not available

22

Toro 57-7930

Baffle

$

$

Currently unavailable

23

Toro 57-7970

DISCONTINUED

$

$

Not available

24

Toro 25-3610

DUCT ASM

$

$

Not available

25

Toro 26-7160

See Supercession: 60-8680
(Superseded to 60-8680)

$

$

Not available

26

Toro 3295-26

RIVET 3/16 X 7/16

$

$

Not available

27

Toro 3290-391

DISCONTINUED

$

$

Not available
