56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) BODY ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

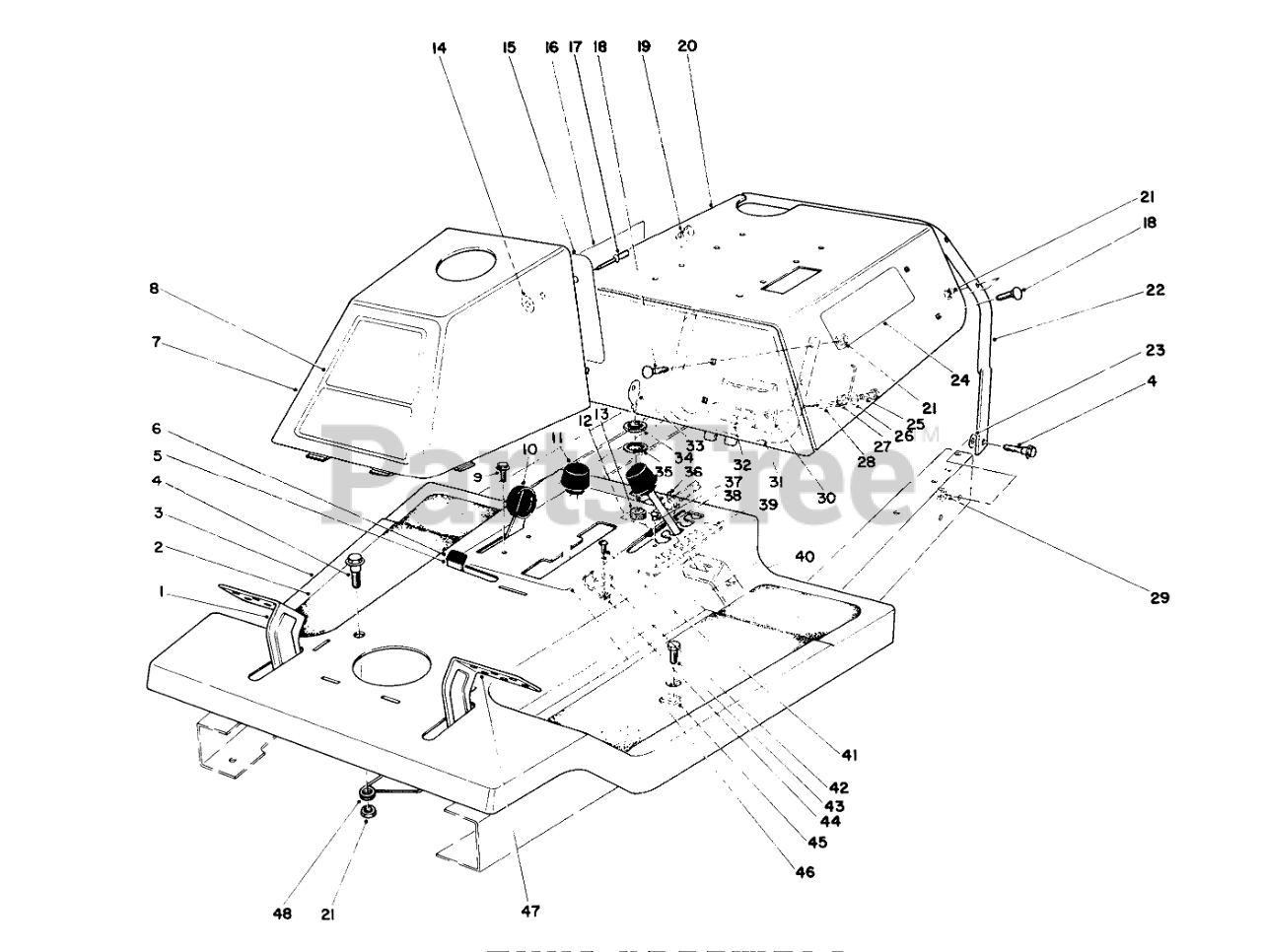

BODY ASSEMBLY Parts Diagram

  • Title

1

Toro 26-5310

Brake Pedal

$

$

Not available

2

Toro 44-7030

TREAD-FOOT

$

$

Not available

3

Toro 44-7340

Front Body Assembly (Incl. Ref. #37, 39, & 46)

$

$

Not available

4

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 7

0

5

Toro 19-1610

Parking Brake
(Superseded to 19-1610-03)

$

$

Not available

6

Toro 19-2200

TIP-PARKING BRAKE

$

$

Not available

7

Toro 12-3459

Tower (Incl. Ref. #14, 15, & 17)
(Superseded to 55-7103)

$

$

Not available

8

Toro 47-5070

725 DECAL

$

$

Not available

9

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

10

Toro 21-4560

THROTTLE CONTROL ASM

$

$

Not available

11

Toro 233-37

KNOB

$31.99

$

Usually ships in 3-6 days

0

12

Toro 39-6580

Clip

$

$

Not available

13

Toro 12-2820

Switch-Starter (Incl. Ref. #33-35)

$

$

Not available

14

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

15

Toro 55-7070

Decal-Tower

$

$

Not available

16

Toro 44-7260

Decal Shift Pattern
(Superseded to 66-6780)

$

$

Not available

17

Toro 3290-409

RIVET

$0.99

$

Usually ships in 3-6 days

0

18

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 9

0

19

Toro 18-2970

CLIP-FUEL LINE

$9.99

$

In Stock, only 4 left!

0

20

Toro 44-7240

Body-Rear

$

$

Not available

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 44-7270

Support-Rear Body

$

$

Not available

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 43-5110

Decal
(Superseded to 67-1300)

$28.99

$

In Stock, only 3 left!

0

25

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 44-9790

Spring-Latch

$

$

Not available

28

Toro 44-9820

LATCH SPACER

$

$

Not available

29

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

30

Toro 44-9810

Latch

$

$

Not available

31

Toro 44-9800

Front Support

$

$

Not available

32

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

33

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 12

0

34

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

35

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 13

0

36

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

37

Toro 3269-3

RIVET-POP

$0.99

$

In Stock, only 4 left!

0

38

Toro 17-9630

Height of Cut Lever

$

$

Not available

39

Toro 17-9610

Height Adjustment Plate

$

$

Not available

40

Toro 32121-51

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

41

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 12

0

42

Toro 43-7450

WIRE CLAMP

$

$

Not available

43

Toro 32104-110

SCREW-HH

$

$

Not available

44

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 10

0

45

Toro 3290-347

NUT-TINNERMAN

$6.49

$

Usually ships in 3-6 days

0

46

Toro 54-9270

DECAL

$

$

Not available

47

Toro 19-1860

Clutch Pedal

$

$

Not available

48

Toro 19-1970

SPRING-PARKING BRAKE

$

$

Not available
