56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) ENGINE AND AXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

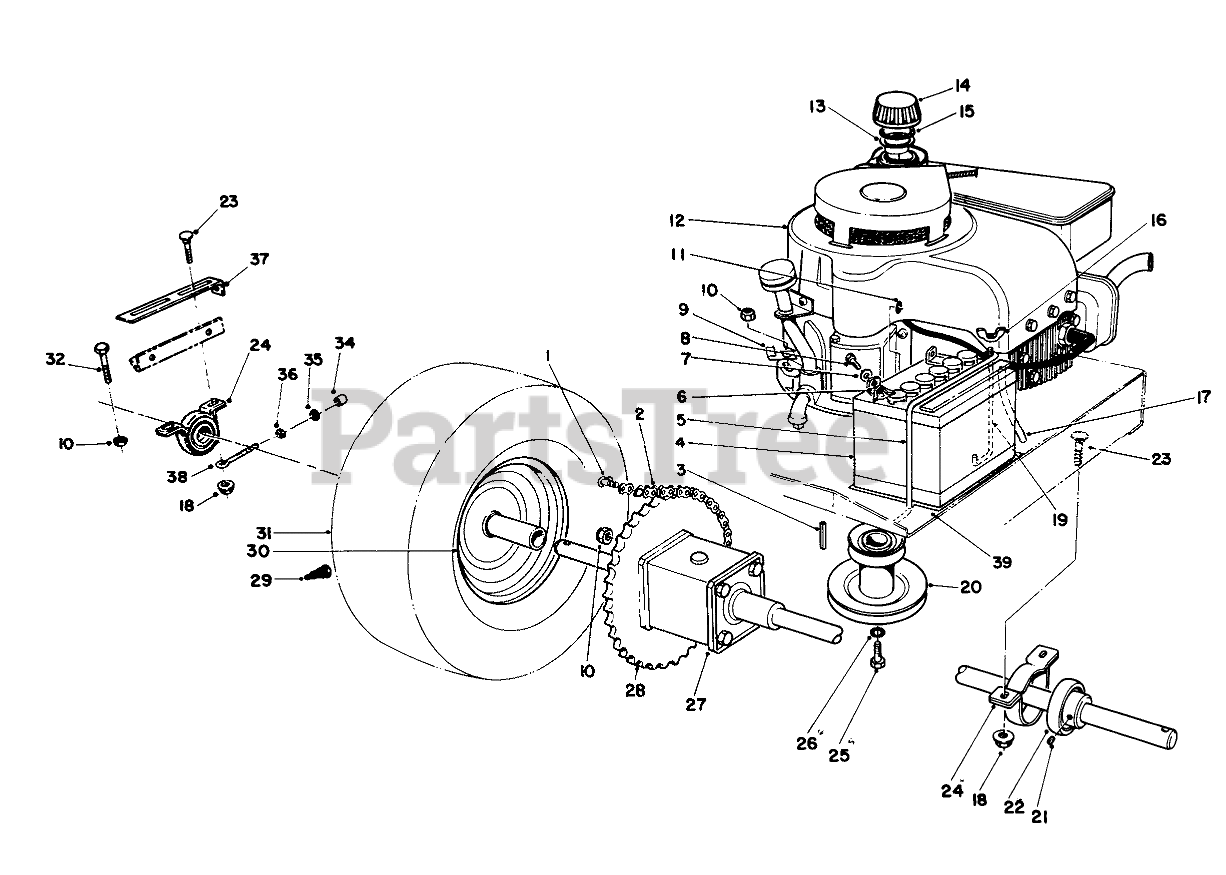

ENGINE AND AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

2

Toro 44-7150

Chain-Roller (Incl. Ref. #1)
(Superseded to 67-0910)

$

$

Not available

3

Toro 3-0971

KEY

$

$

Not available

4

Toro 56-7700

Battery
(Superseded to 105-1692)

$

$

Not available

5

Toro 56-2550

BATTERY HOLDOWN

$14.99

$

Usually ships in 3-6 days

0

6

Toro 32103-22

NUT-WING

$2.99

$

In Stock, only 1 left!

0

7

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 2412-67

CLAMP

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

12

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

13

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

14

Toro 42-0682

Gas Cap Assembly (Incl. Ref. #13, 15)

$

$

Not available

15

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

16

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

17

Toro 56-2540

TUBE-BATT DRAIN/80-2600

$4.49

$

In Stock, only 1 left!

0

18

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

19

Toro 56-7720

POST-BATTERY
(Superseded to 100-6435)

$18.99

$

Usually ships in 3-6 days

0

20

Toro 47-5020

ENGINE PULLEY BO

$216.99

$

Usually ships in 3-6 days

0

21

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

22

Toro 47-1490

Bearing (Incl. Ref. #21)

$70.99

$

Usually ships in 3-6 days

0

23

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

24

Toro 47-1480

RTNR-PILLOW BLK

$55.99

$

Usually ships in 3-6 days

0

25

Toro 3211-6

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

26

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

27

Toro 56-9960

DIFFERENTIAL

$

$

Not available

28

Toro 56-9890

45 T SPROCKET

$

$

Not available

29

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

30

Toro 44-9760

WHEEL-REAR

$392.99

$

Usually ships in 3-6 days

0

31

Toro 231-115

TIRE,PNEU.13X5.00X6

$97.99

$

Usually ships in 3-6 days

0

Toro 232-40

Inner Tube
(Superseded to 232-38)

Note: Service Replacement Part

$154.99

$

Usually ships in 3-6 days

0

32

Toro 46-2510

Bolt
(Superseded to 46-2511)

$3.49

$

Usually ships in 3-6 days

0

33

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

34

Toro 2410-66

VINYL ROD TIP

$

$

Not available

35

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

36

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

37

Toro 61-9990

PLATE-ADJUSTING

$30.99

$

Usually ships in 3-6 days

0

38

Toro 61-9980

SCREW-ADJUSTING

$8.49

$

In Stock, only 1 left!

0

39

Toro 62-4300

PAD-SKID, ANTI

$18.99

$

Usually ships in 3-6 days

0
