56125 (7-25) - Toro Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) FRAME ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

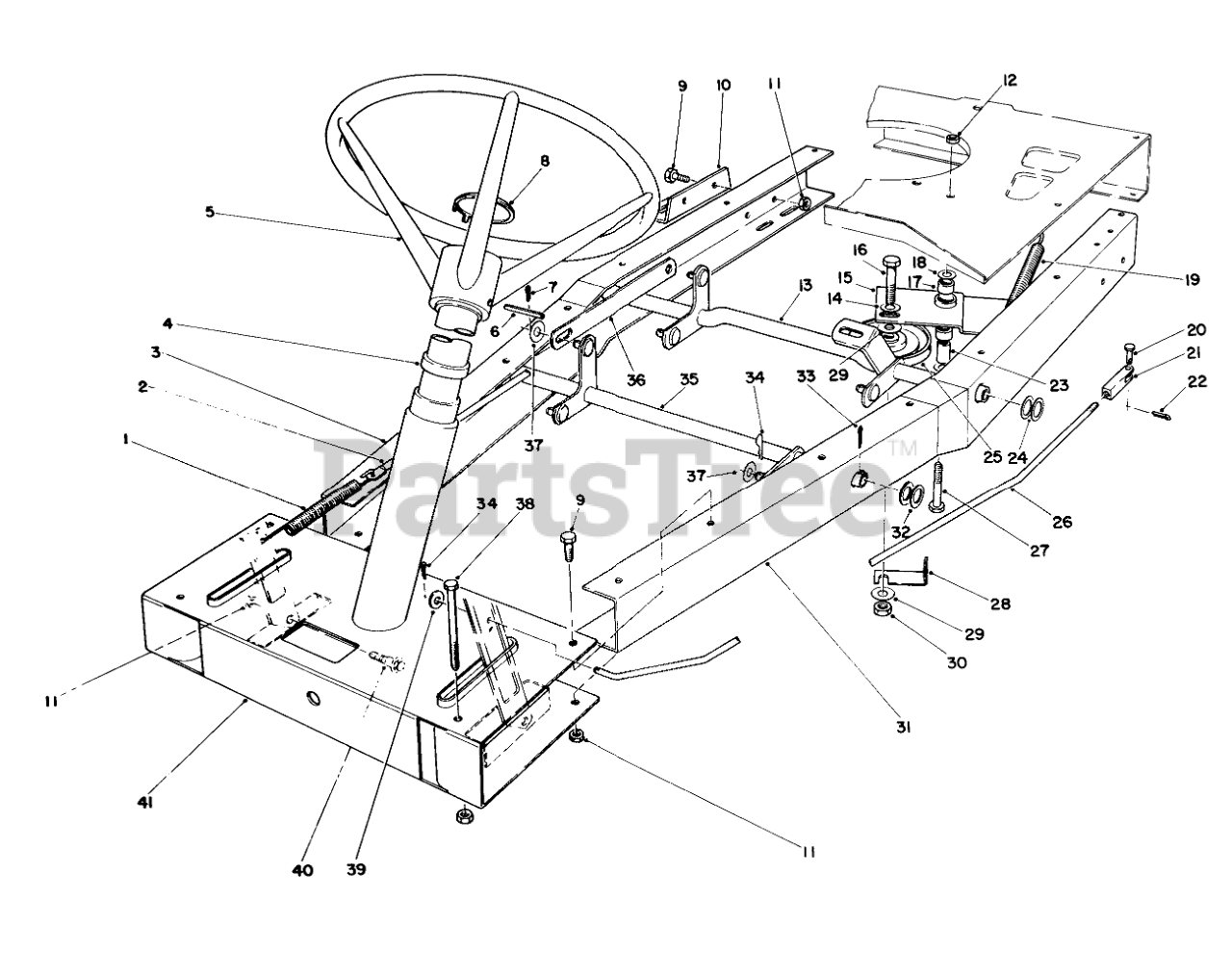

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 26-2740

BRAKE TENSION SPRG O

$

$

Not available

2

Toro 26-5290

Brake Rod

$

$

Not available

3

Toro 44-7120

Frame-Channel R.H.

$

$

Not available

4

Toro 47-5050

STEERING TUBE WA BO

$

$

Not available

5

Toro 49-3240

Steering Wheel (Incl. Ref. #8)

$176.99

$

Usually ships in 3-6 days

0

6

Toro 32121-78

PIN-ROLL

$3.49

$

In Stock, Qty 7

0

7

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

8

Toro 47-2070

Cap-Steering Wheel
(Superseded to 66-6910)

$11.99

$

Usually ships in 3-6 days

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 44-7140

Mount-Axle Brg.
(Superseded to 44-7140-01)

$

$

Not available

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

13

Toro 28-5690

REAR HT ADJ WA B

$

$

Not available

14

Toro 3256-46

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

15

Toro 26-2830

Traction Idler (Incl. Ref. #17)

$

$

Not available

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 19-5340

Clutch Tension Spring

$

$

Not available

20

Toro 283-3

PIN-CLEVIS

$0.99

$

In Stock, only 1 left!

0

21

Toro 282-17

YOKE

$40.99

$

Usually ships in 3-6 days

0

22

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 16

0

23

Toro 26-2610

PIVOT SPACER

$26.99

$

Usually ships in 3-6 days

0

24

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

25

Toro 12-5820

PULLEY-IDLER

$30.99

$

In Stock, Qty 9

0

26

Toro 28-4550

Clutch Rod

$

$

Not available

27

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

28

Toro 12-9020

RETAINER-BELT

$

$

Not available

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

31

Toro 26-2640

LH FRAME CHANNEL B

$

$

Not available

32

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, Qty 6

0

33

Toro 3272-23

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

34

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

35

Toro 17-9890

FRONT LIFT WA B

$

$

Not available

36

Toro 17-9530

Linkage-Height Adj.

$

$

Not available

37

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

38

Toro 322-14

SCREW-HH

$2.99

$

In Stock, Qty 10

0

39

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 7

0

41

Toro 24-7420

Front Frame

$

$

Not available
