56127 (7-25) - Toro Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) SEAT & GAS TANK ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

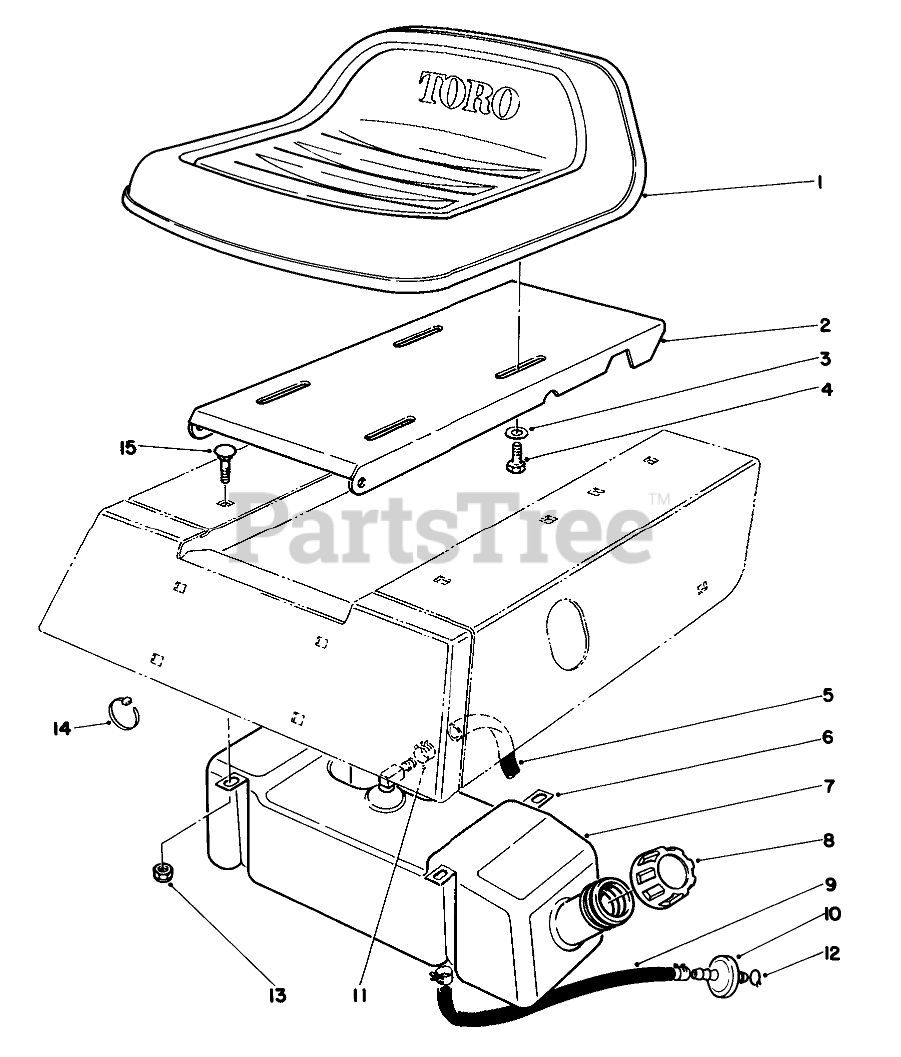

SEAT & GAS TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 38-0850

Seat
(Superseded to 55-8691)

$

$

Not available

2

Toro 67-1240

Base-Seat
(Superseded to 67-1241)

$

$

Not available

3

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 47-2986

HOSE-FUEL

$

$

Not available

6

Toro 67-0950

STRAP-GAS TANK

$

$

Not available

7

Toro 67-1020

GAS TANK

$

$

Not available

8

Toro 55-3574

GAS CAP ASSEMBLY

$14.99

$

In Stock, only 1 left!

0

9

Toro 47-2983

HOSE-FUEL
(Superseded to 109-0296)

$10.99

$

In Stock, only 4 left!

0

10

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 20+

0

11

Toro 2210-185

FUEL HOSE CLAMP

$1.49

$

In Stock, only 4 left!

0

12

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 10

0

15

Toro 3230-20

SCREW-CARR
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0
