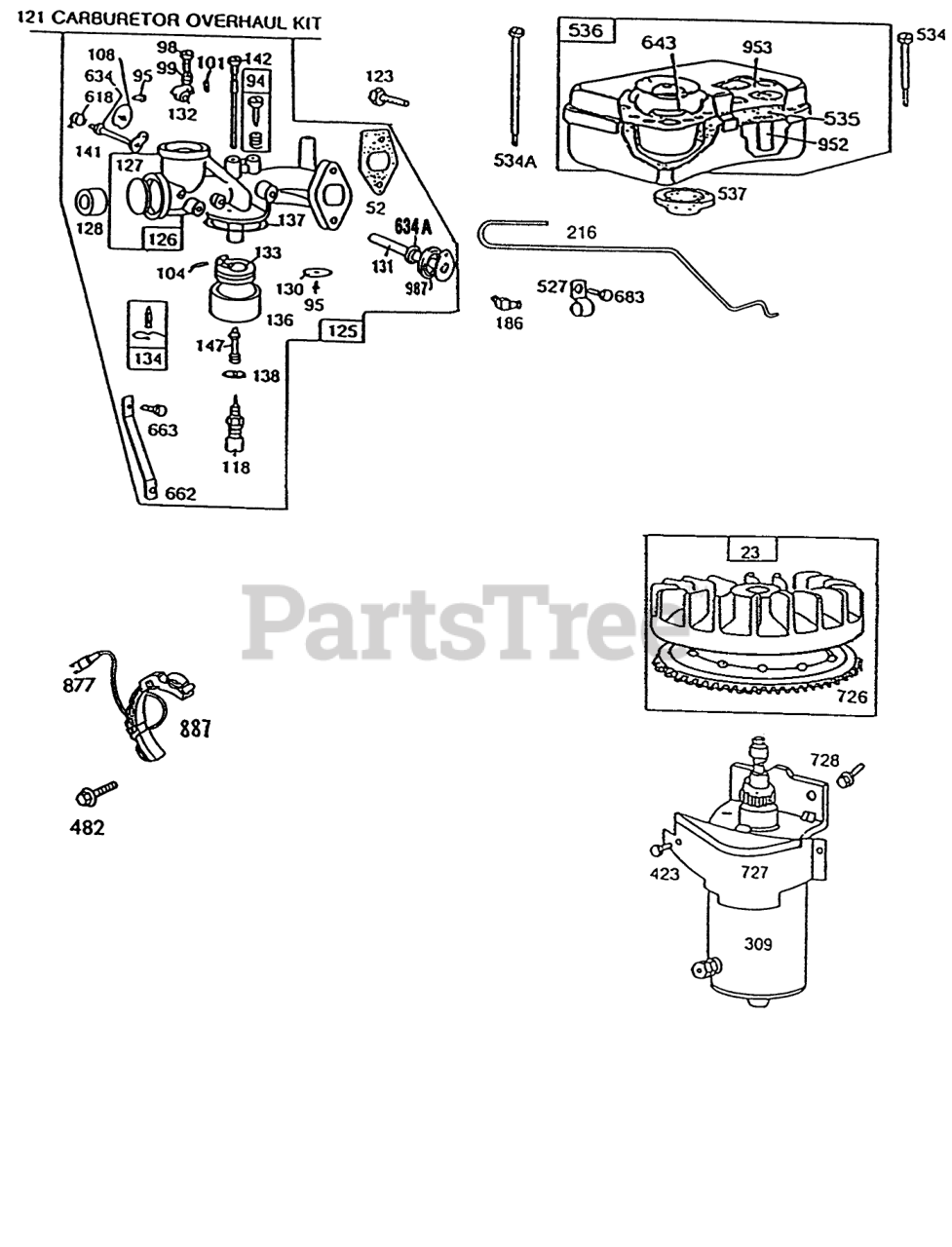

56133 (8-25) - Toro Rear-Engine Riding Mower (SN: 010000001 - 019999999) (1991) BRIGGS & STRATTON MODEL NO. 191707-6021-01 Parts Diagram

Rear-Engine Riding Mower

BRIGGS & STRATTON MODEL NO. 191707-6021-01 Parts Diagram

  • Title

11

Briggs & Stratton 396568

Valve Needle

$20.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 391983

Flywheel

$

$

Not available

52

Briggs & Stratton 270824

Gasket-Carb. Mtg.
(Superseded to 272554S)

$5.49

$

In Stock, Qty 20+

0

94

Briggs & Stratton 292681

Valve Assembly

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

$3.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 222010

Valve

$7.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 394698

Kit-Carburetor

$32.99

$

In Stock, Qty 5

0

123

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

125

Briggs & Stratton 491590

Assembly-Carburetor

$249.99

$

Usually ships in 2-12 days

0

126

Briggs & Stratton 299851

Body Assy. Carburetor

$94.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 221997

Plug

$4.99

$

In Stock, only 1 left!

0

128

Briggs & Stratton 211682

Venturi-Carburetor

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 221986

Valve-Throltle

$7.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 491006

Shaft & Lever, Throttle

$21.99

$

In Stock, only 2 left!

0

132

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 299707

Float-Carburetor

$13.99

$

In Stock, Qty 8

0

134

Briggs & Stratton 394681

Valve-Fuel Inlet

$7.99

$

In Stock, Qty 16

0

136

Briggs & Stratton 221995

Bowl-Float

$8.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 270511

Gasket-Bowl

$3.49

$

In Stock, Qty 9

0

138

Briggs & Stratton 222014

Washer-Bowl
(Superseded to 690618)

$4.99

$

In Stock, Qty 11

0

141

Briggs & Stratton 390684

Shaft and Lever

$16.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 299740

Nozzle-Carburator

$15.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231323

Screw

$24.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 67218

Connector-Fuel
(Superseded to 691609)

$7.49

$

In Stock, Qty 8

0

216

Briggs & Stratton 261612

Link-Choke

$11.99

$

In Stock, only 1 left!

0

309

Motor-Starting (12 V) See Chart for Replacement Parts on Illustrated Pages.

$

$

Not available

423

Briggs & Stratton 93984

Screw
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 221428

Clamp
(Superseded to 690394)

$4.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93622

Screw Air Cleaner

$6.49

$

In Stock, only 2 left!

0

534

Briggs & Stratton 93323

Screw-AirCleaner

$7.49

$

In Stock, only 3 left!

0

535

Briggs & Stratton 270528

Element-Air Cleaner
(Superseded to 270528S)

$15.99

$

In Stock, only 2 left!

0

536

Briggs & Stratton 391399

Cleaner Assy.-Air Uses:
(Superseded to 390379)

$37.99

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 270539

Gasket-Air Cleaner

$8.99

$

Usually ships in 2-12 days

0

618

Briggs & Stratton 261116

Spring Choke

$7.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

634

Briggs & Stratton 271853

Seal
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0

643

Briggs & Stratton 222149

Cup-Air Cleaner

$

$

Not available

662

Briggs & Stratton 222027

Bracket-Carburetor
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 4 left!

0

683

Briggs & Stratton 94419

Screw
(Superseded to 691693)

$3.99

$

In Stock, only 2 left!

0

726

Briggs & Stratton 392134

Gear-Ring (Aluminum) (Includes Mounting Parts)
(Superseded to 696537)

$50.99

$

In Stock, only 1 left!

0

727

Briggs & Stratton 395405

Cover-Starter (Incl. Mounting Screws)

$

$

Not available

728

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

877

Briggs & Stratton 393814

Diode Assy.

$18.99

$

In Stock, only 2 left!

0

887

Briggs & Stratton 391529

Alternator
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

952

Briggs & Stratton 222495

Spacer-Air Cleaner

$3.49

$

Usually ships in 2-12 days

0

953

Briggs & Stratton 222022

Screen-Air Cleaner

$15.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 398970

Seal-Throttle
(Superseded to 692279)

$3.99

$

In Stock, only 1 left!

0
