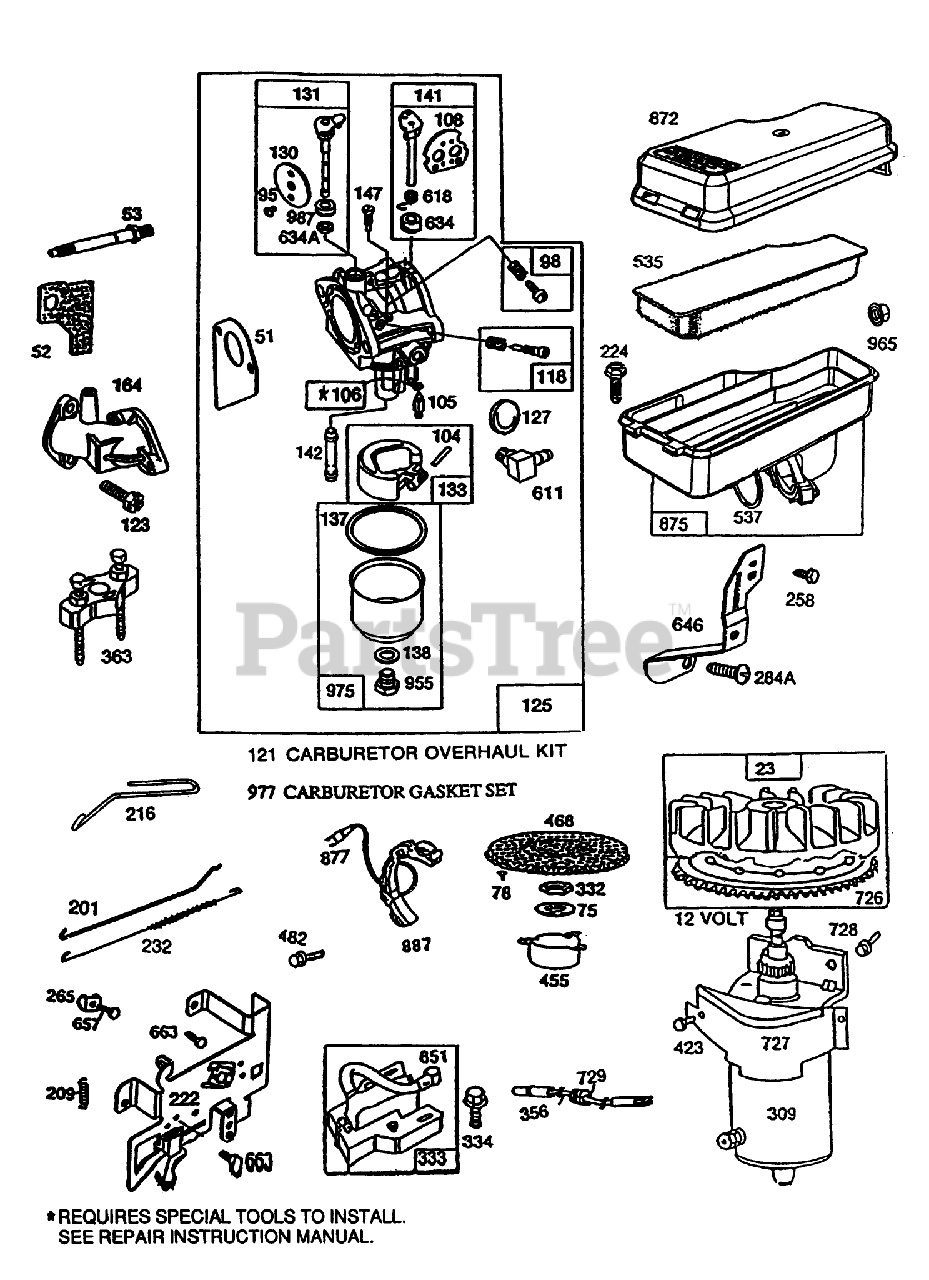

56133 (8-25) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) Briggs Stratton Model No. 191707-0121-01 2 Parts Diagram

Rear-Engine Riding Mower

Briggs Stratton Model No. 191707-0121-01 2 Parts Diagram

  • Title

23

Toro 391983

Flywheel

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Gasket Set-Part No. 494385 Carburetor Overhaul Kit No. 494880.

$

$

Currently unavailable

52

Toro 270824

Gasket-Carb. Mtg.

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

52

Toro 270824

Gasket-Carb. Mtg.

Note: Included in Carburetor Overhaul Kit-Part no. 494880.

$

$

Currently unavailable

53

Toro 94637

Stud-Mounting, Carbureator

$

$

Currently unavailable

75

Toro 224061

Washer

$

$

Currently unavailable

78

Toro 93805

Screw

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Carburetor Overhaul Kit-Part no. 494880.

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

98

Toro 494382

Screw-Idle Speed

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Part no. 494880.

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

105

Toro 231790

Valve Assy-Inlet Needle

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

105

Toro 231790

Valve Assy-Inlet Needle

Note: Included in Carburetor Overhaul Kit-Part no. 494880.

$

$

Currently unavailable

106

Toro 281169

Inlet Valve Seat

Note: Included in Carburetor Overhaul Kit-Part no. 494880.

$

$

Currently unavailable

106

Toro 281169

Inlet Valve Seat

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

108

Toro 224540

Valve-Choke

$

$

Currently unavailable

118

Toro 494383

Valve-Needle

$

$

Currently unavailable

121

Toro 494880

Carburetor Overhaul Kit

$

$

Currently unavailable

123

Toro 94616

Screw-Elbow Mtg

$

$

Currently unavailable

125

Toro 494894

Carburetor Assembly

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Overhaul Kit-Part no. 494880.

$

$

Not available

127

Plug-Welch (Sold in Kit Only)

Note: Included in Gasket Set-Part No. 299577.

$

$

Not available

130

Toro 224668

Valve-Throttle

$

$

Currently unavailable

131

Toro 494885

Shaft-Throttle

$

$

Currently unavailable

133

Toro 494381

Float-Carburetor

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Part No. 494385 Carburetor Overhaul Kit No. 494880.

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Part No. 494385 Carburetor Overhaul Kit No. 494880.

$

$

Currently unavailable

141

Toro 494380

Shaft Lever-Choke

$

$

Currently unavailable

142

Toro 494877

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part no. 494880.

$

$

Currently unavailable

142

Toro 494877

Nozzle-Carburetor

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

147

Toro 231794

Pilot-Jet

Note: Included in Carburetor Overhaul Kit-Part no. 494880.

$

$

Currently unavailable

147

Toro 231794

Pilot-Jet

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

164

Toro 213819

Manifold-Intake

$

$

Currently unavailable

201

Toro 262769

Link-Governor

$

$

Currently unavailable

209

Toro 260871

Spring-Governor

$

$

Currently unavailable

216

Toro 262768

Link-Choke

$

$

Currently unavailable

222

Toro 493896

Plate-Gov. Plate

$

$

Currently unavailable

224

Toro 94513

Screw-Sem

$

$

Currently unavailable

232

Toro 262787

Spring-Link

$

$

Currently unavailable

258

Toro 94620

Screw

$

$

Currently unavailable

265

Toro 221535

Clamp-Casing

$

$

Currently unavailable

284A

Toro 94326

Screw-Pan Head

$

$

Currently unavailable

309

Motor-Starting (12 Volt) See Chart for Replacement Parts for Starting Motor on Illustrated Pages

$

$

Not available

332

Toro 92284

Nut

$

$

Currently unavailable

333

Toro 398811

Armature Group

$

$

Currently unavailable

334

Toro 93381

Screw

$

$

Currently unavailable

356

Toro 494328

Wire-Stop

$

$

Currently unavailable

363

Toro 19165

Flywheel Puller

$

$

Currently unavailable

423

Toro 94073

Screw-Sem

$

$

Currently unavailable

455

Toro 222561

Cup-Flywheel

$

$

Currently unavailable

468

Toro 222562

Screen-Flush Rotating

$

$

Currently unavailable

482

Toro 93621

Screw

$

$

Currently unavailable

535

Toro 272405

Element-Air Cleaner

$

$

Currently unavailable

537

Toro 281106

O-Ring

$

$

Currently unavailable

611

Toro 494451

Fuel Inlet Tube

$

$

Currently unavailable

618

Toro 262803

Spring-Choke

$

$

Currently unavailable

634

Toro 281168

Seal-Choke Shaft

Note: Included in Carburetor Overhaul Kit-Part no. 494880.

$

$

Currently unavailable

634

Toro 281168

Seal-Choke Shaft

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

634A

Toro 281167

Seal-Throttle Shaft

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable

634A

Toro 281167

Seal-Throttle Shaft

Note: Included in Carburetor Overhaul Kit-Part no. 494880.

$

$

Currently unavailable

646

Toro 224614

Brace

$

$

Currently unavailable

657

Toro 93496

Screw

$

$

Currently unavailable

663

Toro 94419

Screw

$

$

Currently unavailable

726

Toro 392134

Gear-Ring (Includes Mounting Parts)

$

$

Currently unavailable

727

Toro 395405

Cover-Starter

$

$

Currently unavailable

728

Toro 93535

Crew

$

$

Currently unavailable

729

Toro 281159

Clip-Wire

$

$

Currently unavailable

851

Toro 221798

Terminal-Cable

$

$

Currently unavailable

872

Toro 281108

Cover-Air Cleaner

$

$

Currently unavailable

875

Toro 494745

Body-Air Cleaner

$

$

Currently unavailable

877

Toro 393814

Diode Assy.

$

$

Currently unavailable

887

Toro 391529

Alternator

$

$

Currently unavailable

955

Toro 94642

Plug

$

$

Currently unavailable

965

Toro 94108

Locknut

$

$

Currently unavailable

975

Toro 494378

Bowl-Float

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Carburetor Overhaul Kit-Part no. 494880.

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Gasket Set-Part No. 299577.

$

$

Currently unavailable
