56138 (8-32) - Toro Rear-Engine Riding Mower (SN: 006000001 - 006999999) (1986) ENGINE ASSEMBLY (MODEL NO. 56138) Parts Diagram

Rear-Engine Riding Mower

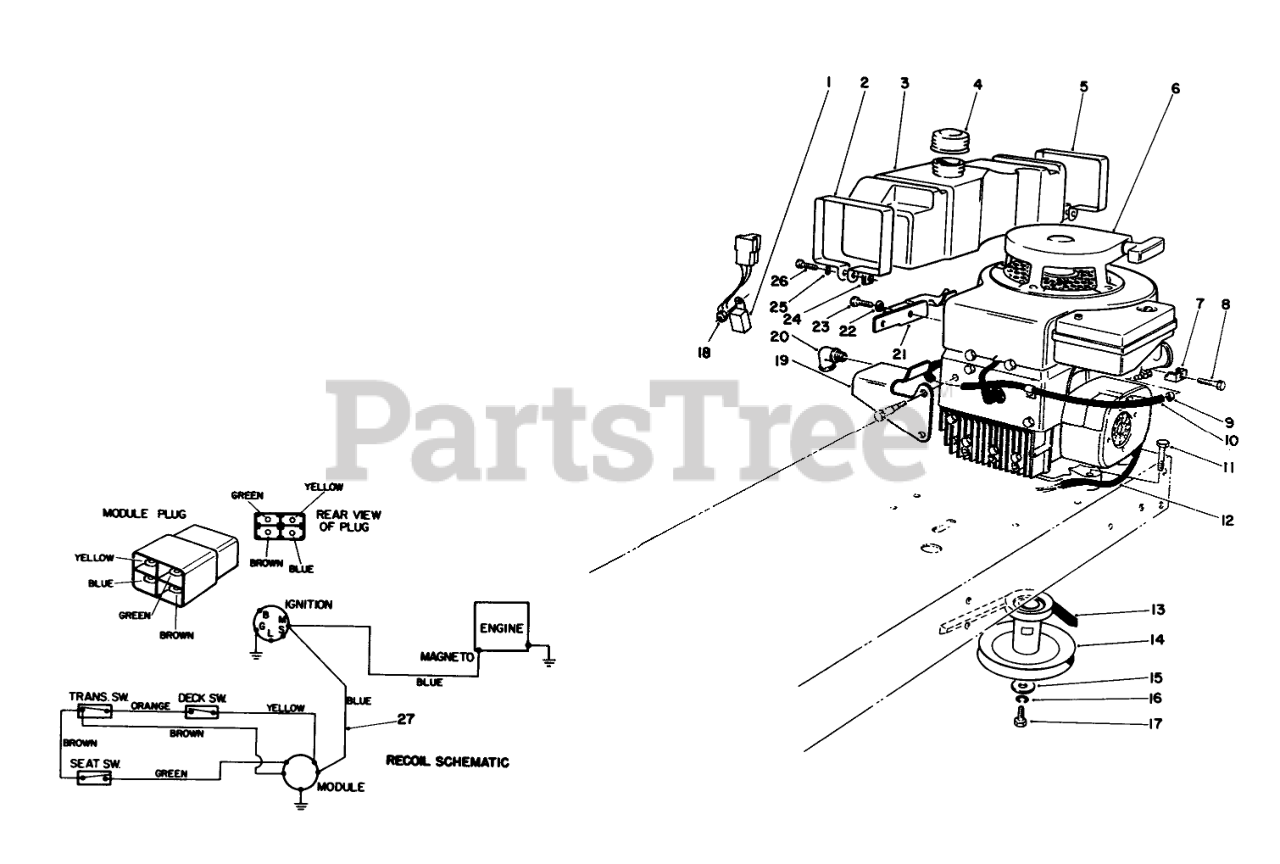

ENGINE ASSEMBLY (MODEL NO. 56138) Parts Diagram

  • Title

1

Toro 39-6520

INTERLOCK MODULE

$

$

Not available

2

Toro 57-4060

Retainer-Front
(Superseded to 57-4060-03)

$35.99

$

Usually ships in 3-6 days

0

3

Toro 56-7050

TANK-5 QT GAS

$168.99

$

In Stock, only 1 left!

0

4

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 20+

0

5

Toro 57-4070

Retainer-Rear
(Superseded to 57-4070-03)

$

$

Not available

6

Toro 56-7750

Engine

$

$

Currently unavailable

7

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

8

Toro 2210-248

SCREW W ENGINE

$

$

Not available

9

Toro 2210-185

FUEL HOSE CLAMP

$1.49

$

In Stock, only 4 left!

0

10

Toro 47-2986

HOSE-FUEL

$

$

Not available

11

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 57-4150

HEAT SHRINK TUBING

$

$

Not available

13

Toro 47-1410

V-BELT, TRACTION

$27.99

$

In Stock, Qty 6

0

14

Toro 47-1960

PULLEY

$435.99

$

Usually ships in 3-6 days

0

15

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 6

0

16

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

17

Toro 3212-5

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

18

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

19

Toro 57-4040

FRT TANK MTG BRKT B

$

$

Not available

20

Toro 2811-10

ELBOW-STREET, 90 DEG

$15.99

$

Usually ships in 3-6 days

0

21

Toro 57-4050

REAR TANK MTG BRKT B

$

$

Not available

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 32107-11

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

25

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

26

Toro 3274-51

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

27

Toro 56-7860

Wire Harness

$

$

Not available
