5614 - Simplicity Sulky Kit Sulky Repair Kit (3697I18) Parts Diagram

Sulky Kit

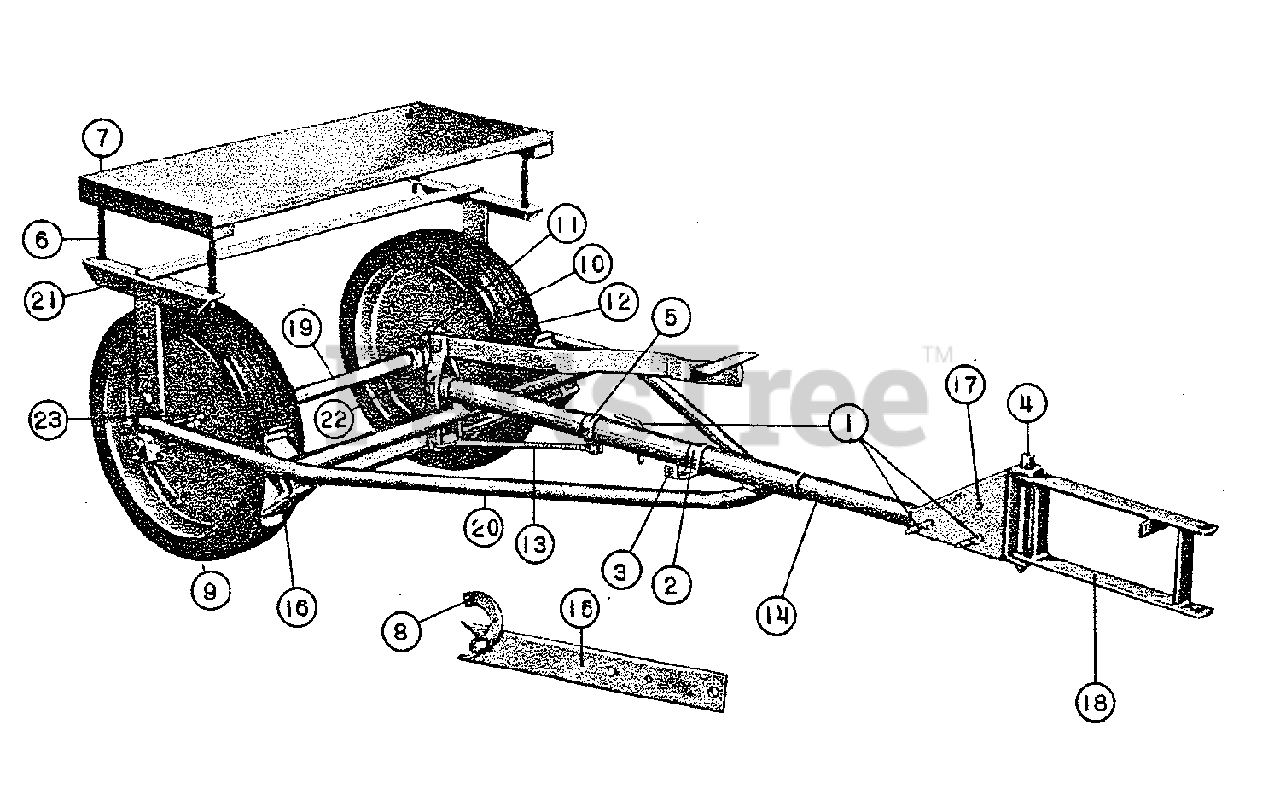

Sulky Repair Kit (3697I18) Parts Diagram

  • Title

1

Simplicity C-A18

PIN, Tongue

$

$

Not available

2

Simplicity C-A19

CLAMP

$

$

Not available

3

Simplicity C-A20

BRAKE, Lock

$

$

Not available

4

Simplicity C-A21

PIN, King

$

$

Not available

5

Simplicity C-A22

CLAMP, Spring

$

$

Not available

6

Simplicity C-A23

SPRING, Seat

$

$

Not available

7

Simplicity C-A24

STUD, Seat

$

$

Not available

8

Simplicity C-A25

LATCH

$

$

Not available

9

Simplicity C-A26

BUSHING, For Wheel

$

$

Not available

10

Simplicity C-A27

DISC, Wheel

$

$

Not available

11

Simplicity C-A28

HUB, For Wheel

$

$

Not available

12

Simplicity C-A29

TIRE

$

$

Not available

13

Simplicity S4-A27

SPRING, Brake

$

$

Not available

14

Simplicity C-B3

TONGUE

$

$

Not available

15

Simplicity C-B6

BODY PROP

$

$

Not available

16

Simplicity C-AX1

SHOE, Brake

$

$

Not available

17

Simplicity C-BX1

CLEVIS ASSEMBLY

$

$

Not available

18

Simplicity C-BX2

TONGUE EXTENSION

$

$

Not available

19

Simplicity C-BX3

AXLE

$

$

Not available

20

Simplicity C-CX1

FRAME, Cart

$

$

Not available

21

Simplicity C-CX2

FRAME, Dump

$

$

Not available

22

Simplicity C-CX3

BRAKE ASSEMBLY

$

$

Not available

23

FITTING, Grease, #1641

$

$

Not available
