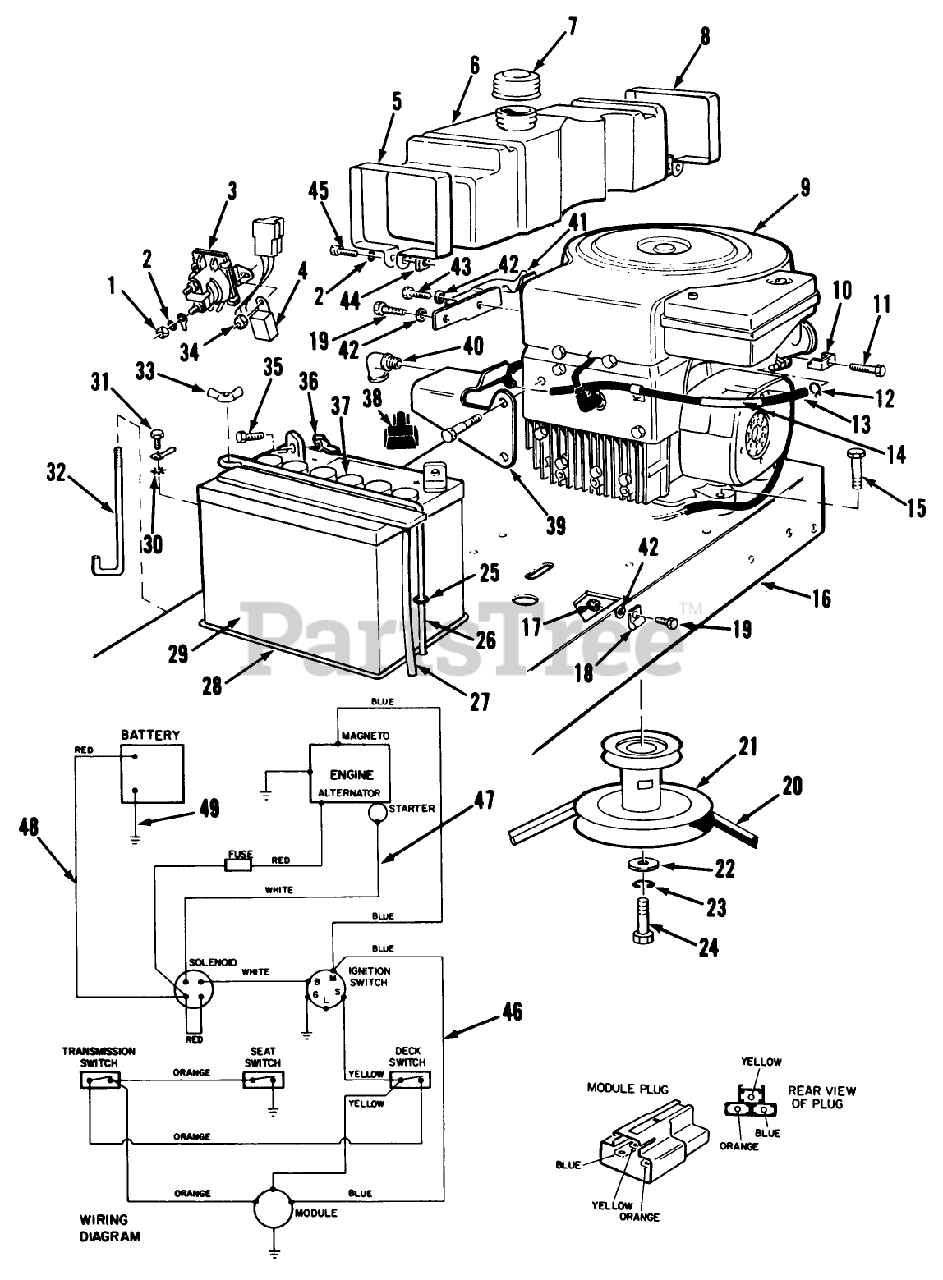

56145 (8-32) - Toro Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) Engine Assembly Parts Diagram

Rear-Engine Riding Mower

Engine Assembly Parts Diagram

  • Title

1

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 47-1910

See Supercession: 740207
(Superseded to 740207)

$36.99

$

In Stock, only 1 left!

0

4

Toro 28-7890

See Supercession: 95-0659
(Superseded to 95-0659)

$178.99

$

Usually ships in 3-6 days

0

5

Toro 57-4060

See Supercession: 57-4060-03
(Superseded to 57-4060-03)

$

$

Not available

6

Toro 56-7050

TANK-5 QT GAS

$215.99

$

In Stock, only 1 left!

0

7

Toro 55-3570

GAS CAP ASM

$15.99

$

In Stock, only 2 left!

0

8

Toro 57-4070

See Supercession: 57-4070-03
(Superseded to 57-4070-03)

$

$

Not available

9

Engine 8HP BS Model # 191707,Type Spec. #6021-01

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Not available

Engine 10HPBS Model # 256707, Type Spec. #0123-01 (Includes Reference #39)

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Not available

Engine 12 HP BS Model # 281707, Type Spec. #0175-01 (Includes Reference # 19, 41, 42, 43)

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown.

$

$

Not available

10

Toro 2210-249

CLAMP-CASING

$

$

Not available

11

Toro 2210-248

SCREW (F/W ENGINE)

$

$

Not available

12

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

13

Toro 47-2986

See Supercession: 110-3255

$

$

Not available

Toro 47-2961

See Supercession: 108-4582
(Superseded to 108-4582)

$12.99

$

Usually ships in 3-6 days

0

14

Toro 62-5490

SUPPORT-FUEL LINE

$

$

Not available

15

Toro 322-7

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

16

Toro 57-4150

DISCONTINUED

$

$

Not available

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 2412-68

CLAMP

$

$

Not available

19

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 47-1410

V-BELT, TRACTION

$28.99

$

In Stock, only 2 left!

0

21

Toro 47-1960

PULLEY

$

$

Not available

22

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

23

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

24

Toro 62-3760

SCREW-HH

$

$

Not available

25

Toro 237-143

O-RING

$1.99

$

Usually ships in 3-6 days

0

26

Toro 56-7710

HOLDDOWN-BATTERY

$23.99

$

Usually ships in 3-6 days

0

27

Toro 56-2540

TUBE-BATT DRAIN/80-2600

$4.49

$

In Stock, only 1 left!

0

28

Toro 62-4300

PAD-SKID, ANTI

$21.99

$

Usually ships in 3-6 days

0

29

Toro 76-1430

See Supercession: 105-1692
(Superseded to 105-1692)

$

$

Not available

30

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

31

Toro 32104-82

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

32

Toro 56-7720

See Supercession: 100-6435
(Superseded to 100-6435)

$20.99

$

Usually ships in 3-6 days

0

33

Toro 32103-12

NUT-WING

$1.49

$

In Stock, only 2 left!

0

34

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, Qty 19

0

35

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

36

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 10

0

37

Toro 218-560

CAP-BATTERY

$

$

Not available

38

Toro 28-8080

BOOT-TERMINAL

$26.99

$

Usually ships in 3-6 days

0

39

Toro 57-4040

DISCONTINUED

$

$

Not available

40

Toro 2811-10

ELBOW-STREET, 90 DEG

$

$

Not available

41

Toro 57-4060

See Supercession: 57-4060-03
(Superseded to 57-4060-03)

$

$

Not available

42

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

43

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

44

Toro 32107-11

NUT-SQUARE

$

$

Not available

45

Toro 3274-51

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

46

Toro 76-1570

WIRING HARNESS

$181.99

$

Usually ships in 3-6 days

0

47

Toro 56-7660

DISCONTINUED

$

$

Not available

48

Toro 56-7670

WIRE ASM

$32.99

$

In Stock, only 2 left!

0

49

Toro 56-7870

WIRE ASM(BATT/GRD.

$

$

Not available

Toro 3290-378

TIE-CABLE

Note: Not illustrated

$0.99

$

In Stock, Qty 9

0
