56145 (8-32) - Toro Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) FRONT AXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

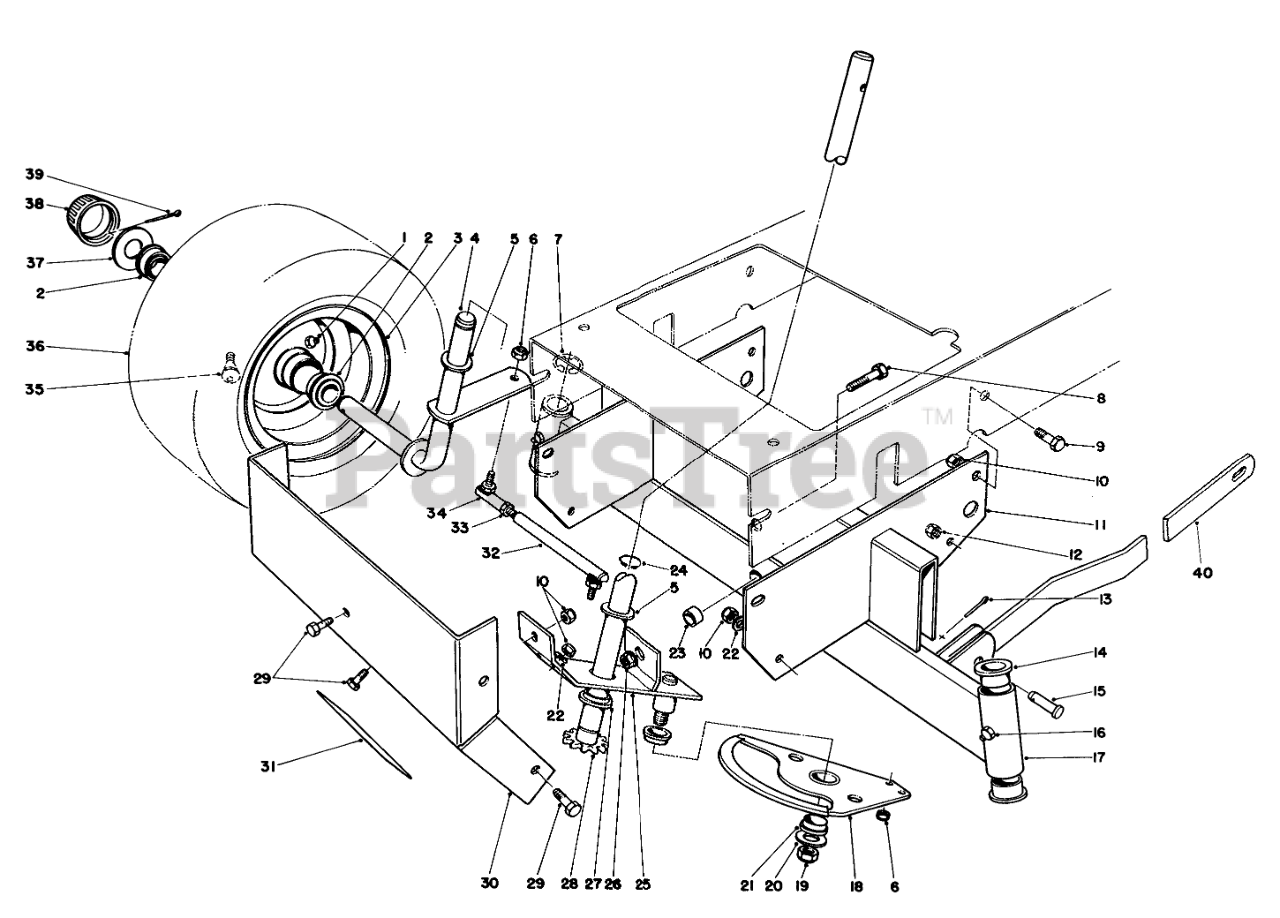

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 11

0

2

Toro 251-210

Bearing
(Superseded to 110513)

$21.99

$

In Stock, Qty 20+

0

3

Toro 217-80

RIM

$192.99

$

Usually ships in 3-6 days

0

4

Toro 47-0600

Spindle RH
(Superseded to 47-0600-01)

$

$

Not available

Toro 47-0590

Spindle LH
(Superseded to 47-0590-01)

Note: Not illustrated

$

$

Not available

5

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

6

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 11

0

7

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 20+

0

8

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

9

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 47-0760

Support
(Superseded to 47-0760-01)

$

$

Not available

12

Toro 32152-4

NUT-LOCK, CONE

$1.49

$

In Stock, only 4 left!

0

13

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

14

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

15

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 3 left!

0

16

Toro 302-49

GREASE FITTING

$3.49

$

Usually ships in 3-6 days

0

17

Toro 47-0980

Axle-Front (Incl. Ref. #14 & 16)

$

$

Not available

18

Toro 47-0690

Rack-Steering

$

$

Not available

19

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

20

Toro 29-8910

WASHER

$0.99

$

In Stock, only 1 left!

0

21

Toro 47-0700

BEARING-FLANGE

$15.99

$

Usually ships in 3-6 days

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 28-0380

SPACER-AXLE, FRONT

$2.99

$

Usually ships in 3-6 days

0

24

Toro 32120-93

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

25

Toro 47-0620

Rack-Bracket Steering (Incl. Ref. #27)

$

$

Not available

26

Toro 32128-23

NUT-HF

$1.99

$

In Stock, Qty 20+

0

27

Toro 47-0700

BEARING-FLANGE

$15.99

$

Usually ships in 3-6 days

0

28

Toro 47-0650

STEERING SHAFT WA O

$

$

Not available

29

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 47-1000

Cover-Front

$

$

Not available

31

Toro 26-4830

Decal-Warning

$

$

Not available

32

Toro 47-0610

Tie Rod-Steering (Incl. Ref. #32 & 33)

$

$

Not available

33

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

34

Toro 2411-32

JOINT-BALL

$31.99

$

Usually ships in 3-6 days

0

35

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

36

Toro 231-108

Tire
(Superseded to 231-116)

$

$

Not available

37

Toro 28-2480

WASHER-PLAIN

$4.49

$

In Stock, Qty 20+

0

38

Toro 28-0060

Cap-Hub
(Superseded to 61-9780)

$7.49

$

In Stock, Qty 20+

0

39

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

40

Toro 47-0010

Arm-Suspension, Front
(Superseded to 47-0010-01)

$

$

Not available

Toro 232-44

TUBE

Note: Service Replacement Part

$

$

Not available
