56145 (8-32) - Toro Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) REAR AXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

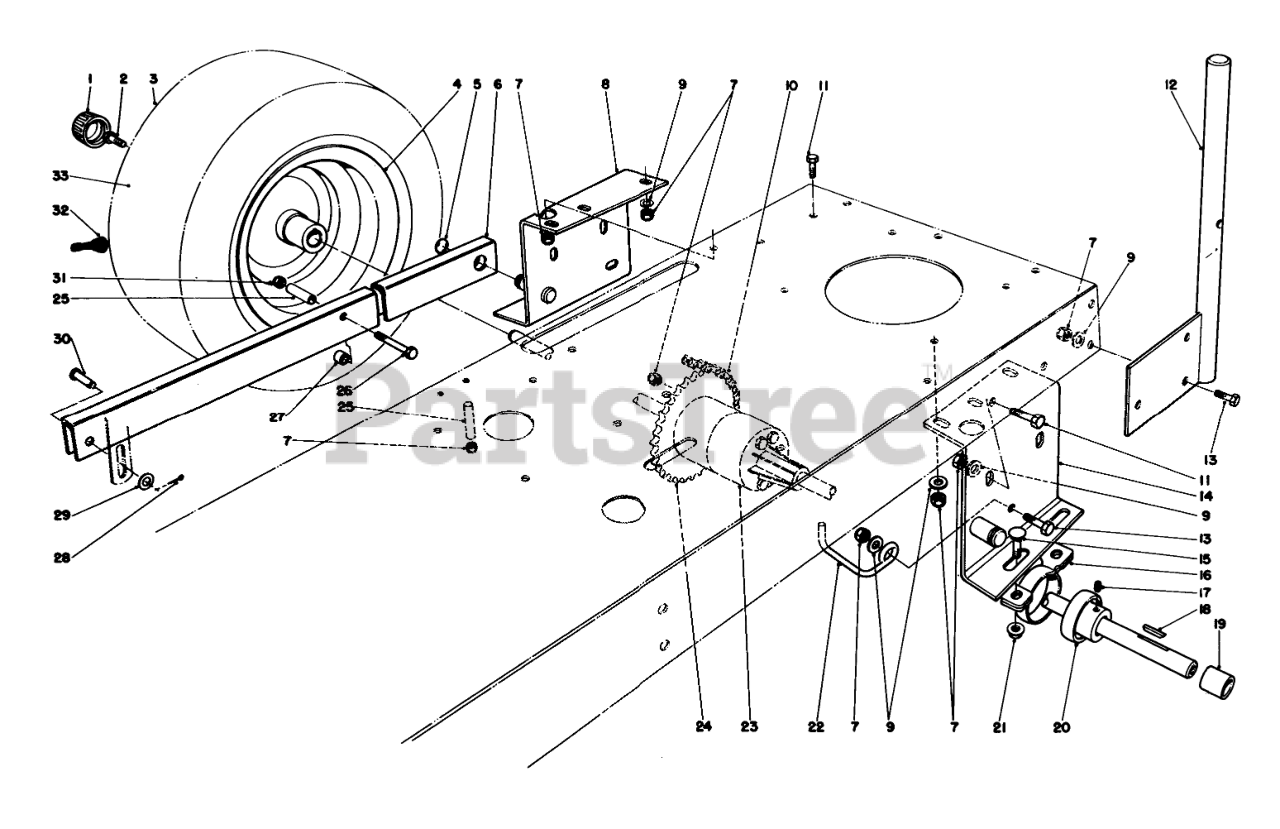

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 280060

Hub Cap

$

$

Currently unavailable

2

Toro 36-4030

CAPSCREW 3/8 16 3/4
(Superseded to 98-3052)

$1.99

$

Usually ships in 3-6 days

0

3

Toro 231-97

Tire
(Superseded to 231-117)

$104.99

$

Usually ships in 3-6 days

0

4

Toro 242-70

REAR RIM

$

$

Not available

5

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 20+

0

6

Toro 47-0020

REAR SUSP ARMR
(Superseded to 47-0020-01)

$384.99

$

Usually ships in 3-6 days

0

7

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 47-0880

Support-Rear Axle R.H.

$

$

Not available

9

Toro 325623

Washer

$

$

Currently unavailable

10

Toro 47-1510

Chain
(Superseded to 56-7230)

$119.99

$

In Stock, only 1 left!

0

11

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 47-2050

Stand Bar

$

$

Not available

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 470890

Support-Rear Axle L.H.

$

$

Currently unavailable

15

Toro 3231-30

SCREW-CARR

$4.99

$

In Stock, only 1 left!

0

16

Toro 47-1480

RTNR-PILLOW BLK

$55.99

$

Usually ships in 3-6 days

0

17

Toro 3245-35

SCREW-SET, HSH

$0.99

$

In Stock, Qty 10

0

17

Toro 3246-15

SCREW-SET

$6.49

$

Usually ships in 3-6 days

0

18

Toro 3257-40

KEY

$9.49

$

Usually ships in 3-6 days

0

19

Toro 47-0740

REAR AXLE SPACER

$

$

Not available

20

Toro 47-1490

Bearing-Self Aligning (Incl. Ref. #17)

$70.99

$

Usually ships in 3-6 days

0

21

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

22

Toro 47-2010

BELT GUIDE

$23.99

$

Usually ships in 3-6 days

0

23

Toro 47-1470

Differential

$

$

Not available

24

Toro 47-1500

Sprocket Differential
(Superseded to 56-7090)

$81.99

$

Usually ships in 3-6 days

0

25

Toro 47-0920

OUTER TUBE SPACER

$

$

Not available

26

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 16

0

27

Toro 47-0910

INNER TUBE SPACER

$

$

Not available

28

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

29

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 283-42

PIN-CLEVIS

$46.99

$

Usually ships in 3-6 days

0

31

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

32

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

33

Toro 232-39

TUBE-INNER

Note: Service Replacement Part

$31.99

$

In Stock, only 1 left!

0
