56170 (11-32) - Toro Professional Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) ENGINE BRIGGS & STRATTON MODEL NO. 253707-0177-01 Parts Diagram

Professional Rear-Engine Riding Mower

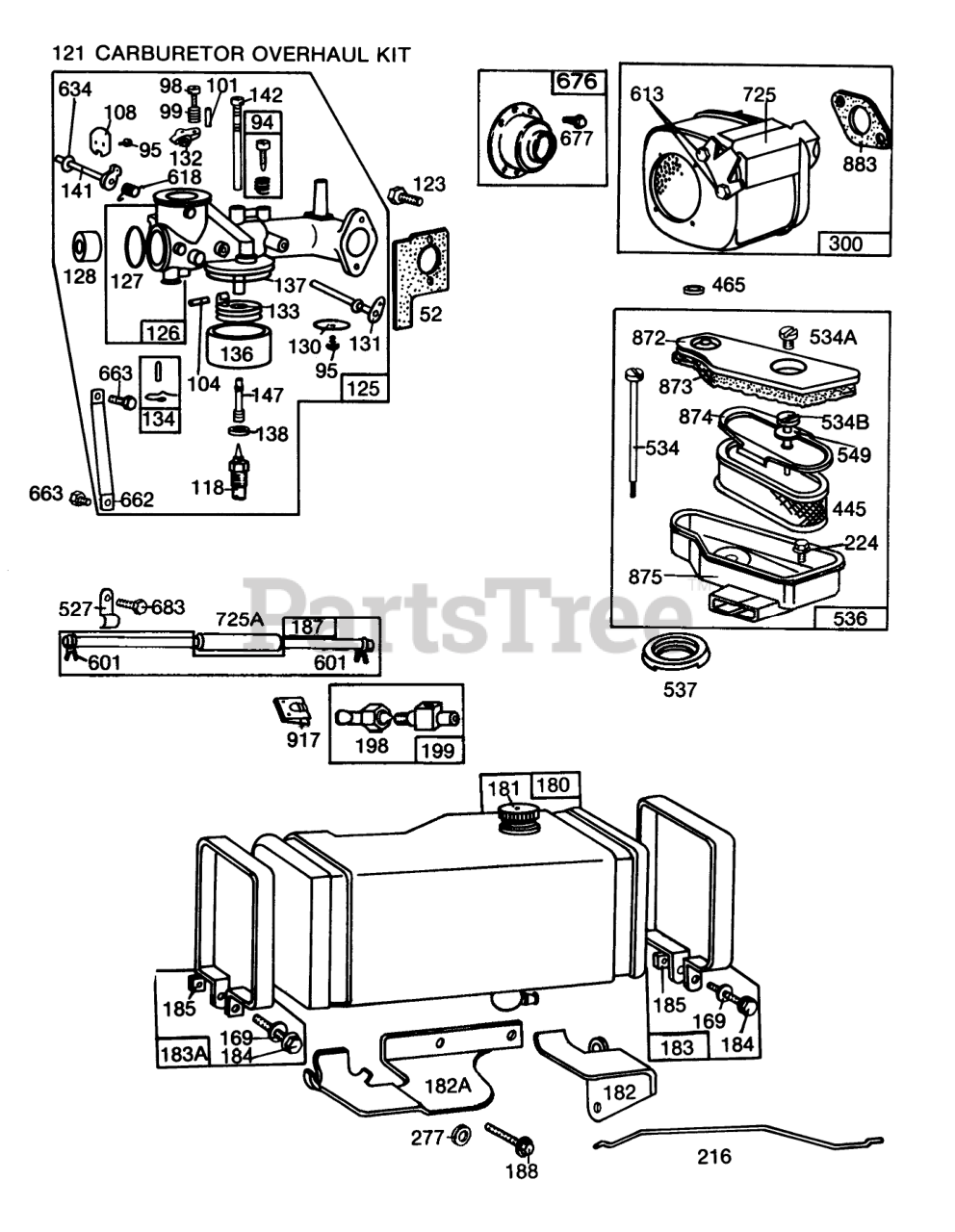

ENGINE BRIGGS & STRATTON MODEL NO. 253707-0177-01 Parts Diagram

  • Title

52

Briggs & Stratton 270872

Gasket-Intake
(Superseded to 498869)

Note: Included in Gasket Set-Part NO 393411.

$5.49

$

In Stock, Qty 5

0

94

Briggs & Stratton 292681

Valve Assembly

Note: Included in Carburetor Overhaul Kit-Part No.394698.

$11.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 93499

Screw
(Superseded to 691437)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 91920

Screw
(Superseded to 691615)

$3.99

$

Usually ships in 2-12 days

0

99

Briggs & Stratton 26157

Spring
(Superseded to 693942)

$8.99

$

Usually ships in 2-12 days

0

101

Briggs & Stratton 93043

Pin
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 230896

Pin-Float
(Superseded to 691775)

Note: Included in Carburetor Overhaul Kit-Part No.394698.

$3.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 222010

Valve

$7.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 396568

Valve Needle

Note: Included in Carburetor Overhaul Kit-Part No.394698.

$20.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 394698

Kit-Carburetor

$32.99

$

In Stock, Qty 5

0

123

Briggs & Stratton 93357

Screw
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

125

Briggs & Stratton 396501

Carburetor Assembly
(Superseded to 491026)

$315.99

$

In Stock, only 1 left!

0

126

Briggs & Stratton 396574

Body Assy.-Carburetor (Two 271013 Foam Washers Included in All Ref.126)
(Superseded to 391787)

$75.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 221997

Plug

Note: Included in Carburetor Overhaul Kit-Part No.394698.

$4.99

$

In Stock, only 1 left!

0

128

Briggs & Stratton 211960

Venturi-Carburetor

$6.49

$

In Stock, only 1 left!

0

130

Briggs & Stratton 222433

Valve-Throttle

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 391512

Shaft & Lever-Throttle
(Superseded to 491006)

$21.99

$

In Stock, only 2 left!

0

132

Briggs & Stratton 211712

Stop-Thottle

$8.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 299707

Float-Carburetor

$13.99

$

In Stock, Qty 8

0

134

Briggs & Stratton 299096

Valve-FuelInlet
(Superseded to 394681)

Note: Included in Carburetor Overhaul Kit-Part No.394698.

$7.99

$

In Stock, Qty 16

0

136

Briggs & Stratton 221995

Bowl-Float

$8.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 270511

Gasket-Bowl

Note: Included in Carburetor Overhaul Kit-Part No.394698.

$3.49

$

In Stock, Qty 9

0

138

Briggs & Stratton 222014

Washer-Bowl
(Superseded to 690618)

Note: Included in Carburetor Overhaul Kit-Part No.394698.

$4.99

$

In Stock, Qty 11

0

141

Briggs & Stratton 390684

Shaft and Lever

$16.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 299740

Nozzle-Carburator

Note: Included in Carburetor Overhaul Kit-Part No.394698.

$15.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231323

Screw

Note: Included in Carburetor Overhaul Kit-Part No.394698.

$24.99

$

Usually ships in 2-12 days

0

169

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 390225

Tank Assy.-Fuel

$

$

Not available

181

Briggs & Stratton 392300

Cap-Fuel Tank
(Superseded to 394818S)

$33.99

$

In Stock, only 2 left!

0

182

Briggs & Stratton 222814

Bracket-Fuel Tank (R.H.)
(Superseded to 222980)

$22.99

$

Usually ships in 2-12 days

0

182A

Briggs & Stratton 222112

Bracket-Tank (L.H.)
(Superseded to 692867)

$23.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 390406

Strap Assy.-Fuel Tank (RH.)
(Superseded to 698459)

$17.99

$

Usually ships in 2-12 days

0

183A

Briggs & Stratton 390405

Strap Assy.-Fuel Tank (LH.)
(Superseded to 692030)

$16.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 93803

Screw-Hex Hd.
(Superseded to 697935)

$3.99

$

In Stock, only 1 left!

0

185

Briggs & Stratton 90970

Nut-Square
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 299146

Line-Fuel (28" long) (Cut to Suit)
(Superseded to 841589)

$38.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93634

Screw
(Superseded to 690341)

$5.99

$

In Stock, only 2 left!

0

198

Briggs & Stratton 293934

Valve-Shut Off
(Superseded to 592840)

$43.99

$

In Stock, only 4 left!

0

199

Briggs & Stratton 390303

Outlet-Fuel Tank
(Superseded to 492649)

$28.99

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 261610

Link-Choke

$10.99

$

In Stock, only 2 left!

0

224

Briggs & Stratton 94018

Screw
(Superseded to 690859)

$3.99

$

In Stock, Qty 8

0

277

Briggs & Stratton 22776

Washer
(Superseded to 690259)

$12.99

$

In Stock, only 2 left!

0

300

Briggs & Stratton 394180

Muffler-Exhaust
(Superseded to 691874)

$57.99

$

In Stock, only 1 left!

0

445

Briggs & Stratton 393725

Cartridge-Air Cleaner

$21.99

$

In Stock, only 3 left!

0

465

Briggs & Stratton 271118

Washer-Air Cleaner

$

$

Not available

527

Briggs & Stratton 221428

Clamp
(Superseded to 690394)

$4.99

$

Usually ships in 2-12 days

0

534

Briggs & Stratton 93911

Screw-Air Cleaner

$10.99

$

Usually ships in 2-12 days

0

534A

Briggs & Stratton 93913

Screw-Cover Mtg.

$3.99

$

In Stock, only 1 left!

0

534B

Briggs & Stratton 93910

Screw-Air Cleaner

$13.99

$

Usually ships in 2-12 days

0

536

Briggs & Stratton 393749

Cleaner-Air

$179.99

$

Usually ships in 2-12 days

0

537

Briggs & Stratton 270853

Gasket-Air Cleaner

$9.49

$

In Stock, only 1 left!

0

549

Briggs & Stratton 270978

Washer-Air Cleaner

$5.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

613

Briggs & Stratton 93927

Screw
(Superseded to 691416)

$11.99

$

In Stock, Qty 9

0

618

Briggs & Stratton 261116

Spring Choke

$7.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 270382

Washer
(Superseded to 691869)

$3.99

$

In Stock, only 3 left!

0

662

Briggs & Stratton 222311

Bracket-Carburetor
(Superseded to 224440)

$4.49

$

In Stock, only 1 left!

0

663

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 4 left!

0

676

Briggs & Stratton 396903

Deflector-Exhaust

$14.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

683

Briggs & Stratton 93572

Screw
(Superseded to 690664)

$5.49

$

In Stock, only 4 left!

0

725

Briggs & Stratton 223023

Shield-Heat
(Superseded to 690420)

$18.99

$

Usually ships in 2-12 days

0

725A

Briggs & Stratton 222175

Shield-Heat
(Superseded to 690403)

$6.99

$

Usually ships in 2-12 days

0

872

Briggs & Stratton 396966

Cover Group-Air Cleaner (Includes Gasket)

$51.99

$

Usually ships in 2-12 days

0

873

Briggs & Stratton 397971

Gasket-Air Cleaner Cover

$37.99

$

In Stock, only 1 left!

0

874

Toro 222988

Plate-Air Cleaner Cartridge

$

$

Currently unavailable

875

Briggs & Stratton 397321

Body-Air Cleaner

$49.99

$

In Stock, only 1 left!

0

883

Briggs & Stratton 270917

Gasket Exhaust
(Superseded to 692236)

$5.49

$

In Stock, Qty 20+

0

917

Briggs & Stratton 223271

Valve Handle
(Superseded to 691737)

$7.49

$

In Stock, only 1 left!
