56170 (11-32) - Toro Professional Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) DIFFERENTIAL MODEL 100-050A Parts Diagram

Professional Rear-Engine Riding Mower

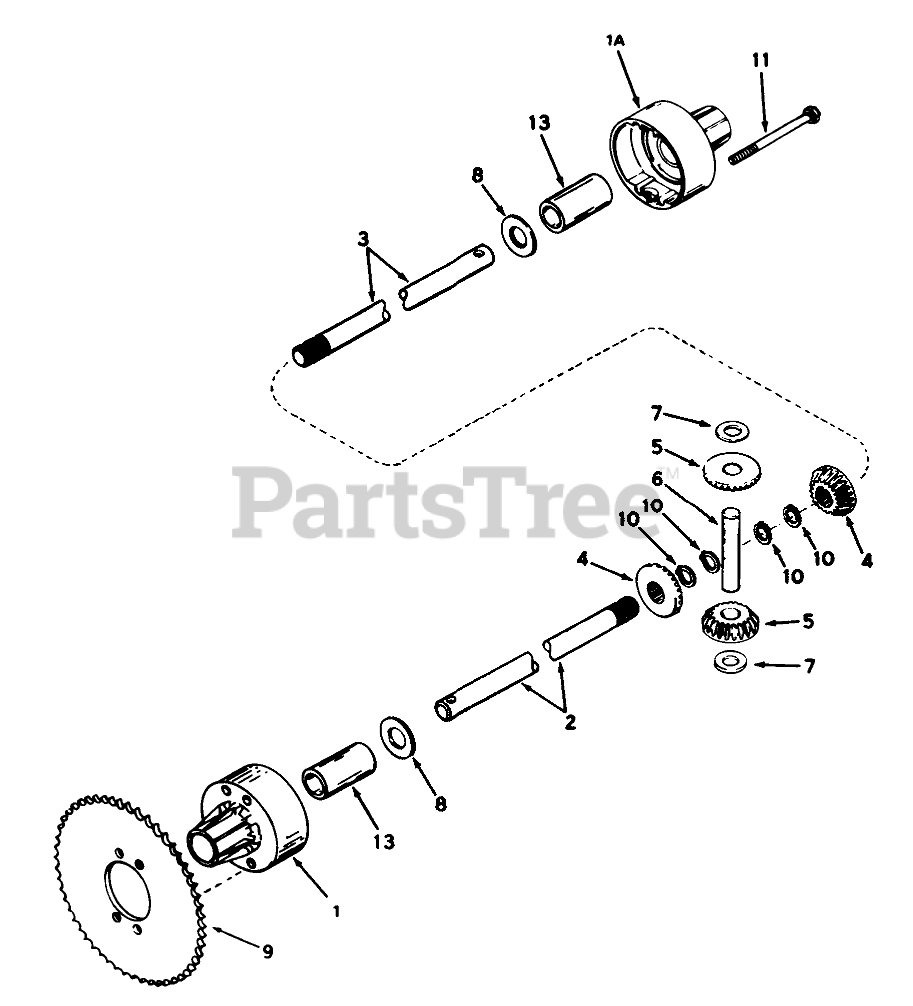

DIFFERENTIAL MODEL 100-050A Parts Diagram

  • Title
1

Toro 774344

Housing-Differential Carrier (Incl. #13)

$

$

Currently unavailable

1A

Toro 774345

Housing-Differential Carrier (Incl. #13)

$

$

Currently unavailable

2

Toro 774708

Axle (10-1/4" long)

$

$

Currently unavailable

3

Toro 774709

Axle (18-7/8" long)

$

$

Currently unavailable

4

Toro 778221

Gear Bevel

$

$

Currently unavailable

5

Toro 778068

Gear Pinion

$

$

Currently unavailable

6

Toro 786040

Pin Drive

$

$

Currently unavailable

7

Toro 780096

Washer Thrust

$

$

Currently unavailable

8

Toro 780001

Washer

$

$

Currently unavailable

9

Sprocket (See "Sprocket Chart" for optional sprocket)

$

$

Not available

10

Toro 792125

Retaining Ring (pkg of 2)

$

$

Currently unavailable

11

Toro 792041

Screw-Hex Hd.

$

$

Currently unavailable

13

Toro 780077

Bushing

$

$

Currently unavailable
