56177 (12-32) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) REAR AXLE ASSEMBLY Parts Diagram

Rear-Engine Riding Mower

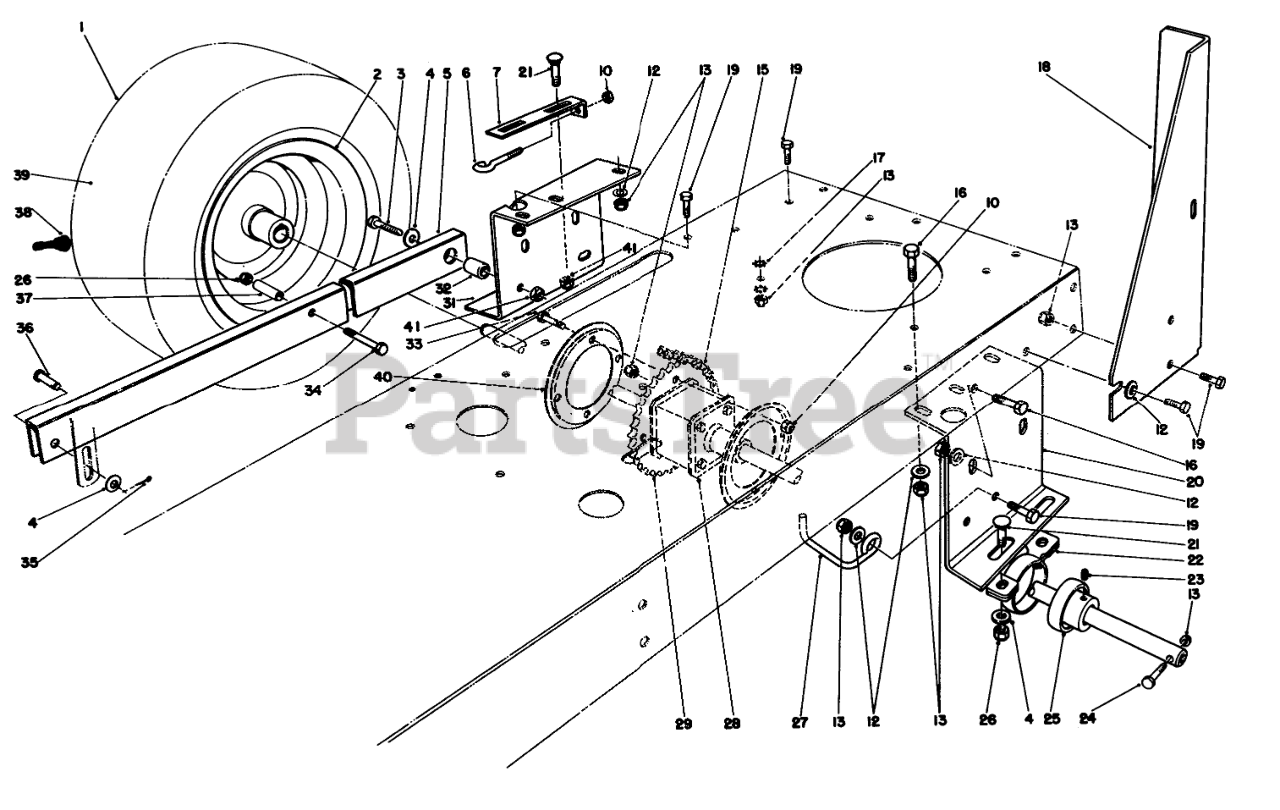

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 231-117

TIRE

$104.99

$

Usually ships in 3-6 days

0

2

Toro 242-78

RIM

$

$

Not available

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 76-1540

Arm-Suspension R.H.
(Superseded to 76-1540-01)

$

$

Not available

Toro 76-1550

Lift Lever
(Superseded to 76-1550-01)

$

$

Not available

6

Toro 61-9980

SCREW-ADJUSTING

$8.49

$

In Stock, only 1 left!

0

7

Toro 61-9990

PLATE-ADJUSTING

$30.99

$

Usually ships in 3-6 days

0

10

Toro 3296-8

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 56-7230

ROLLER CHAIN

$119.99

$

In Stock, only 1 left!

0

16

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Toro 3254-2

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

18

Toro 56-7450

LH STANDBAR B

$64.99

$

Usually ships in 3-6 days

0

Toro 56-7440

RH STANDBAR B

$64.99

$

Usually ships in 3-6 days

0

19

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 56-7420

LH REAR AXLE SUPT R

$44.99

$

In Stock, only 1 left!

0

21

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 16

0

22

Toro 47-1480

RTNR-PILLOW BLK

$55.99

$

Usually ships in 3-6 days

0

23

Toro 3245-35

SCREW-SET, HSH

$0.99

$

In Stock, Qty 10

0

Toro 3246-15

SCREW-SET

$6.49

$

Usually ships in 3-6 days

0

24

Toro 46-2510

Bolt
(Superseded to 46-2511)

$3.49

$

Usually ships in 3-6 days

0

25

Toro 47-1490

Bearing-Ball (Incl. Ref. #23)

$70.99

$

Usually ships in 3-6 days

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

27

Toro 47-2010

BELT GUIDE

$23.99

$

Usually ships in 3-6 days

0

28

Toro 56-7110

DIFFERENTIAL

$

$

Not available

29

Toro 76-1600

SPROCKET

$83.99

$

Usually ships in 3-6 days

0

31

Toro 63-5820

RH AXLE SUPPORT R

$

$

Not available

32

Toro 56-7430

PIN-SUPT ARM

$13.99

$

Usually ships in 3-6 days

0

33

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

34

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 18

0

35

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

36

Toro 283-42

PIN-CLEVIS

$46.99

$

Usually ships in 3-6 days

0

37

Toro 76-1560

SPACER-SPLIT TUBE

$37.99

$

Usually ships in 3-6 days

0

38

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

39

Toro 232-39

TUBE-INNER

$31.99

$

In Stock, only 1 left!

0

40

Toro 76-1580

Guide-Chain
(Superseded to 76-1580-03)

$19.99

$

In Stock, only 1 left!

0

41

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

Toro 23-2340

1032 TIRE CHAIN KIT

$

$

Not available
