56177 (12-32) - Toro Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) REWIND-BRIGGS & STRATTON NO. 286707-0119-01 Parts Diagram

Rear-Engine Riding Mower

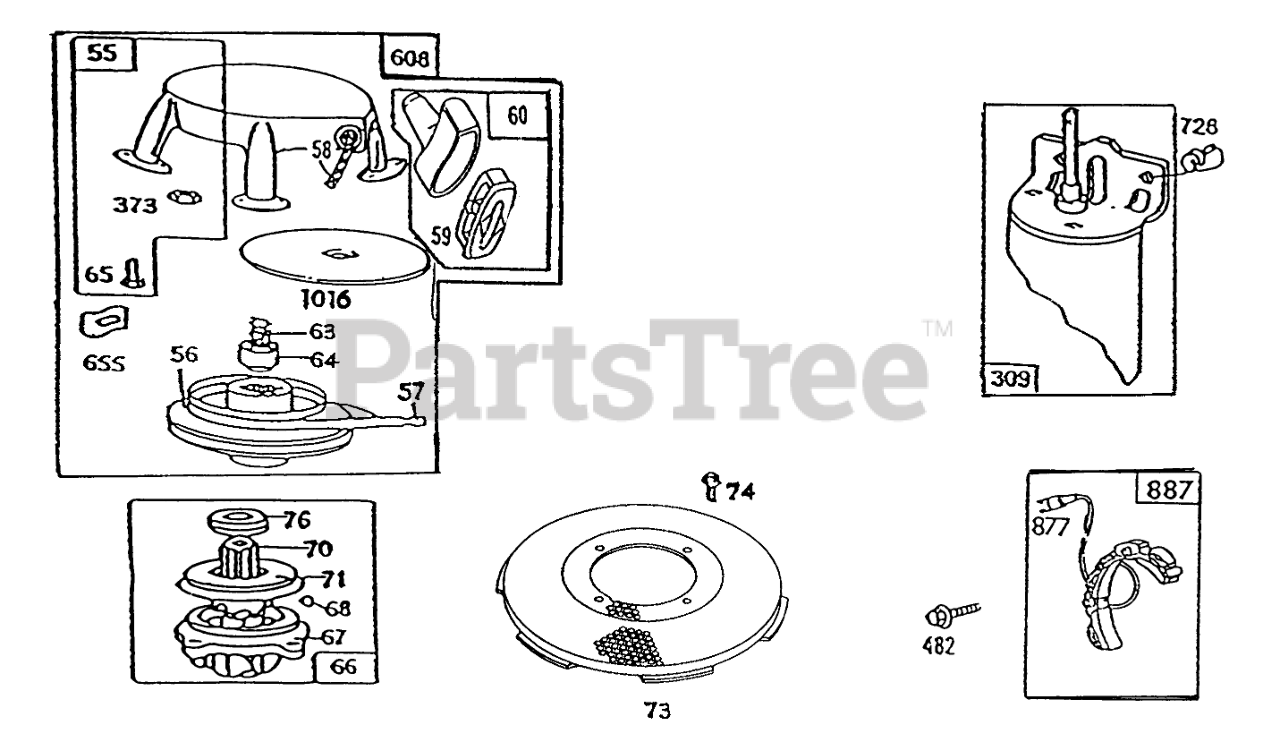

REWIND-BRIGGS & STRATTON NO. 286707-0119-01 Parts Diagram

  • Title

55

Briggs & Stratton 393576

Housing-Rewind Starter_(Includes 63" Rope)

$85.99

$

In Stock, only 2 left!

0

56

Briggs & Stratton 295871

Pulley-Rewind

$14.99

$

In Stock, only 4 left!

0

57

Briggs & Stratton 490179

Spring-Rewind

$14.99

$

In Stock, Qty 14

0

58

Briggs & Stratton 66884

Rope-Rewind
(Superseded to 692188)

$8.49

$

In Stock, Qty 5

0

59

Briggs & Stratton 490653

Grip Insert
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

60

Briggs & Stratton 490652

Grip-Starter Rope

$5.49

$

In Stock, Qty 8

0

63

Briggs & Stratton 260414

Spring
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter
(Superseded to 691920)

$11.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 94128

Screw
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

66

Briggs & Stratton 399671

Clutch-Starter

$34.99

$

In Stock, Qty 16

0

67

Briggs & Stratton 394897

Ball-Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Ratchet
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 223859

Screen-Rotating
(Superseded to 691191)

$32.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93042

Screw
(Superseded to 691078)

$4.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 68238

Washer
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

309

Motor-Starting (12 Volt) See Illustrated Pages for Replacement Parts for Starter Motor.

$

$

Not available

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 390391

Rewind Starter
(Superseded to 693900)

$131.99

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

728

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 12

0

877

Briggs & Stratton 393814

Diode Assy.

$18.99

$

In Stock, only 2 left!

0

887

Briggs & Stratton 391529

Alternator
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

Spacer

$9.49

$

In Stock, only 2 left!

0
