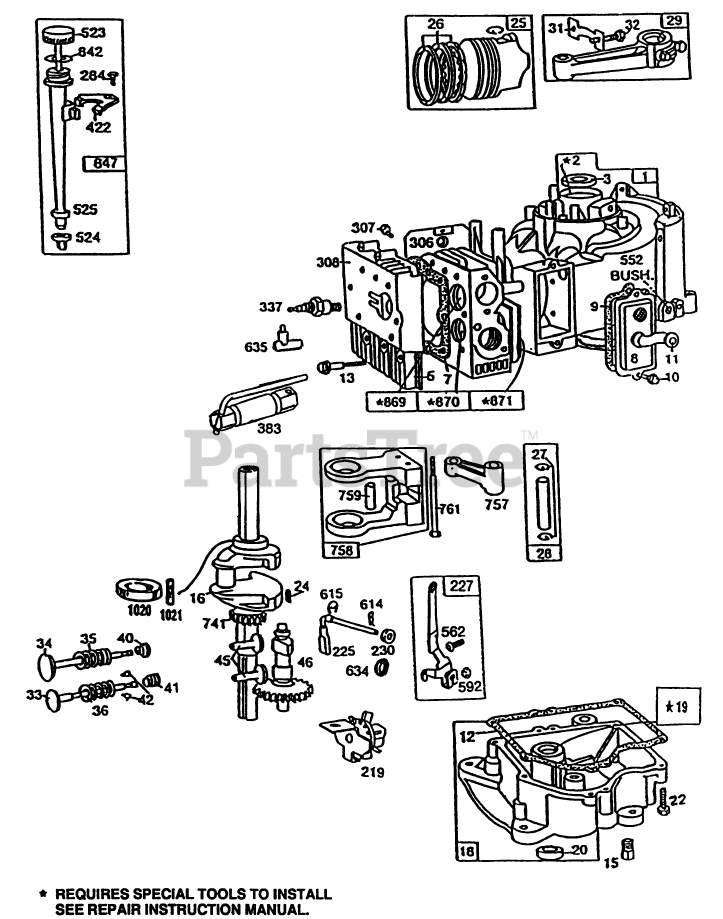

56190 (10-32) - Toro Recycler Rear-Engine Riding Mower (SN: 020000001 - 029999999) (1992) Engine Model 257707-01 24-01 Parts Diagram

Recycler Rear-Engine Riding Mower

Engine Model 257707-01 24-01 Parts Diagram

  • Title

1

Toro 395705

Cylinder Assembly

$

$

Currently unavailable

2

Toro 399265

Bushing and Seal Kit

$

$

Currently unavailable

3

Toro 391086

Seal-Oil

$

$

Currently unavailable

5

Toro 212914

Head-Cylinder

$

$

Currently unavailable

7

Toro 271866

Gasket-Cylinder Head

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

8

Toro 391406

Assembly-Breather

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

10

Toro 94621

Screw

$

$

Currently unavailable

11

Toro 280100

Tube-Breather

$

$

Currently unavailable

12

Toro 271702

Gasket-Cover 1/64"

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

Toro 270915

Gasket-Cover .005"

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

Toro 270916

Gasket-Cover .009"

Note: Included in Gasket Set-Part No. 393411.

$

$

Currently unavailable

13

Toro 93723

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 94239

Plug-Pipe

$

$

Currently unavailable

16

Toro 491647

Crankshaft Note: Order 94196 For Timing Gear Key.

$

$

Currently unavailable

18

Toro 391784

Sump Oil

$

$

Currently unavailable

19

Toro 490666

Bushing-Sump

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

$

$

Currently unavailable

22

Toro 93585

Screw-Sem

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 394661

Piston Assy-Std.

$

$

Currently unavailable

Toro 394662

Piston Assy-.010" O.S.

$

$

Currently unavailable

Toro 394663

Piston Assy-.020" O.S.

$

$

Currently unavailable

Toro 394664

Piston Assy-.030" O.S.

$

$

Currently unavailable

26

Toro 391780

Ring Set (Std.)

$

$

Currently unavailable

Toro 391781

Ring Set (.010 O.S.)

$

$

Currently unavailable

Toro 391782

Ring Set (.020 O.S.)

$

$

Currently unavailable

Toro 391783

Ring Set (.030" O.S.)

$

$

Currently unavailable

27

Toro 260924

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 299691

Pin-Piston (Std.)

$

$

Currently unavailable

Toro 391286

Pin-Piston (.005" OS.)

$

$

Currently unavailable

29

Toro 490348

Rod-Connecting

$

$

Currently unavailable

31

Toro 222299

Lock-Screw
(Superseded to 147567)

$

$

Not available

32

Toro 9290

DISCONTINUED

$

$

Not available

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Currently unavailable

51

Toro 272465

Gasket-Intake

Note: Included in Carburetor Gasket Set-Part No 494385

$

$

Currently unavailable

52

Toro 270872

Gasket-Intake

Note: Included in Gasket Set-Part No 393411

$

$

Currently unavailable

53

Toro 94637

Stud-Mounting, Carbureator

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Currently unavailable

98

Toro 494382

Screw-Idle Speed

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Currently unavailable

105

Toro 231790

Valve Assy-Inlet Needle

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Currently unavailable

106

Toro 281169

Inlet Valve Seat

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Currently unavailable

108

Toro 224666

Valve-Choke

$

$

Currently unavailable

118

Toro 494383

Valve-Needle

$

$

Currently unavailable

121

Toro 494882

Carburetor Overhaul Kit

$

$

Currently unavailable

123

Toro 94616

Screw-Elbow Mtg

$

$

Currently unavailable

125

Toro 494881

Carburetor Assembly

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Not available

130

Toro 224539

Valve-ThroWe

$

$

Currently unavailable

131

Toro 494379

Throttle Shaft Kit

$

$

Currently unavailable

133

Toro 494381

Float-Carburetor

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Part No 494385

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Part No 494385

$

$

Currently unavailable

138

Toro 281164

Washer

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Currently unavailable

141

Toro 494879

Shaft and Lever-Choke

$

$

Currently unavailable

142

Toro 494878

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Currently unavailable

147

Toro 231794

Pilot-Jet

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Currently unavailable

164

Toro 213819

Manifold-Intake

$

$

Currently unavailable

201

Toro 262767

Choke Link

$

$

Currently unavailable

209

Toro 260871

Spring-Governor

$

$

Currently unavailable

216

Toro 262766

Link-Choke

$

$

Currently unavailable

222

Toro 493896

Plate-Gov. Plate

$

$

Currently unavailable

224

Toro 94513

Screw-Sem

$

$

Currently unavailable

232

Toro 262785

Spring-Link

$

$

Currently unavailable

258

Toro 94620

Screw

$

$

Currently unavailable

265

Toro 221535

Clamp-Casing

$

$

Currently unavailable

284A

Toro 94326

Screw-Pan Head

$

$

Currently unavailable

535

Toro 272405

Element-Air Cleaner

$

$

Currently unavailable

537

Toro 281106

O-Ring

$

$

Currently unavailable

611

Toro 494451

Fuel Inlet Tube

$

$

Currently unavailable

618

Toro 262803

Spring-Choke

$

$

Currently unavailable

634A

Toro 281168

Seal-Choke Shaft

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Currently unavailable

634B

Toro 281167

Seal-Throttle Shaft

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Currently unavailable

646

Toro 224546

Brace-Air Cleaner

$

$

Currently unavailable

657

Toro 93496

Screw

$

$

Currently unavailable

872

Toro 281108

Cover-Air Cleaner

$

$

Currently unavailable

875

Toro 494745

Body-Air Cleaner

$

$

Currently unavailable

955

Toro 94642

Plug

$

$

Currently unavailable

965

Toro 94108

Locknut

$

$

Currently unavailable

975

Toro 494378

Bowl-Float

$

$

Currently unavailable

977

Toro 494385

Carburetor Gasket Kit

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Carburetor Overhaul Kit-Part No 494882

$

$

Currently unavailable

33

Toro 261185

Valve-Exhaust

$

$

Currently unavailable
