562 XP - Husqvarna Chainsaw (2011-06) HANDLE CONTROLS Parts Diagram

Chainsaw

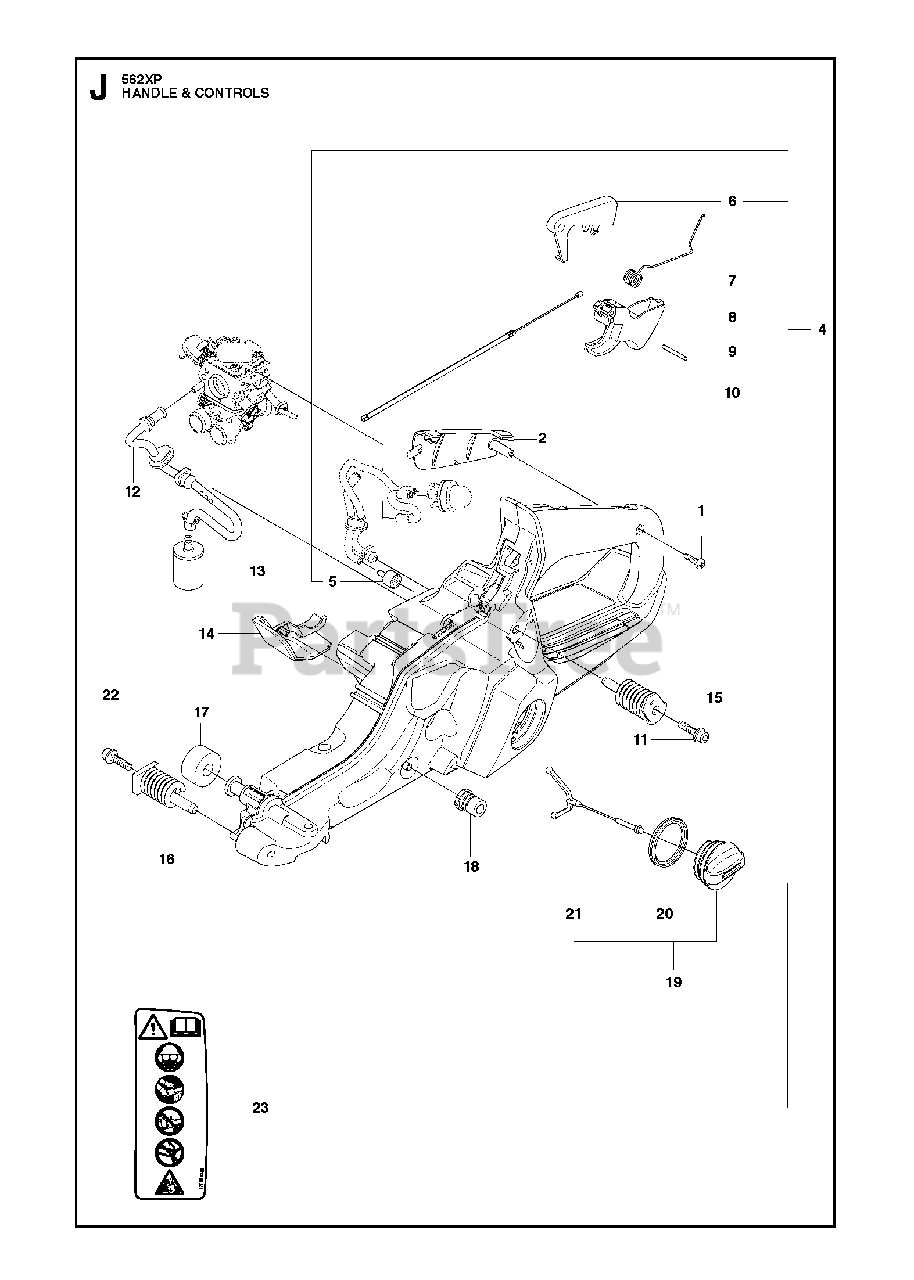

HANDLE CONTROLS Parts Diagram

  • Title

1

Husqvarna 503212813

SCREW

$6.49

$

In Stock, only 2 left!

0

2

Husqvarna 504106301

HANDLE INSERT

$9.49

$

In Stock, only 1 left!

0

4

Husqvarna 575382201

RP FUEL TANK ASSY
(Superseded to 575382205)

$136.99

$

In Stock, only 2 left!

0

5

Husqvarna 537359501

FUEL TANK VENT
(Superseded to 501152901)

Note: . 4

$15.99

$

In Stock, Qty 20+

0

6

Husqvarna 544099801

THROTTLE LOCKOUT

Note: . 4

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 544099901

SPRING

Note: . 4

$7.49

$

In Stock, Qty 10

0

8

Husqvarna 505157701

THROTTLE

Note: . 4

$10.99

$

In Stock, only 1 left!

0

9

Husqvarna 720182520

PIN

Note: . 4

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 521887901

THROTTLE CABLE ASSY

Note: . 4

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503218874

SCREW

$10.99

$

In Stock, Qty 13

0

12

Husqvarna 573993501

RP FUEL HOSE
(Superseded to 573993503)

$11.99

$

In Stock, only 2 left!

0

13

Husqvarna 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

14

Husqvarna 505165901

COVER

$10.99

$

In Stock, only 1 left!

0

15

Husqvarna 505129001

RP ANTIVIBRATION ELEMENT
(Superseded to 578227401)

$22.99

$

In Stock, Qty 11

0

16

Husqvarna 505128701

ANITVIBRATION ELEMENT
(Superseded to 505128702)

$28.99

$

In Stock, Qty 5

0

17

Husqvarna 523085501

DEFLECTION LIMITER

$9.49

$

In Stock, only 2 left!

0

18

Husqvarna 501007601

LATERAL SUPPORT

$7.49

$

In Stock, Qty 8

0

19

Husqvarna 537215202

TANK CAP
(Superseded to 537215207)

$10.99

$

In Stock, Qty 20+

0

20

Husqvarna 537215001

SEALING

Note: . 19

$8.99

$

In Stock, Qty 19

0

21

Husqvarna 503578901

TANK LOCK

Note: . 19

$9.99

$

In Stock, Qty 15

0

22

Husqvarna 503218876

SCREW

$6.49

$

In Stock, Qty 20+

0

23

Husqvarna 577844301

DECAL

Note: . 4

$5.99

$

Usually ships in 3-10 days

0
