562 XP - Husqvarna Chainsaw (2011-06) IGNITION SYSTEM Parts Diagram

Chainsaw

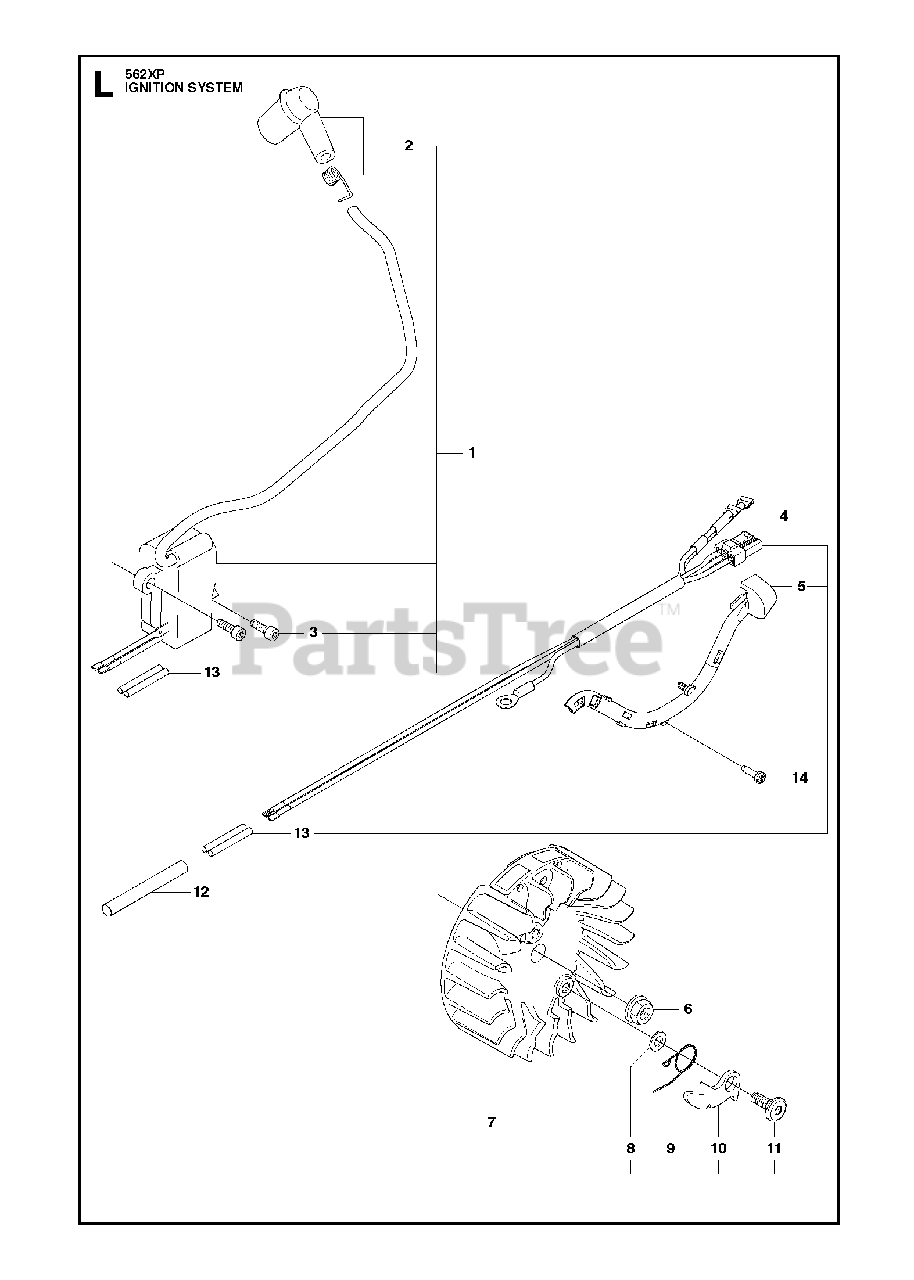

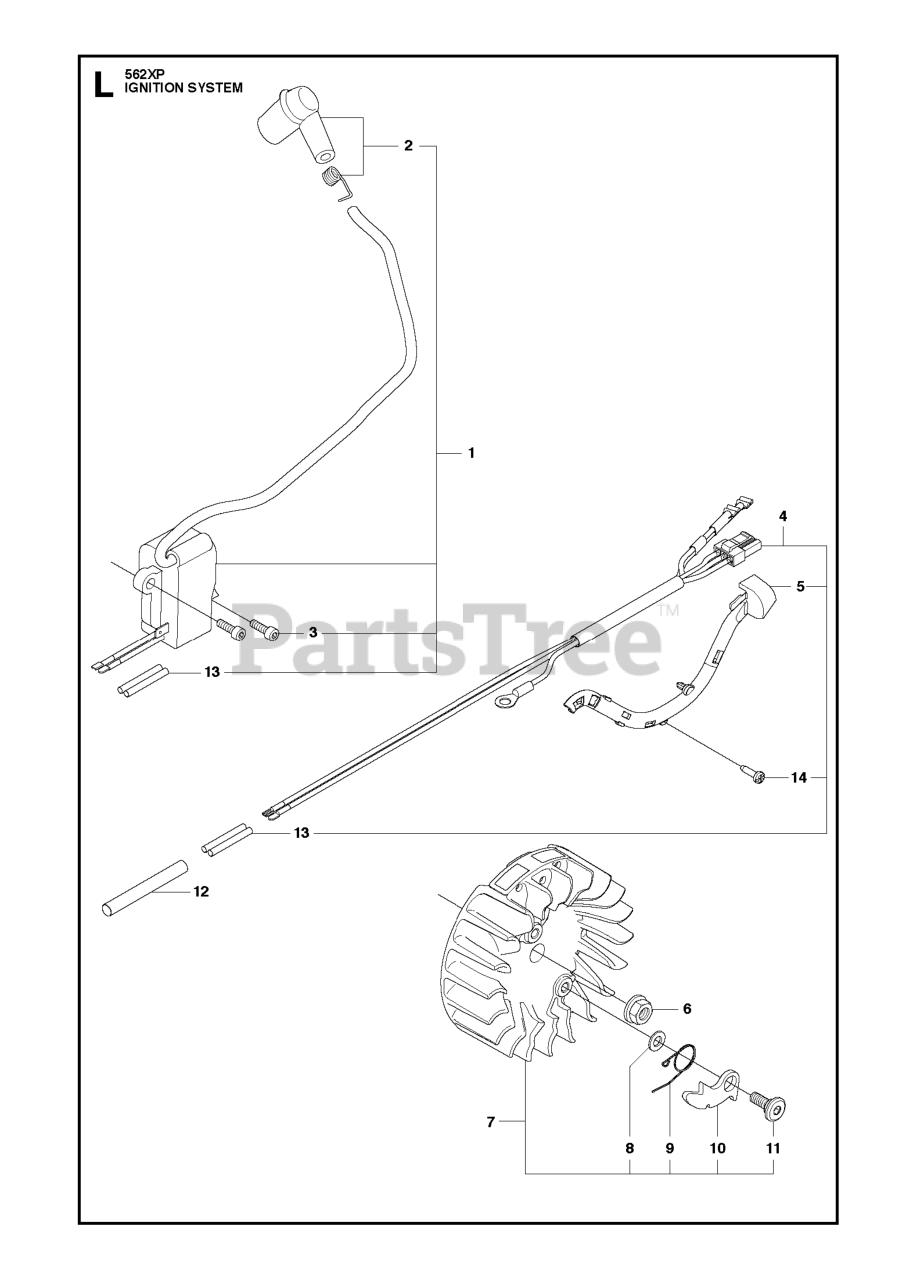

IGNITION SYSTEM Parts Diagram

  • Title

14

Husqvarna 503212813

SCREW

Note: . 4

$3.49

$

In Stock, only 2 left!

0

1

Husqvarna 575428401

IGNITION MODULE ASSY
(Superseded to 522795106)

$79.99

$

In Stock, only 1 left!

0

2

Husqvarna 501485404

SPARK PLUG CAP ASSY

Note: . 1

$14.99

$

Usually ships in 3-10 days

0

3

Husqvarna 503200220

SCREW

Note: . 1

$5.49

$

In Stock, Qty 12

0

4

Husqvarna 575430601

WIRING ASSY

$68.99

$

Usually ships in 3-10 days

0

5

Husqvarna 505178201

CABLE HOLDER

Note: . 4

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503220401

NUT W/ WASHER

$5.49

$

In Stock, Qty 6

0

7

Husqvarna 504872401

FLYWHEEL ASSY
(Superseded to 504872403)

$159.99

$

Usually ships in 3-10 days

0

8

Husqvarna 503230042

WASHER

$3.49

$

In Stock, only 3 left!

0

9

Husqvarna 501673501

SPRING

$3.49

$

In Stock, only 2 left!

0

10

Husqvarna 501673201

PAWL

$7.99

$

In Stock, only 2 left!

0

11

Husqvarna 501819901

SCREW M5X14

$5.49

$

In Stock, Qty 5

0

12

Husqvarna 504043505

CABLE COVER

Note: . 1 4

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503238501

SHRINK HOSE

Note: . 4

$3.49

$

Usually ships in 3-10 days

0
