562 XP - Husqvarna Chainsaw (2011-06) STARTER Parts Diagram

Chainsaw

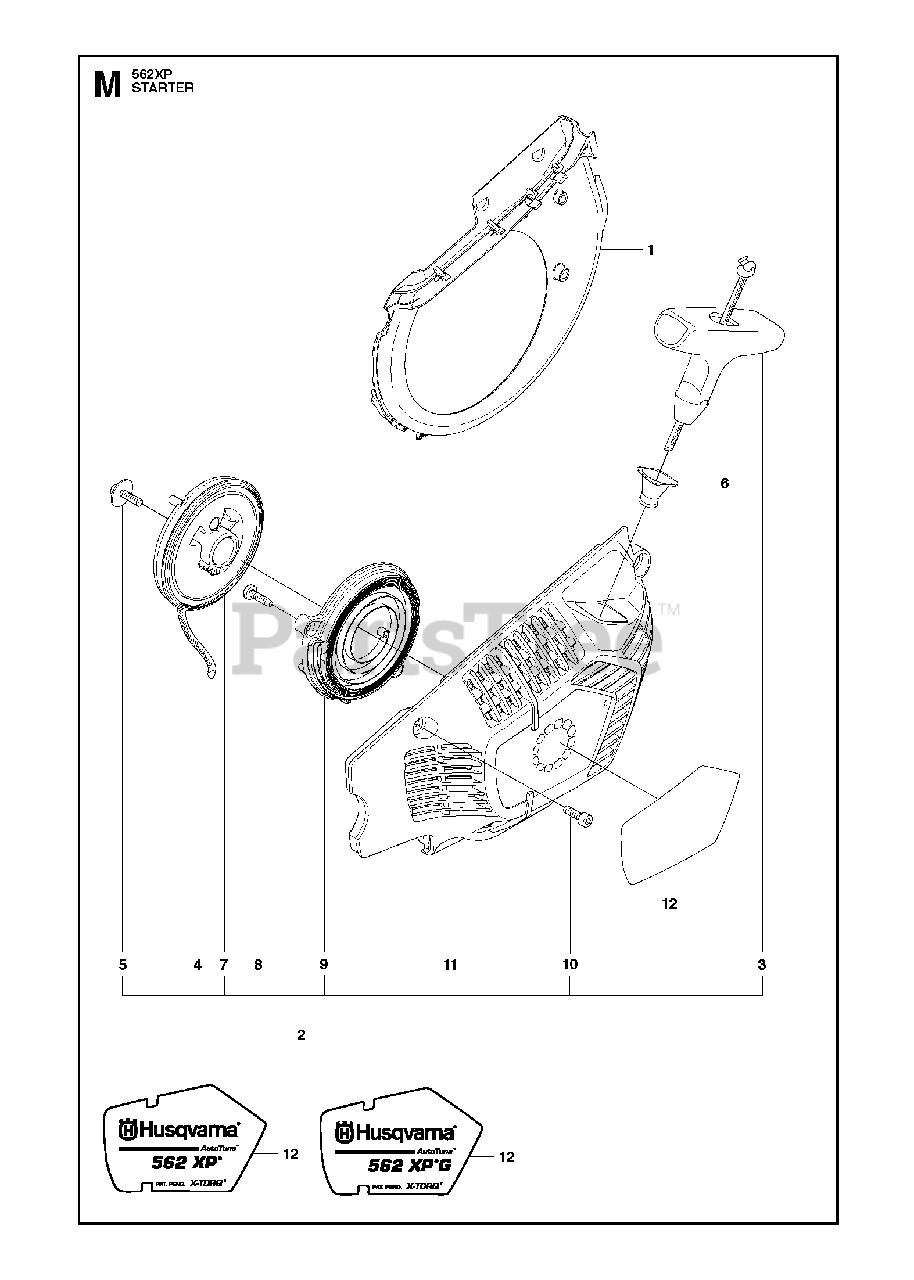

STARTER Parts Diagram

  • Title

1

Husqvarna 505157501

COOLING AIR CONDUCTOR

$17.99

$

In Stock, only 1 left!

0

2

Husqvarna 505159201

RP STARTER ASSY
(Superseded to 505159204)

$85.99

$

Usually ships in 3-10 days

0

3

Husqvarna 537232501

HANDLE

Note: . 2

$10.99

$

In Stock, Qty 6

0

4

Husqvarna 505305125

STARTER ROPE

Note: . 2

$8.99

$

In Stock, Qty 13

0

5

Husqvarna 503205216

SCREW

Note: . 2

$4.99

$

In Stock, Qty 9

0

6

Husqvarna 537283201

SLEEVE

Note: . 2

$12.99

$

In Stock, only 4 left!

0

7

Husqvarna 505158101

STARTER PULLEY ASSY

Note: . 2

$15.99

$

In Stock, Qty 14

0

8

Husqvarna 503212813

SCREW

Note: . 2

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 505157901

SPRING CASSETTE ASSY
(Superseded to 505157902)

Note: . 2

$15.99

$

Usually ships in 3-10 days

0

10

Husqvarna 544080301

SCREW

Note: . 2

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 505159101

RP STARTER HOUSING
(Superseded to 505159102)

Note: . 2

$34.99

$

Usually ships in 3-10 days

0

12

Husqvarna 523035605

LABEL

Note: XP

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 523035606

LABEL

Note: XPG

$5.99

$

Usually ships in 3-10 days

0
