562 XP/XPG - Husqvarna Chainsaw CLUTCH & OIL PUMP Parts Diagram

Chainsaw

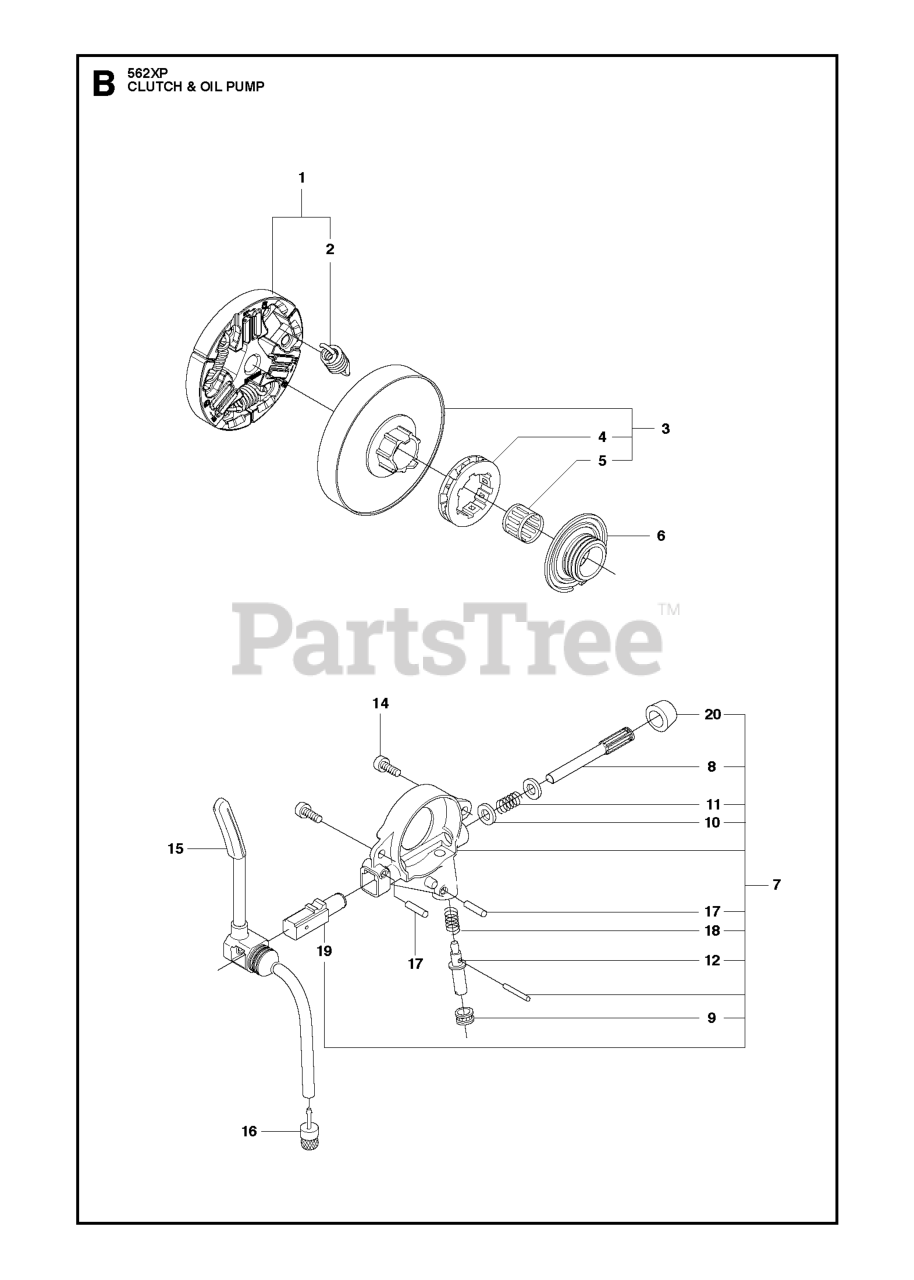

CLUTCH & OIL PUMP Parts Diagram

  • Title

1

Husqvarna 589809001

CLUTCH ASSY 60CC
(Superseded to 589809002)

$45.99

$

In Stock, only 2 left!

0

2

Husqvarna 502164701

CLUTCH SPRING

Note: s/n from 20164100193 -

$6.99

$

Usually ships in 3-10 days

0

2

Husqvarna 580653502

CLUTCH SPRING

Note: s/n from 20133400001 - up to s/n 20164100192

$5.99

$

Usually ships in 3-10 days

0

3

Husqvarna 575261005

CLUTCH DRUM ASSY RIM .325"7T

$51.99

$

In Stock, only 2 left!

0

3

Husqvarna 575261006

CLUTCH DRUM 3/8" 7T

Note: "3/8""x7"

$51.99

$

In Stock, only 3 left!

0

4

Husqvarna 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

$9.49

$

In Stock, Qty 18

0

4

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

Note: "3/8""x7"

$9.49

$

In Stock, Qty 16

0

5

Husqvarna 503253401

SUPPORT BUSHING

$24.99

$

In Stock, only 2 left!

0

6

Husqvarna 577548101

RP WORM WHEEL
(Superseded to 577601101)

$13.99

$

In Stock, only 2 left!

0

7

Husqvarna 505199906

OIL PUMP ASSY
(Superseded to 505199909)

$43.99

$

In Stock, only 2 left!

0

8

Husqvarna 505200203

PUMP PISTON

$20.99

$

Usually ships in 3-10 days

0

9

Husqvarna 505200301

CASING

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503230060

WASHER

$2.49

$

In Stock, only 1 left!

0

11

Husqvarna 503891601

SPRING

$6.99

$

In Stock, only 3 left!

0

12

Husqvarna 505157001

ADJUSTING SCREW

$7.99

$

In Stock, only 1 left!

0

14

Husqvarna 526818102

SCREW ITXSCM M4X15 T27 12.9 T

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 575847801

OIL HOSE

$13.99

$

Usually ships in 3-10 days

0

16

Husqvarna 504710003

OIL PLUMMET

$13.99

$

In Stock, only 2 left!

0

17

Husqvarna 720123300

PIN 3X10

$2.49

$

In Stock, only 1 left!

0

18

Husqvarna 503891501

SPRING

$4.99

$

In Stock, Qty 7

0

19

Husqvarna 505200101

PUMP CYLINDER

$7.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503624903

SEALING PLUG GREEN

$3.49

$

Usually ships in 3-10 days

0
