565 - Husqvarna Chainsaw CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

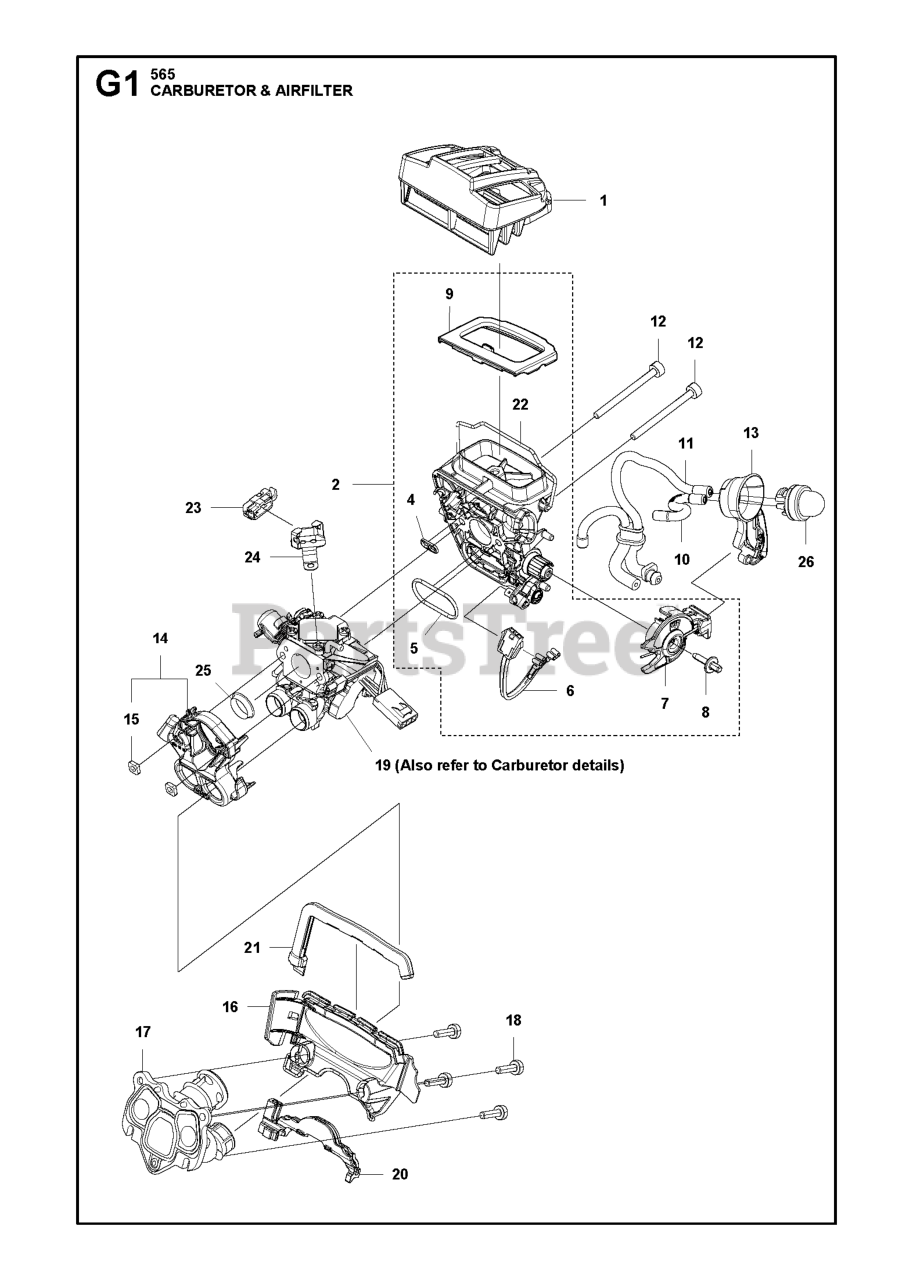

CARBURETOR & AIR FILTER Parts Diagram

  • Title

1

Husqvarna 575526401

AIR FILTER ASSY H565 64 MICRON

Note: 64 microns

$62.99

$

Usually ships in 3-10 days

0

1

Husqvarna 575526402

AIR FILTER ASSY H565 25 MICRON

Note: 25 microns

$31.99

$

Usually ships in 3-10 days

0

1

Husqvarna 575526403

AIR FILTER ASSY H565 NW

Note: Non Woven

$35.99

$

Usually ships in 3-10 days

0

2

Husqvarna 577419005

INLET ELBOW STANDARD SPARE PAR

Note: Std

$66.99

$

Usually ships in 3-10 days

0

4

Husqvarna 525619201

SEALING

$5.99

$

In Stock, Qty 11

0

5

Husqvarna 525619001

SEALING

$9.49

$

In Stock, Qty 9

0

6

Husqvarna 577536402

WIRING ASSY STOP

$11.99

$

Usually ships in 3-10 days

0

7

Husqvarna 510017202

CHOKE CONTROL ASSY CHOKE/STOP

$12.99

$

In Stock, only 1 left!

0

8

Husqvarna 505156201

SCREW

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 589378401

SEALING FILTER HOLDER

$12.99

$

Usually ships in 3-10 days

0

10

Husqvarna 523056801

FUEL HOSE

$7.99

$

In Stock, only 3 left!

0

11

Husqvarna 525344303

FUEL HOSE PURGE/TANKVENTILATIO

$22.99

$

In Stock, only 1 left!

0

12

Husqvarna 581143101

SCREW ITXSCFM M4X50 T20 12.9

$5.99

$

Usually ships in 3-10 days

0

13

Husqvarna 525588101

SEALING

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 505165202

FLANGE CARBURETTOR FLANGE

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503226503

NUT

$7.49

$

In Stock, only 2 left!

0

16

Husqvarna 501182001

BAFFLE INTERMEDIATE WALL INTER

$11.99

$

Usually ships in 3-10 days

0

17

Husqvarna 575235301

INLET PIPE H565/H572 STD

Note: Std

$50.99

$

In Stock, only 1 left!

0

17

Husqvarna 575235302

INLET PIPE H565/H572 COLD

Note: Winter

$45.99

$

Usually ships in 3-10 days

0

18

Husqvarna 526818101

SCREW ITXSCM M4X15 T27 12.9 T

$6.49

$

In Stock, only 3 left!

0

19

Husqvarna 591158302

CARBURETTOR KIT 565XP

Note: C1M-140062B

$226.99

$

Usually ships in 3-10 days

0

20

Husqvarna 582179501

SEALING INLET PIPE

$11.99

$

Usually ships in 3-10 days

0

21

Husqvarna 590059501

SEALING BAFFLE

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 575527801

CLAMP

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 589340701

CONTACT CLAMP

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 589340601

RETAINER CONTACT CLAMP

$6.99

$

Usually ships in 3-10 days

0

25

Husqvarna 582025101

SUPPORT SLEEVE

$24.99

$

Usually ships in 3-10 days

0

26

Husqvarna 503936601

AIR PURGE BUBBLE

$18.99

$

In Stock, Qty 20+

0
