56575 - Toro 25" Whirlwind Rear-Engine Riding Mower, Electric (SN: 002000001 - 002999999) (1972) ENGINE AND DIFFERENTIAL ASSEMBLY Parts Diagram

25" Whirlwind Rear-Engine Riding Mower, Electric

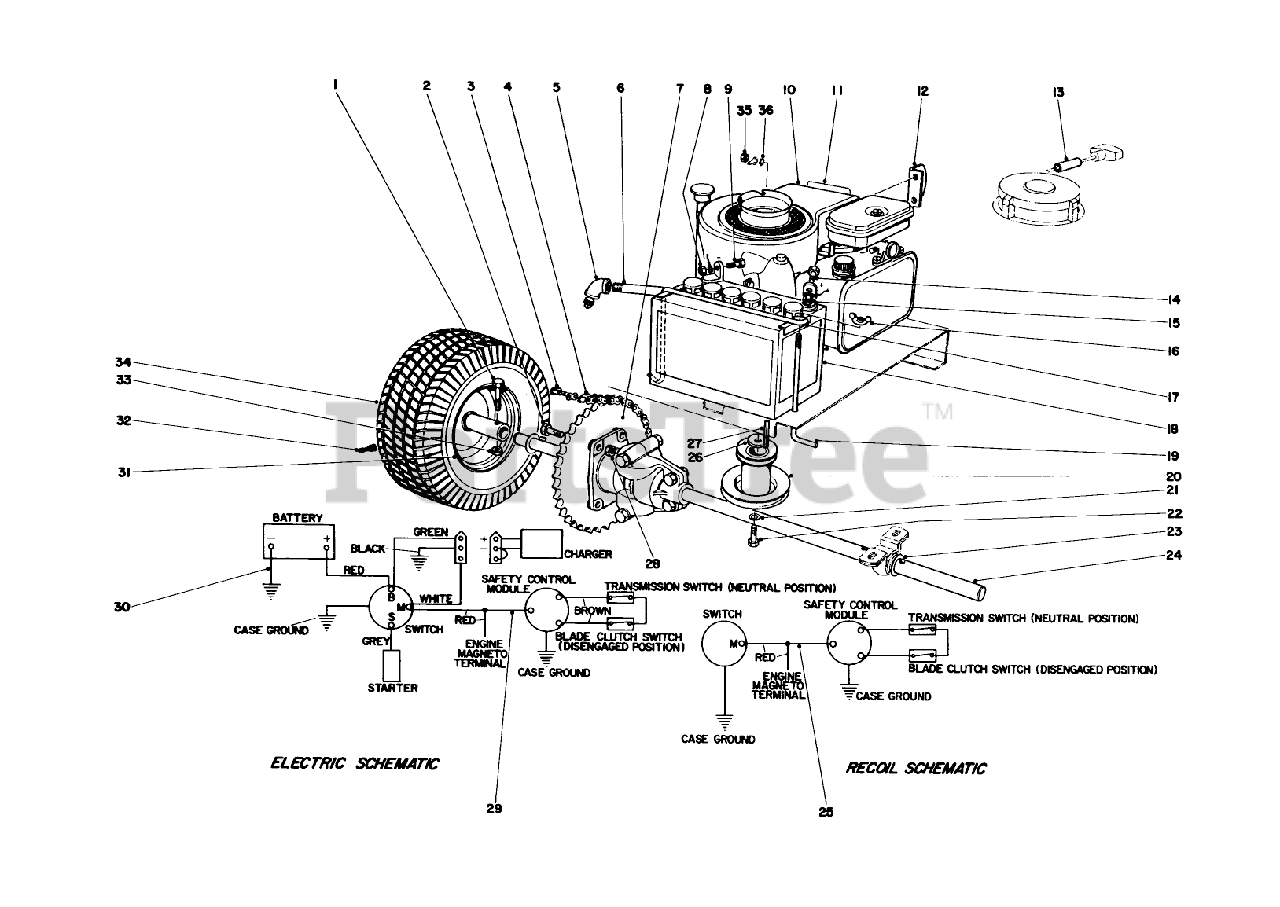

ENGINE AND DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title

1

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

4

Toro 17-1700

Chain

$

$

Not available

5

Toro 2813-12

ELBOW - 45 DEGREES

$

$

Not available

6

Toro 289-19

NIPPLE

$19.99

$

Usually ships in 3-6 days

0

7

Toro 12-1940

Sprocket

$

$

Not available

8

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

9

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

10

Toro 221432

Engine for (Model 56575)

$

$

Not available

Toro 221-431

Engine for (Model 56525)

Note: Not illustrated

$

$

Currently unavailable

11

Toro 11-3450

Caution Decal

$

$

Currently unavailable

12

Toro 17-4790

Plate Plug Protector

$

$

Currently unavailable

13

Toro 17-1350

Spacer-Starter Rope (Model 56525)

$

$

Currently unavailable

14

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

16

Toro 32103-14

NUT-WING SPECL

$13.99

$

In Stock, only 1 left!

0

17

Toro 12-5700

Battery Clamp

$

$

Not available

18

Toro 239-15

Battery
(Superseded to 26-7290)

$

$

Not available

19

Toro 12-5950

ROD-SUPPORT, BATTERY

$23.99

$

Usually ships in 3-6 days

0

20

Toro 12-8240

Pulley

$

$

Currently unavailable

21

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

22

Toro 3211-4

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

23

Toro 11-4930

WASHER

$

$

Not available

24

Toro 11-1800

Differential

$

$

Not available

25

Toro 17-1760

Wire Harness (Model 56525)

$

$

Currently unavailable

26

Toro 17-2370

Spacer

$

$

Currently unavailable

27

Toro 6-8590

KEY

$12.99

$

Usually ships in 3-6 days

0

28

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 6

0

29

Toro 17-2390

Wire Harness (Model 56575)

$

$

Currently unavailable

30

Toro 12-9930

Wire Assembly (Model 56575)

$

$

Currently unavailable

31

Toro 241-110

Rim

$

$

Not available

32

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 13

0

33

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

34

Toro 23149

Terra Tire

$

$

Currently unavailable

Toro 231-67

Tire
(Superseded to 231-115)

Note: Not illustrated

$97.99

$

Usually ships in 3-6 days

0

35

Toro 3217-25

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

36

Toro 3255-20

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

Toro 7-6580

Battery Charger
(Superseded to 44-7250)

Note: Not illustrated

$160.99

$

Usually ships in 3-6 days

0
