56575 - Toro 25" Whirlwind Rear-Engine Riding Mower, Electric (SN: 002000001 - 002999999) (1972) Model 130905-0368 Engine Assembly (electric Start) Briggs Stratton Parts Diagram

25" Whirlwind Rear-Engine Riding Mower, Electric

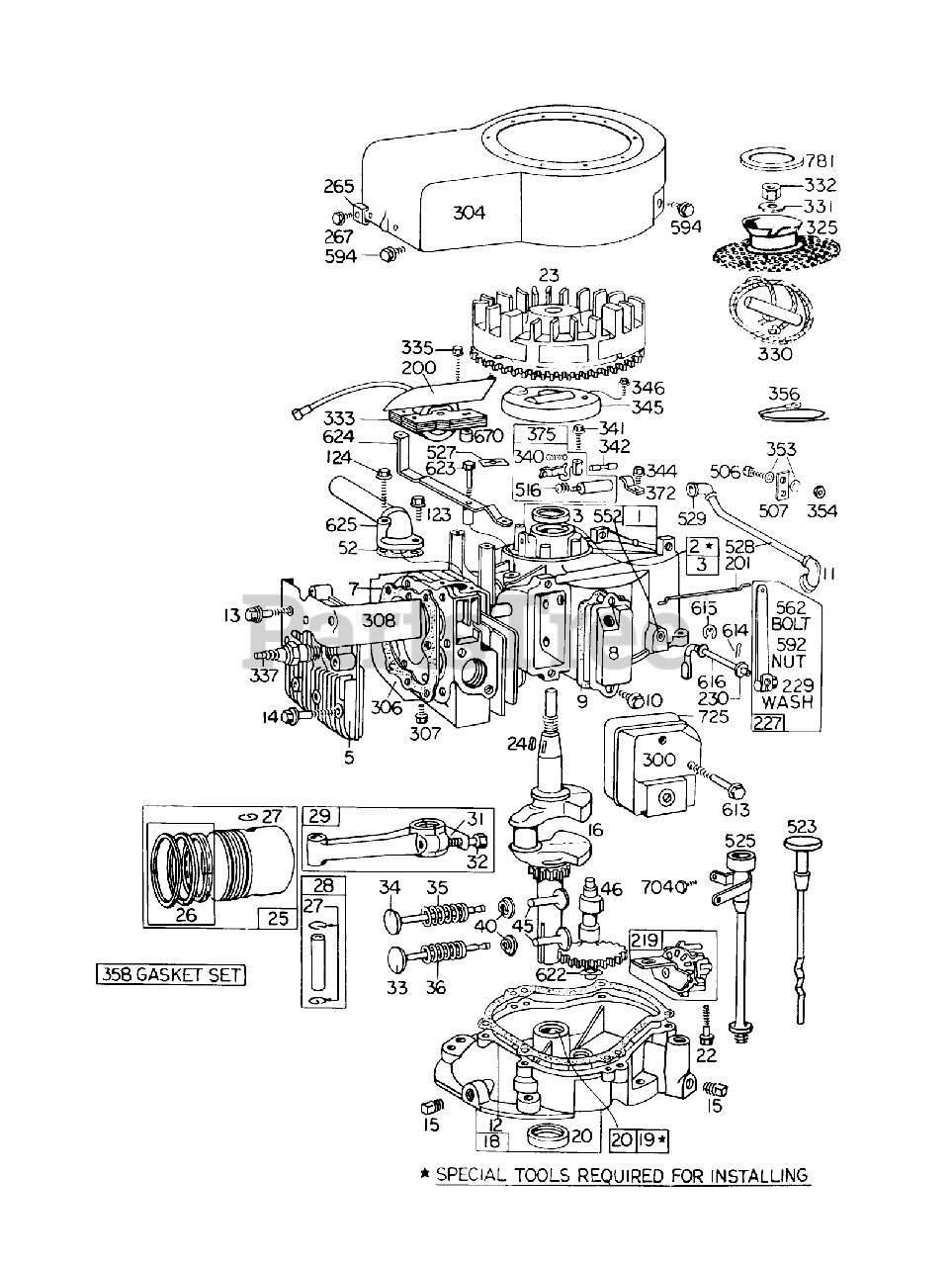

Model 130905-0368 Engine Assembly (electric Start) Briggs Stratton Parts Diagram

  • Title

1

Toro 299446

Cylinder Assembly

$

$

Currently unavailable

2

Toro 297565

Bushing-Cylinder

$

$

Currently unavailable

3

Toro 89660

Seal-Oil

$

$

Currently unavailable

5

Toro 211542

Head-Cylinder

$

$

Currently unavailable

7

Toro 270383

Gasket-Cylinder Head

$

$

Currently unavailable

8

Toro 297261

Breather-Valve Chamber

$

$

Currently unavailable

9

Toro 27549

Gasket Breather

Note: Included in Gasket Set-Part No. 297616.

$

$

Currently unavailable

10

Toro 93394

Screw

$

$

Currently unavailable

11

Toro 67738

Grommet-Breather

$

$

Currently unavailable

12

Toro 270069

Gasket-Crankcase.015" Thick (Std.)

$

$

Currently unavailable

Toro 270122

Gasket-Crankcase-.005" thick

$

$

Currently unavailable

Toro 270123

Gasket-Crankcase-.009" thick

$

$

Currently unavailable

13

Toro 93368

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 93369

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 91084

Plug-Pipe

$

$

Currently unavailable

16

Toro 261100

Crankshaft

$

$

Currently unavailable

18

Toro 390575

Sump-Oil

$

$

Currently unavailable

19

Toro 297604

Bushing-Oil Sump

$

$

Currently unavailable

20

Toro 294167

Seal-Oil

$

$

Currently unavailable

22

Toro 93032

Screw

$

$

Currently unavailable

23

Toro 390509

Flywheel-Magneto

$

$

Currently unavailable

24

Toro 61760

Key Flywheel

$

$

Currently unavailable

25

Toro 298904

Piston Assy.-Std.

$

$

Currently unavailable

Toro 298905

Piston Assy.-010"O.S.

$

$

Currently unavailable

Toro 298906

Piston Assy.-020"O.S.

$

$

Currently unavailable

Toro 298907

Piston Assy. .030" O.S.

$

$

Currently unavailable

26

Toro 298982

Ring Set (Std.)

$

$

Currently unavailable

Toro 298983

Ring Set (.010" O.S.)

$

$

Currently unavailable

26

Toro 298984

Ring Set (.020" O.S.)

$

$

Currently unavailable

Toro 298985

Lock-Piston Pin

$

$

Currently unavailable

27

Toro 26026

Iock-Piston Pin

$

$

Currently unavailable

28

Toro 298909

Pin Ass-y-Piston

$

$

Currently unavailable

Toro 298908

Pin-Piston (.005 Undersize)

$

$

Currently unavailable

29

Toro 299429

Rod Assy.-Connecting

$

$

Currently unavailable

31

Toro 221876

Lock

$

$

Not available

32

Toro 92296

Screw, Conn.Rod

$

$

Currently unavailable

33

Toro 211119

Valve Exhaust

$

$

Currently unavailable

34

Toro 261044

Valve-Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

45

Toro 260642

Tappet-Valve

$

$

Currently unavailable

46

Toro 211590

Gear-Cam

$

$

Currently unavailable

52

Toro 270070

Gasket-Intake Elbow Mtg.

$

$

Currently unavailable

123

Toro 93512

Screw Elbow Mtg.

$

$

Currently unavailable

124

Toro 93367

Screw-Intake EIbow Mtg.

$

$

Currently unavailable

200

Toro 221480

Guide-Air

$

$

Currently unavailable

201

Toro 260649

Link-Govemor

$

$

Currently unavailable

219

Toro 297249

Oil Slinger Gear, Gov. Bracket

$

$

Currently unavailable

227

Toro 297583

Lever Assy.-Governor

$

$

Currently unavailable

229

Toro 220680

Washer

$

$

Currently unavailable

230

Toro 221559

Clamp-Casing

$

$

Currently unavailable

265

Toro 22372

Clamp-Casing

$

$

Currently unavailable

267

Toro 93469

Screw

$

$

Currently unavailable

300

Toro 297274

Muffler-Exhaust

$

$

Currently unavailable

304

Toro 390320

Housing-Blower

$

$

Currently unavailable

306

Toro 221484

Shield-Cylinder

$

$

Currently unavailable

307

Toro 93042

Screw

$

$

Currently unavailable

308

Toro 221452

Cover-Cylinder Head

$

$

Currently unavailable

325

Toro 299421

Starter Pulley with Screen

$

$

Currently unavailable

330

Toro 69932

Rope-Starter

$

$

Currently unavailable

331

Toro 220865

Washer

$

$

Currently unavailable

332

Toro 92284

Nut

$

$

Currently unavailable

333

Toro 298316

Armature-Magneto

$

$

Currently unavailable

335

Toro 93613

Screw-Armature Mounting

$

$

Currently unavailable

337

Toro 298809

Plug Spark

$

$

Currently unavailable

340

Toro 26018

Spring Breaker Arm

$

$

Currently unavailable

341

Toro 93381

Screw

$

$

Currently unavailable

342

Toro 65704

Plunger

$

$

Currently unavailable

344

Toro 93042

Screw

$

$

Currently unavailable

345

Toro 220366

Cover Breaker Pt. Cond.

$

$

Currently unavailable

346

Toro 93014

Screw

$

$

Currently unavailable

353

Toro 92791

Washer-Lock

$

$

Currently unavailable

354

Toro 90576

Nut

$

$

Currently unavailable

356

Toro 295413

Wire-Ground

$

$

Currently unavailable

358

Toro 297616

Gasket Set

$

$

Currently unavailable

372

Toro 220477

Camp-Condenser

$

$

Currently unavailable

375

Toro 294628

Set

$

$

Currently unavailable

Toro 294628

Set

$

$

Currently unavailable

Toro 65704

Plunger

$

$

Currently unavailable

Toro 61760

Key Flywheel

$

$

Currently unavailable

506

Toro 90200

Screw-Terminal

$

$

Currently unavailable

507

Toro 66895

InsuIator

$

$

Currently unavailable

516

Toro 260374

Spring Connector

$

$

Currently unavailable

523

Toro 390212

Cap and Dipstick-Oil Filler

$

$

Currently unavailable

525

Toro 390217

Tube-Oil Filler

$

$

Currently unavailable

527

Toro 93376

Dip-Breather Pipe

$

$

Currently unavailable

528

Toro 230717

55323 REVISED PARTS

$3.23

$

Usually ships in 3-6 days

0

529

Toro 67608

Grommet-Breather Tube

$

$

Currently unavailable

552

Toro 230735

Bushing-Governor Shaft

$

$

Currently unavailable

562

Toro 92613

Bolt

$

$

Currently unavailable

592

Toro 90356

Nut

$

$

Currently unavailable

594

Toro 93559

Screw

$

$

Currently unavailable

613

Toro 93377

Screw-Hex. Hd.

$

$

Currently unavailable

614

Toro 93306

Pin-Cotter

$

$

Currently unavailable

615

Toro 93307

Retainer-Ring

$

$

Currently unavailable

616

Toro 230714

Crank-Governor

$

$

Currently unavailable

622

Toro 260676

Washer-Spring (Used between cam gear box and oil slingerbracket)

$

$

Currently unavailable

623

Toro 93566

Screw-ShouIder

$

$

Currently unavailable

624

Toro 297252

Lever-Linkage

$

$

Currently unavailable

625

Toro 297254

Elbow and Tube-Intake

$

$

Currently unavailable

670

Toro 261065

Spacer

$

$

Currently unavailable

704

Toro 93612

Screw

$

$

Currently unavailable

725

Toro 221885

Heat Shield

$

$

Currently unavailable

781

Toro 280068

Cap-Starter Pulley

$

$

Currently unavailable
