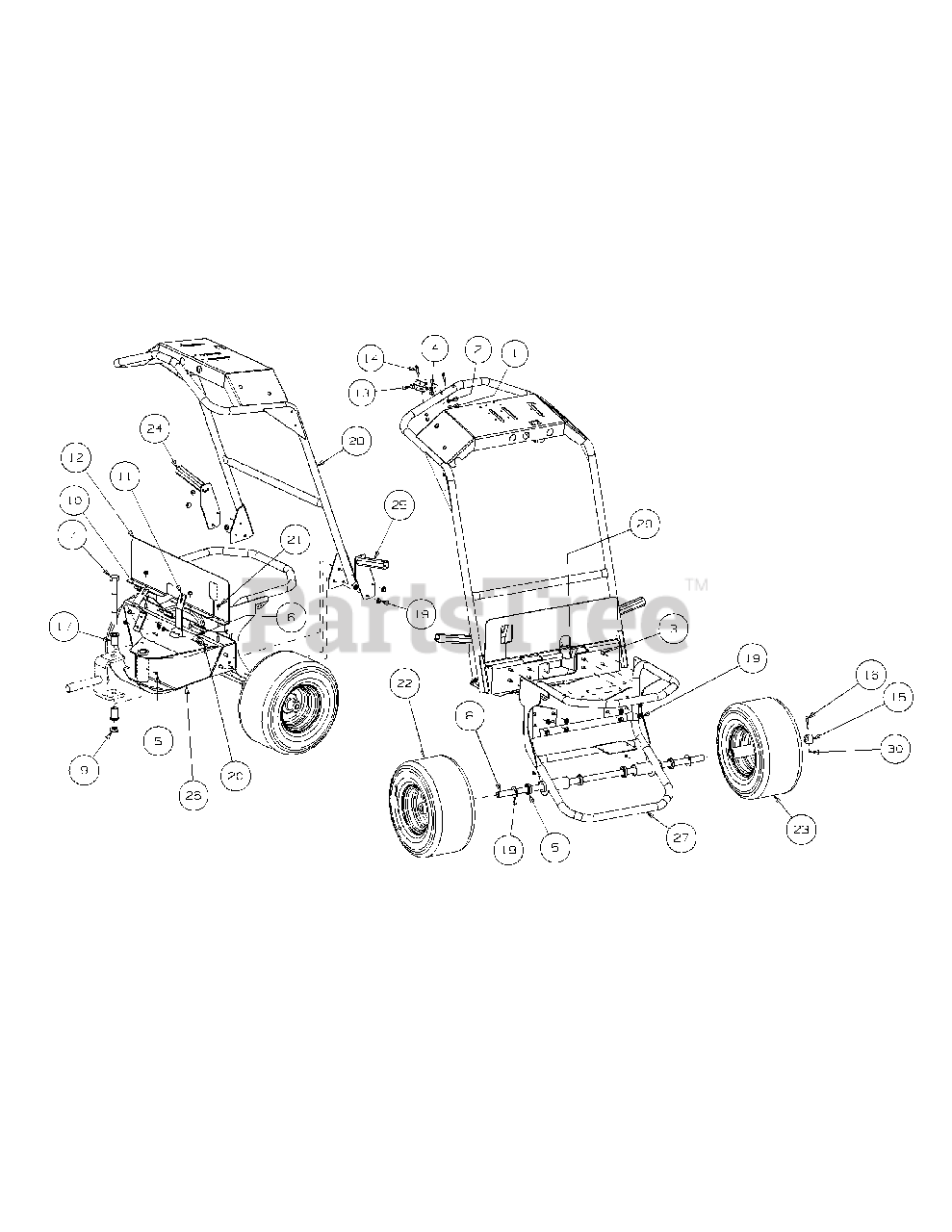

56A34DT2750 - Cub Cadet XP Stand-On Spreader Sprayer Front Frame Assembly Parts Diagram

XP Stand-On Spreader Sprayer

Front Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 712-0161

Nut, #10-24

$4.99

$

In Stock, Qty 16

0

2

Cub Cadet 00016771

Washer, 3/16

$

$

Not available

3

Cub Cadet 00031485

Carriage Bolt, 5/16-18 x 3/4, SS

$

$

Not available

4

Cub Cadet 00060033

Washer, 1/4, SS
(Superseded to 736-05152)

$8.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, only 4 left!

0

6

Cub Cadet 00061502

Support Clamp

$

$

Not available

7

Cub Cadet 01004185

Hex Cap Screw, 3/4-16 x 6.50

$43.99

$

In Stock, only 2 left!

0

8

Cub Cadet 01007833

Front Axle

$189.99

$

In Stock, only 3 left!

0

9

Cub Cadet 01009255

Jam Nut, 3/4-16

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 01009256

Shut-Off Cable bracket

$

$

Not available

11

Cub Cadet 01009257

Deflector Cable bracket

$44.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01009304

Shield, SS

$

$

Not available

13

Cub Cadet 01009323-0637

Speed Control Lever

$

$

Not available

14

Cub Cadet 01009358

Shoulder Bolt, 1/4 x 1.25

$

$

Not available

15

Cub Cadet 01009499

Shaft Collar

$33.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01009831

Screw, 10-24 x 1.25

$7.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 01009896

Bushing

$8.49

$

In Stock, only 2 left!

0

18

Cub Cadet 01009897

Washer, .89ID x 1.5OD x .09, SS

$6.49

$

In Stock, Qty 6

0

19

Cub Cadet 02004352

Nut, 5/16-18, Flange Whiz, SS

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02004353

Carriage Bolt, 1/4-20 x 3/4, SS

$

$

Not available

21

Cub Cadet 02004354

Nut, 1/4-20 Flange Whiz, SS

$

$

Not available

22

Cub Cadet 634-04556

Drive Wheel Assmebly, 13 x 6.5-6

$

$

Not available

23

Cub Cadet 634-04557

Idler Wheel Assembly, 13 x 6.5-6

$

$

Not available

24

Cub Cadet 680-00019-0637

Nozzle Bracket Assembly, LH

$

$

Not available

25

Cub Cadet 680-00020-0637

Nozzle Bracket Assembly, RH

$

$

Not available

26

Cub Cadet 680-00028

Pivot Assembly

$

$

Not available

27

Cub Cadet 680-00070

Front Frame bearing Assembly Includes:

$

$

Not available

27

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, only 4 left!

0

27

Cub Cadet 00060041

Axle Bearing

$6.99

$

In Stock, Qty 16

0

28

Cub Cadet 680-00038-0637

Handle Weldment

$

$

Not available

29

Cub Cadet 703-06819-0637

Nozzle Bracket, Center

$

$

Not available

30

Cub Cadet 712-0161

Nut, #10-24, Nylon Lock

$4.99

$

In Stock, Qty 16

0

31

Cub Cadet 00060041

Axle Bearing

$6.99

$

In Stock, Qty 16

0

Cub Cadet 01001252

Vinyl Hopper Cover w/Clear Center

$45.99

$

Usually ships in 3-6 days

0
