56A35D4K750 - Cub Cadet Tank Ride-On Sprayer Spreader Floor Panel Assembly Parts Diagram

Tank Ride-On Sprayer Spreader

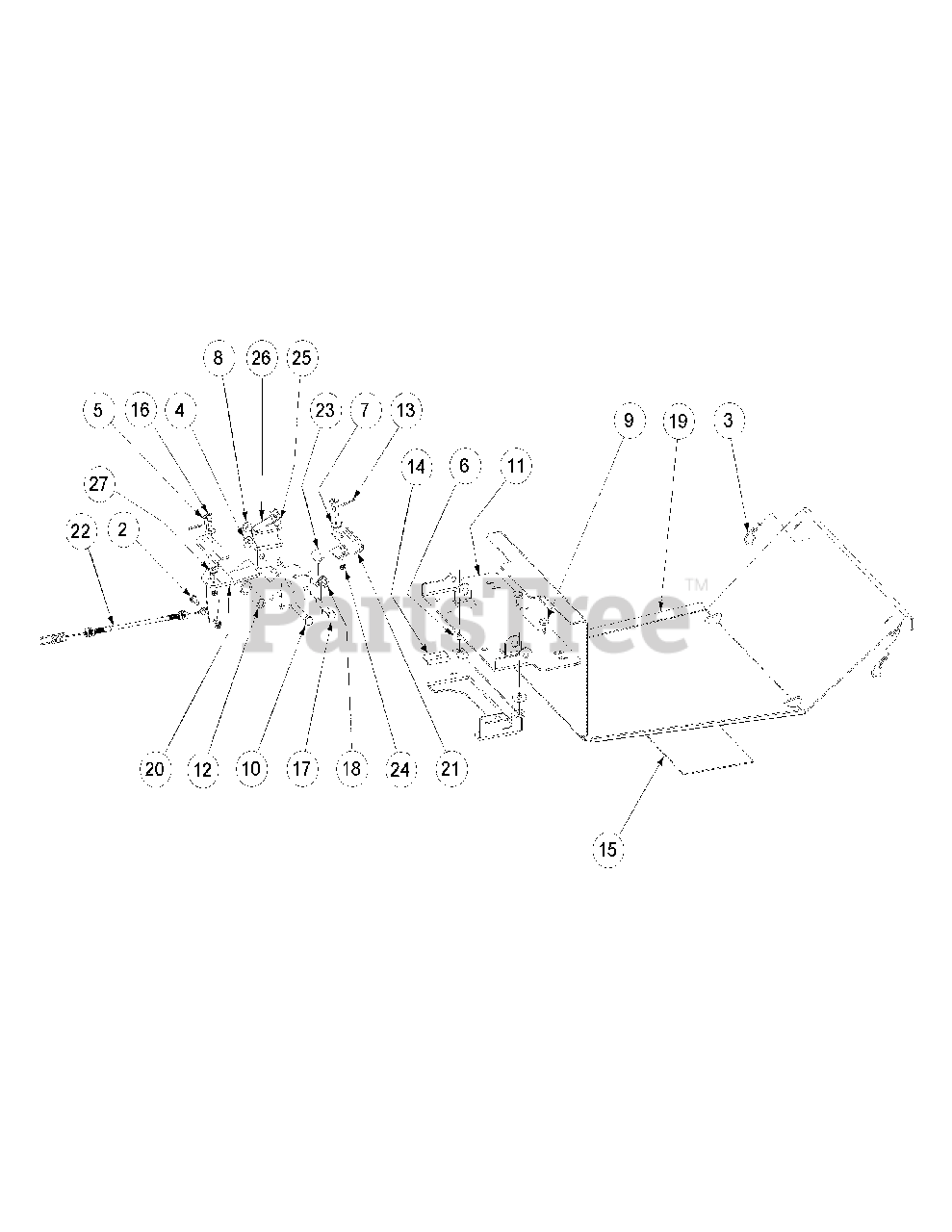

Floor Panel Assembly Parts Diagram

  • Title

1

Cub Cadet 00012152

Lock Nut w/Nylon Insert

$3.99

$

In Stock, only 1 left!

0

2

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00021956

Hair Pin, 3/8" - 1/2"
(Superseded to 914-04023)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00022560

Nut, Hex, Flange Lock, 3/8-16
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00060031

Clevis Pin, 1/4 x 1/2, SS
(Superseded to 715-05056)

$8.99

$

In Stock, only 2 left!

0

6

Cub Cadet 00083192

Washer
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 01000489

Bell Washer, .265 x .75 x .062
(Superseded to 736-0270)

$3.99

$

In Stock, Qty 10

0

8

Cub Cadet 712-3004A

Nut Lock, Hex Flange 5/16-18

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 935-0199A

Rubber Bumper, .62 OD x .22 Thick
(Superseded to 735-0199A)

$6.99

$

In Stock, Qty 16

0

10

Cub Cadet 710-3022

Hex Cap Screw, 3/8-16 x 2.75

$4.49

$

In Stock, Qty 10

0

11

Cub Cadet 01002656-0637

Panel Seat

$

$

Not available

12

Cub Cadet 01002751

Spacer, .39ID x .63OD x 1.75LG

$13.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Lg
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 01004727-0637

Support, Seat Bracket

$

$

Not available

15

Cub Cadet 01004992

Label, Belt Routing and Lubrication

$24.99

$

In Stock, only 3 left!

0

16

Cub Cadet 01006997

Shoulder Bolt, 1/4x1/4

$

$

Not available

17

Cub Cadet 01007122P

Hex Cap Screw, 5/16-18 x 2.5

$

$

Not available

18

Cub Cadet 01008140P

Deck Lift Spring, Left Hand

$32.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01008918-0637

Floor Plate Assembly

$

$

Not available

20

Cub Cadet 01009191-0637

Foot Pedal Latch Lever Assembly

$

$

Not available

21

Cub Cadet 01009193-0637

Rate Plate Pad

$

$

Not available

22

Cub Cadet 01009194P

Rate Plate On/Off Cable

$89.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01009198-0637

Foot Pedal Latch Assembly

$

$

Not available

24

Cub Cadet 01009377

Nut, w/ Star Washer, 10-24

$5.99

$

In Stock, only 1 left!

0

25

Cub Cadet 01009816P

Light Indicator

$38.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01009924-0637

Light Indicator Bracket

$

$

Not available

27

Cub Cadet 00060033

Washer, 1/4, SS
(Superseded to 736-05152)

$7.49

$

Usually ships in 3-6 days

0
