56A35D4K750 - Cub Cadet Tank Ride-On Sprayer Spreader Right Hand Control Assembly Parts Diagram

Tank Ride-On Sprayer Spreader

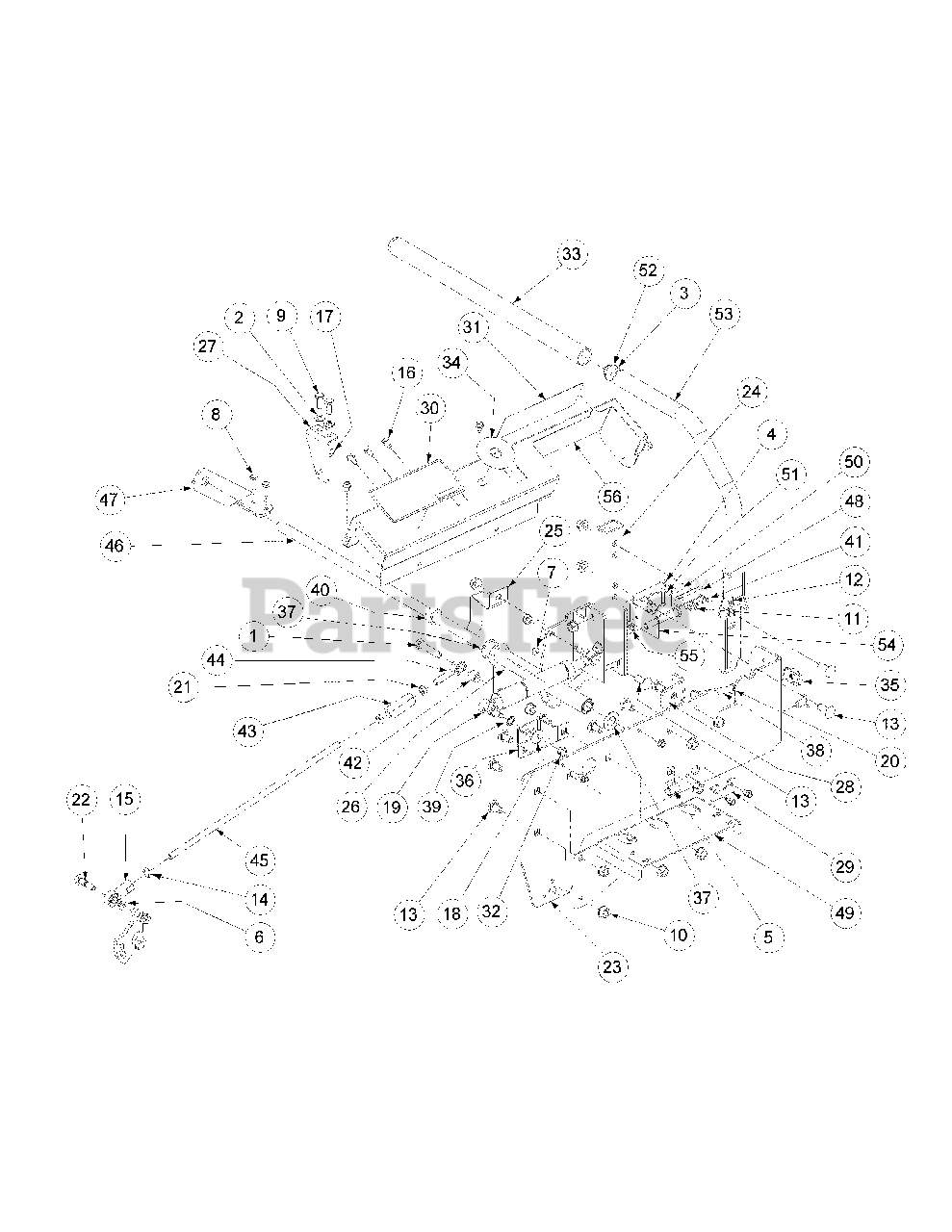

Right Hand Control Assembly Parts Diagram

  • Title

1

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

$6.49

$

In Stock, Qty 9

0

2

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

3

Cub Cadet 01004340

Lock Washer, Ignition Switch

$

$

Not available

4

Cub Cadet 00011861

HHCS, 3/8-16, 2.5
(Superseded to 710-0859)

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet 726-3008

Clip, Heat Shield

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00012168

5/16, Lock Washer

$

$

Not available

7

Cub Cadet 737-3004

Grease Fitting, 90°, 1/4-20

$10.99

$

In Stock, Qty 5

0

8

Cub Cadet 710-0642

Screw, TT, 1/4-20, 0.75, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 00013406

Hex, Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 936-0463

Flat Washer, 1/4"
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 01009988

Split Conduit, 1/4 Poly

$

$

Not available

13

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 912-3001

Hex Jam Nut, 3/8-24

$6.49

$

In Stock, Qty 20+

0

15

Cub Cadet 723-04080

B/Joint, 3/8-24, Right Hand Female

$38.99

$

In Stock, only 2 left!

0

16

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

19

Cub Cadet 01007565

Cylinder Return to Neutral Kit

$

$

Not available

20

Cub Cadet 01002511

Nut, 3/8-16, Jam

$5.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01002986

Nut, 3/8-24, Jam, LH Third

$6.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 01002988

Screw, Shoulder Control Rod
(Superseded to 738-05006)

$8.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01004888

Control Panel Mount, RH

$

$

Not available

24

Cub Cadet 01010176

Mounting Handle

$

$

Not available

25

Cub Cadet 01003011

Lever, Safety Switch

$34.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01003045

Hub Assy, Control RH Bearing
(Superseded to 01003045P)

$

$

Not available

26

Cub Cadet 01004265

Bearing

$19.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01003114-0637

Switch Mounting Bracket, Lapbar

$29.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01003199

Stop, RH

$

$

Not available

29

Cub Cadet 01003591

Holder Shaft, Park Brake

$34.99

$

In Stock, only 1 left!

0

30

Cub Cadet 01003449

Decal , Right Hand Console

$32.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 01003451

Decal Right Hand Control

$

$

Not available

32

Cub Cadet 01003561

Nut, Hex, Center Lock, M8

$3.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 01003715

Grip, 1.0

$

$

Not available

34

Cub Cadet 01003857

Label, Ingnition, 2.5 Diameter

$

$

Not available

35

Cub Cadet 01003947

U-Nut, 3/8-16, .75

$7.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 01004000-0637

Bracket Assembly, Mount Dampener

$

$

Not available

37

Cub Cadet 01004003

Flat Washer, 5/8 Nylon
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 01004127

HHCS, 3/8-16, 3.00
(Superseded to 710-0521)

$4.99

$

In Stock, Qty 15

0

39

Cub Cadet 01005851

External Tooth Washer, 3/8
(Superseded to 736-0148)

$3.49

$

In Stock, Qty 12

0

40

Cub Cadet 01006350

Shaft Collar

$23.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 01006997

Shoulder Bolt, 1/4x1/4

$

$

Not available

42

Cub Cadet 01007312

Spacer, .385ID x .625 OD x 50 Lg

$21.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 01007734

Turnbuckle

$31.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 01008367

B/Joint, 3/8-24, LH Male

$43.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 01008518

Rod Connector 3/8 OD x 14.125

$

$

Not available

46

Cub Cadet 01008524

Shaft Mounting Belle Crank

$62.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 01008844-0637

Lapbar Shaft Support

$

$

Not available

48

Cub Cadet 01009482

Grip, Speed Lever

$

$

Not available

49

Cub Cadet 01008985

Valve Control Mounting Plate

$

$

Not available

50

Cub Cadet 01008930

Plunger, 1/4-20 x 3/4

$

$

Not available

51

Cub Cadet 01008993

Speed Control Adjuster Assembly, RH

$

$

Not available

52

Cub Cadet 01009189

Lapbar Switch, On/Off

$207.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 01010194-0637

Lapbar Handle Weldment, RH

$

$

Not available

54

Cub Cadet 01009199

Speed Control Detent Plate

$

$

Not available

55

Cub Cadet 01009377

Nut, 10-24, w/Star Washer

$5.99

$

In Stock, only 1 left!

0

56

Cub Cadet 01004890

Control Panel, RH
(Superseded to 01006343-4021)

$111.99

$

Usually ships in 3-6 days

0
