56A40-SH750 - Cub Cadet Commercial SS Rotary Spreader Optional Remote Deflector Parts Diagram

Commercial SS Rotary Spreader

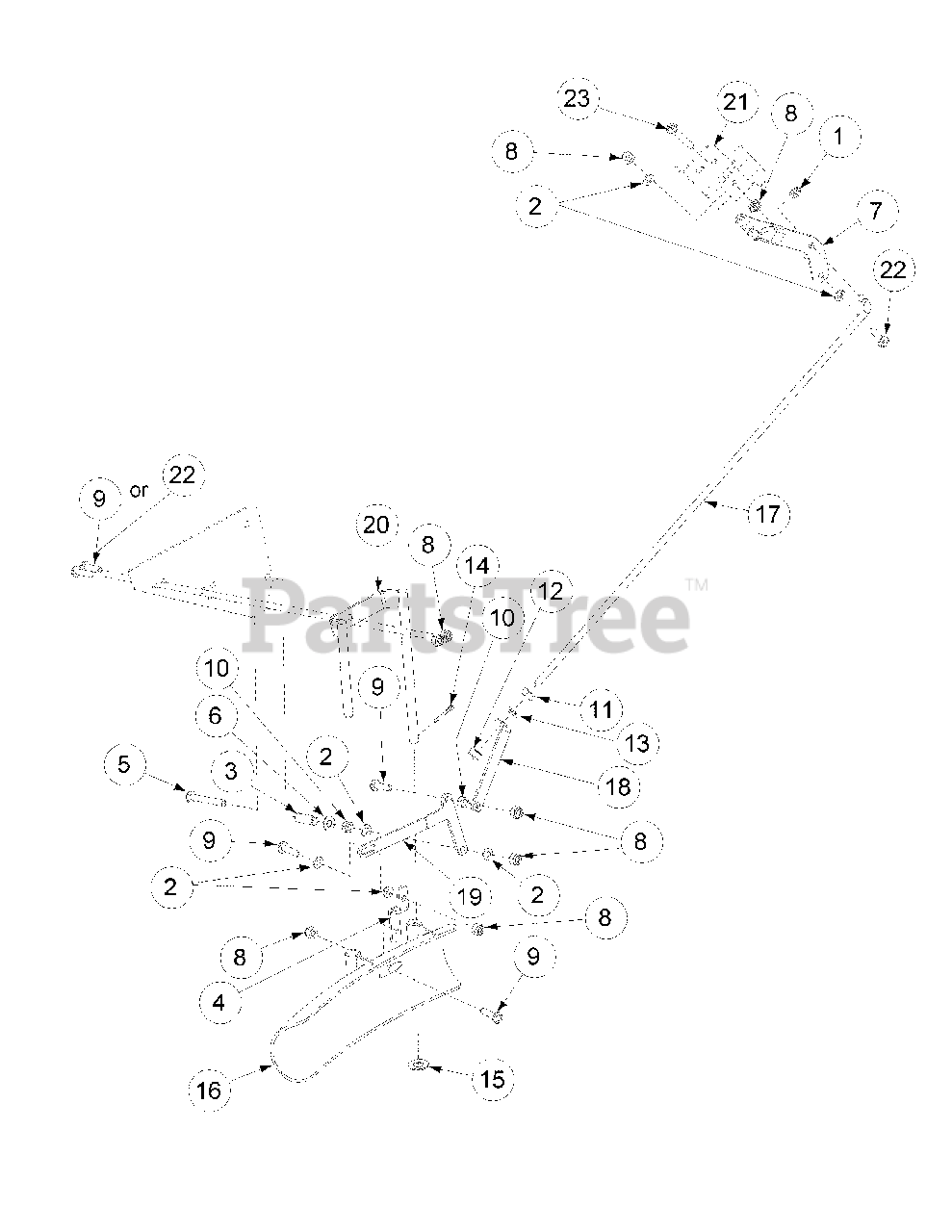

Optional Remote Deflector Parts Diagram

  • Title

1

Cub Cadet 00010171

Retainer "C" Clip
(Superseded to 726-05073)

$4.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 00018628

Nylon Washer, 1/4

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00030503

Deflector Arm Mount Spacer

$32.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 00035030

Offset Bracket Deflector

$26.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00060029

Machine Screw, 1/4-20x2

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 00060033

Flat Washer, 1/4"
(Superseded to 736-05152)

$7.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 00060034

Operating Lever and Rubber
(Superseded to 680-00406)

$30.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-0324

Lock Nut, Nylon Insert, 1/4

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 00060057

Machine Screw Pan Head, 1/4-20x7/8

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 00060059

Hex Nut, 1/4-20

$2.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 00060071

Hex Lock Nut, 5/16-18
(Superseded to 712-05158)

$3.99

$

In Stock, only 2 left!

0

12

Cub Cadet 912-0429

Nut, Nylon Insert, 5/16-18
(Superseded to 712-0429)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 00060073

Lock Washer, 5/16

$

$

Not available

14

Cub Cadet 00061052

Cotter Pin, 1/8 x 1

$4.49

$

In Stock, only 1 left!

0

15

Cub Cadet 00061053

Flat Washer, 3/8

$3.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 00061066

Deflector Tube, Plastic Only

$18.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01006251

Deflector Actuator Rod

$81.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01006252

Lever Rod Deflector Bracket

$22.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01006253

Tube Bracket Mount, Lever, Deflector

$21.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01006254

Deflector Tube Mount

$85.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 00030418

Remote Bracket

$42.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 00031168

HHCS, 1/4-20 x .75, SS
(Superseded to 710-06431)

$4.49

$

In Stock, only 1 left!

0

23

Cub Cadet 00060047

Machine Screw, 1/4-20 x 1.50, SS

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 02004519

Complete Remote Deflector Kit

Note: Not shown

$

$

Not available
