56A443TH750 - Cub Cadet XP Stand-On Spreader (2008 & Before) Sulky Assembly Parts Diagram

XP Stand-On Spreader

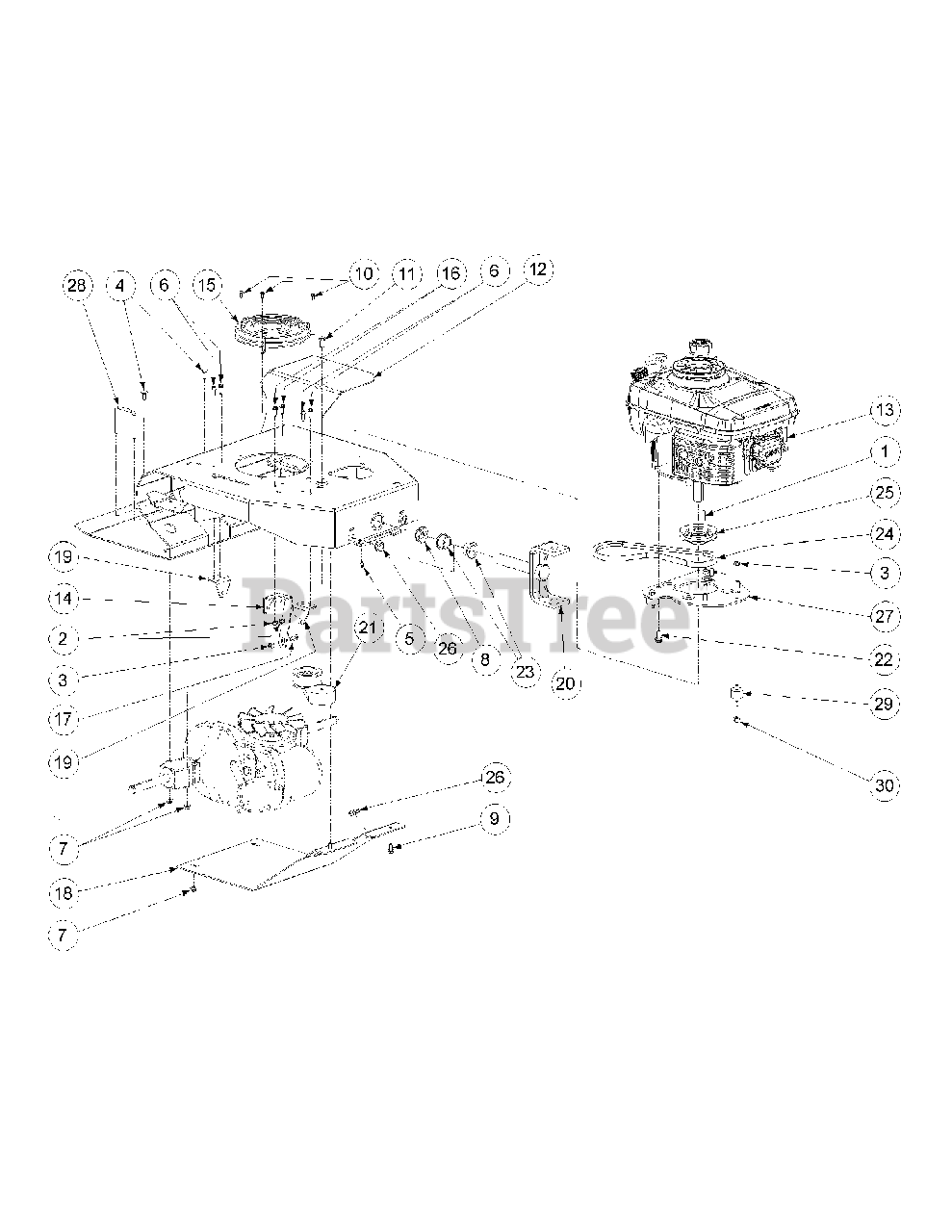

Sulky Assembly Parts Diagram

  • Title

1

Cub Cadet 00006246

Key, 3/16" x 1"

$

$

Not available

2

Cub Cadet 00012152

Nut, 1/4-20

$3.99

$

In Stock, only 1 left!

0

3

Cub Cadet 00012165

Nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00020508

Carriage Bolt, 5/16-18 x .75

$6.49

$

In Stock, only 3 left!

0

5

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.49

$

In Stock, Qty 16

0

6

Cub Cadet 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3004A

Nut, 5/16-18, Hex Flange Lock

$3.49

$

In Stock, Qty 20+

0

8

Cub Cadet 01000678

Jam Nut, 1.0-14
(Superseded to 712-05008)

$13.99

$

In Stock, Qty 5

0

9

Cub Cadet 710-0604A

Self Tapping Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 01001864

Self Tapping Screw, 10-24 x .50
(Superseded to 1767754)

$

$

Not available

11

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16 x .75

$3.99

$

In Stock, Qty 17

0

12

Cub Cadet 01007933-0637

Fottstand Weldment

$

$

Not available

13

Cub Cadet 01007972P

Engine, Kawasaki

$1069.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01007976-0637

Torsion Bar

$

$

Not available

15

Cub Cadet 01008016

Fan Guard

$29.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01008763

Hex Cap Screw, 1/4-20 x .75

$

$

Not available

17

Cub Cadet 01008764

Hex Cap Screw, 5/16-18 x .75

$

$

Not available

18

Cub Cadet 01008869-0637

Transmission Skid Plate

$

$

Not available

19

Cub Cadet 01008870-0637

Cable Mounting Bracket

$

$

Not available

20

Cub Cadet 01008877-0637

Clevis Pin Pivot Weldment

$110.99

$

In Stock, Qty 7

0

21

Cub Cadet 01009168

Idler Arm

$131.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01009243

Self Tapping Screw, 3/8-16 x .875

$13.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01009260

Flange Bushing

$7.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 01009302

V-Belt, A-Section
(Superseded to 01009302P)

$34.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01009314

Cast Pulley

$108.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01009366

Rubber Grommet

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01009451-0637

Engine PLate

$

$

Not available

28

Cub Cadet 01009457

U-Bolt

$

$

Not available

29

Cub Cadet 01009464

Rubber Engine Mounting

$23.99

$

In Stock, only 3 left!

0

30

Cub Cadet 02004352

Serrated Flange Nut, 5/16-18

$3.99

$

Usually ships in 3-6 days

0
